CDM324 Microwave Body Radar Induction Switch Sensor

CDM324 Microwave Body Radar Induction Switch Sensor
CDM324 Microwave Body Radar Induction Switch Sensor
CDM324 Microwave Body Radar Induction Switch Sensor
CDM324 Microwave Body Radar Induction Switch Sensor
CDM324 Microwave Body Radar Induction Switch Sensor
CDM324 Microwave Body Radar Induction Switch Sensor
CDM324 Microwave Body Radar Induction Switch Sensor
CDM324 Microwave Body Radar Induction Switch Sensor

CDM324 Microwave Body Radar Induction Switch Sensor
₹699

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹6 FlyRobo Cashback.
  • SKU: FR-01-158

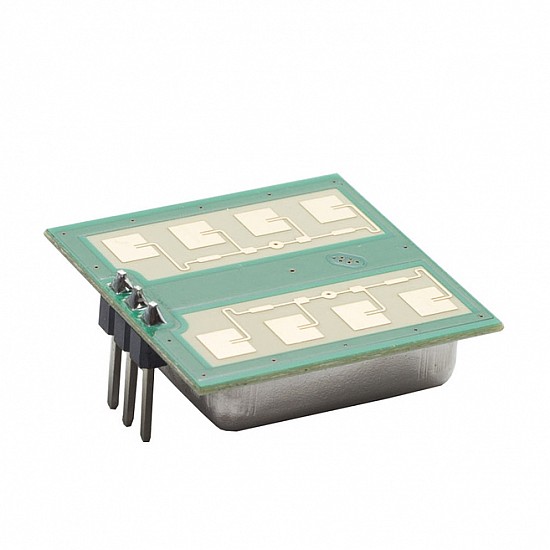

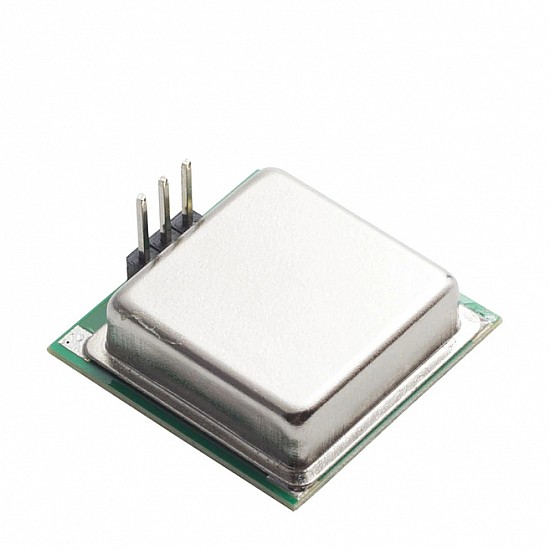

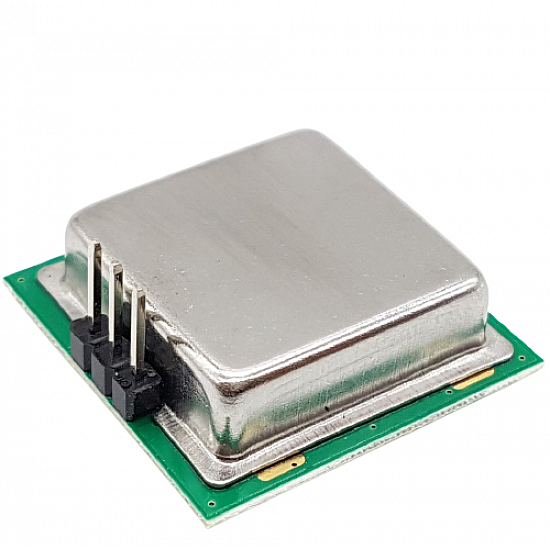

CDM324 Microwave Body Radar Induction Switch Sensor is a 24 GHz band single-channel radar transceiver. These Radar sensors are used for detecting, locating, tracking, and recognizing objects of various kinds at considerable distances. It operates by transmitting electromagnetic energy toward objects, commonly referred to as targets, and observing the echoes returned from them.

Features:

  • Small in size and easy to install
  • High sensibility,high flexibility,low cost,operating distance
  • It provides various frequency range standards
  • It is mainly used for velocity information detection of short-range targets.

Package Includes:

1 x CDM324 Microwave Body Radar Induction Switch Sensor.

Technical
Model

CDM324

Operating Current

30mA, max: 40mA

Operating Temperature Range

-20°C to 60°C

Operating Voltage

5V

Output Power

16dbm

Transmitting frequency

24 GHz

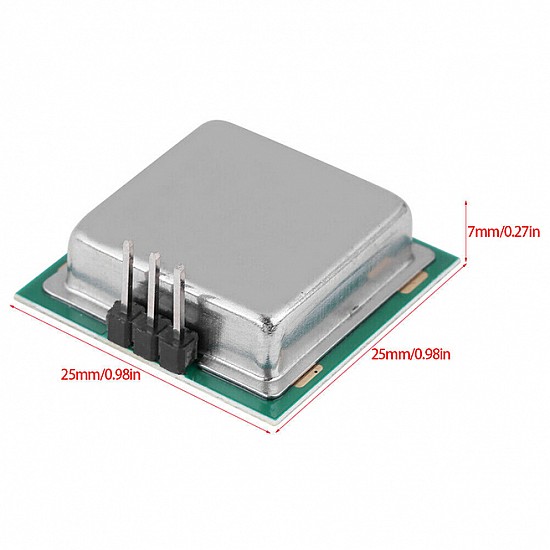

Length

25 mm

Height

7 mm

Width

25 mm
