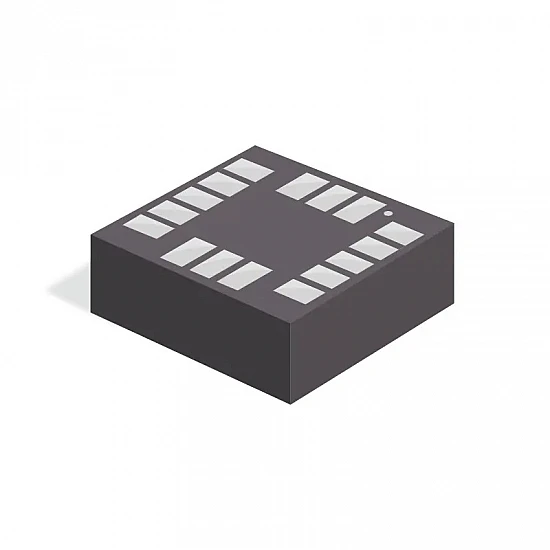

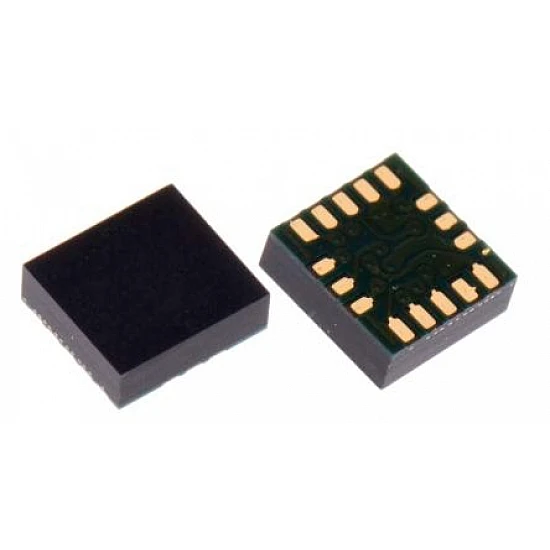

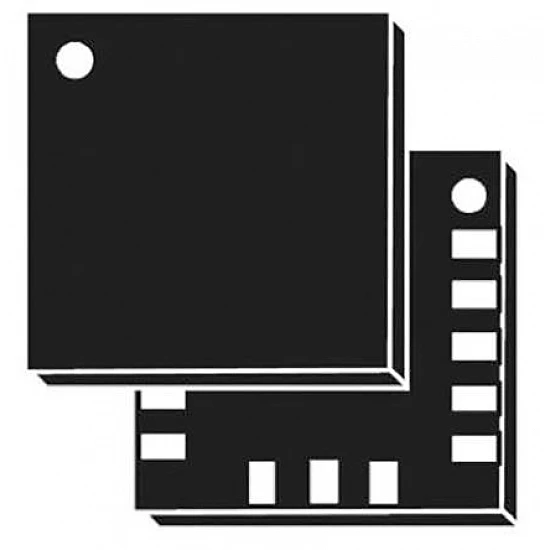

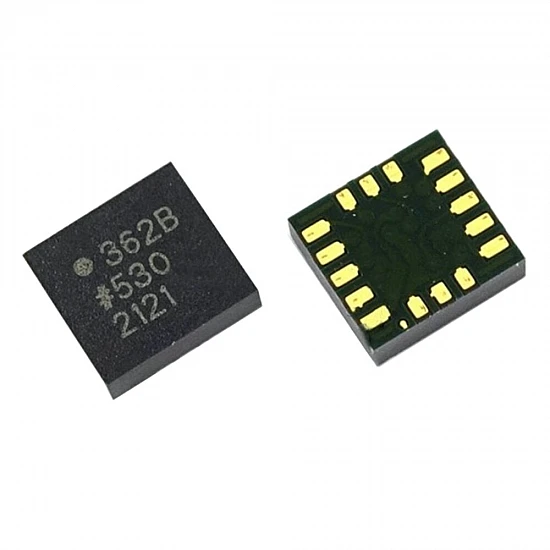

ADXL362BCCZ-RL Ultra-Low Power 3-Axis MEMS Accelerometer LGA-16

The ADXL362BCCZ-RL is a groundbreaking ultra-low power, 3-axis MEMS accelerometer designed for energy-sensitive applications. It stands out by consuming less than 2 μA at a 100 Hz output data rate and a mere 270 nA in its motion-triggered wake-up mode. Unlike other accelerometers, the ADXL362 does not alias input signals by under-sampling; it samples the full bandwidth of the sensor at all data rates. This device includes a 12-bit output resolution and integrated features such as a 512-sample FIFO buffer and autonomous motion detection logic. Housed in a compact LGA-16 package, it is the ideal choice for wearable devices, hearing aids, and remote wireless sensor nodes where battery life is the primary design constraint.

Features:

• Extreme Power Efficiency: Industry-leading low current draw for extended battery life in portable electronics.
• Motion-Activated Switching: Built-in activity/inactivity monitoring for automated system wake-up.
• High-Resolution Sensing: 12-bit digital output with user-selectable g-ranges (±2g, ±4g, ±8g).
• Deep FIFO Buffer: 512-sample internal memory reduces host processor overhead.
• Wide Supply Range: Operates from 1.6V to 3.5V, compatible with common coin cell batteries.
• Standard SPI Interface: Robust 4-wire serial communication for easy integration with microcontrollers.

Package Includes:

1 x LGA-16 ADXL362BCCZ-RL ADXL362 362B package LGA16 3-axis MEMS accelerometer
