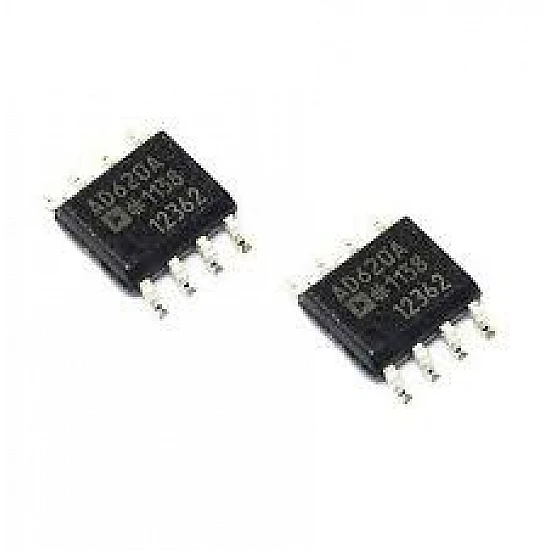

AD620ARZ AD620 SOP-8 Low-Drift Instrumentation Amplifier IC

The AD620 is a low-cost, high-accuracy instrumentation amplifier that requires only one external resistor to set gains from 1 to 10,000. This makes it incredibly easy to use for a wide range of applications. The AD620 comes in an 8-lead SOIC package, which is smaller than discrete designs and offers lower power consumption (1.3 mA max supply current), making it an excellent choice for battery-powered and portable equipment.

Key Features:

• High Accuracy: With a maximum nonlinearity of 40 ppm, a low offset voltage of 50 µV max, and an offset drift of 0.6 µV/°C max, the AD620 is ideal for precision data acquisition systems.
• Low Noise: It features low input voltage noise of 9 nV/√Hz at 1 kHz and 0.28 µV p-p noise in the 0.1 Hz to 10 Hz band, making it suitable for preamplifier applications.
• Wide Supply Range: Operates with a power supply range from ±2.3 V to ±18 V.
• Excellent AC Specifications: The device has a 120 kHz bandwidth (at G=100) and a settling time of 15 µs to 0.01%.

Common Applications:

• Weigh scales
• ECG and medical instrumentation
• Transducer interfaces
• Data acquisition systems
• Industrial process controls
• Battery-powered and portable equipment


  Package Include:

• 1 X AD620ARZ AD620 SOP-8 Low-Drift Instrumentation Amplifier IC
