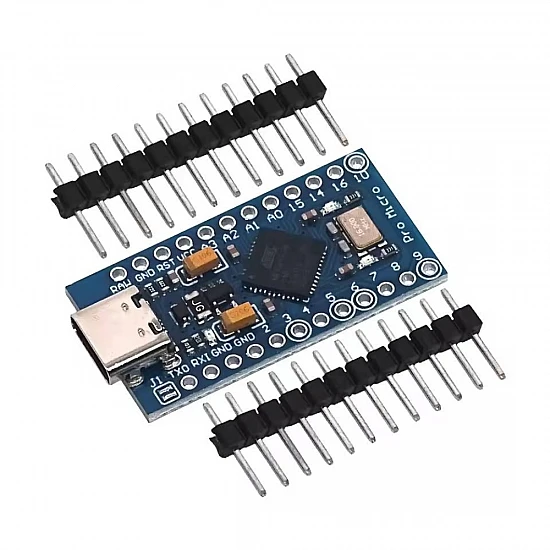

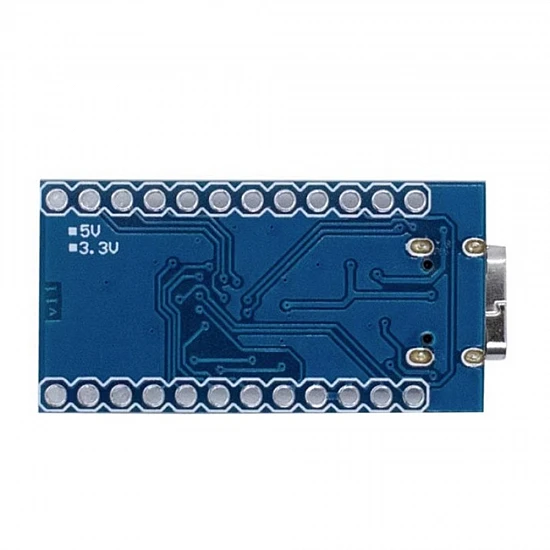

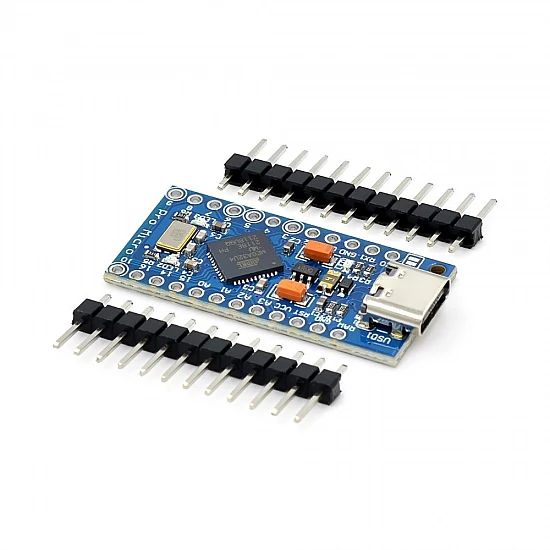

5V 16MHz Pro Micro ATmega32U4 Type-C Board

The Pro Micro ATmega32U4 Type-C Development Board is an ultra-compact, high-performance microcontroller board designed for makers, students, and engineers. Powered by the versatile ATmega32U4 chip running at 16MHz and 5V, this board features an onboard USB transceiver, eliminating the need for an external USB-to-serial interface. This native USB capability allows the board to act as a USB HID (Human Interface Device) such as a keyboard, mouse, or MIDI controller, making it the ultimate choice for custom DIY projects.

Equipped with a modern, robust Type-C USB connector, this Pro Micro board offers improved durability and reversible plug orientation compared to older micro-USB variants. It is fully compatible with the Arduino IDE, allowing you to easily upload code, utilize standard libraries, and interface with a wide range of sensors, displays, and actuators. Whether you are building a custom mechanical keyboard, a macro pad, or a compact IoT node, this board delivers reliable performance in a tiny footprint.

Features:

• ATmega32U4 Microcontroller: High-performance 8-bit AVR microcontroller with native USB support.
• Type-C USB Interface: Modern, durable, and reversible Type-C port for programming and power.
• USB HID Emulation: Can be programmed to act as a native USB keyboard, mouse, or joystick.
• Compact Form Factor: Easily fits onto breadboards or custom PCBs for space-constrained designs.
• Rich I/O Options: Features 12 digital I/O pins, including 5 PWM channels and 4 analog inputs (10-bit ADC).
• Onboard Voltage Regulator: Accepts raw DC input voltage up to 9V on the RAW pin to power the board.

Package Includes:

1 x Pro Micro ATmega32U4 Type-C Board 5V 16MHz

2 x 12-Pin Male Header Strips
