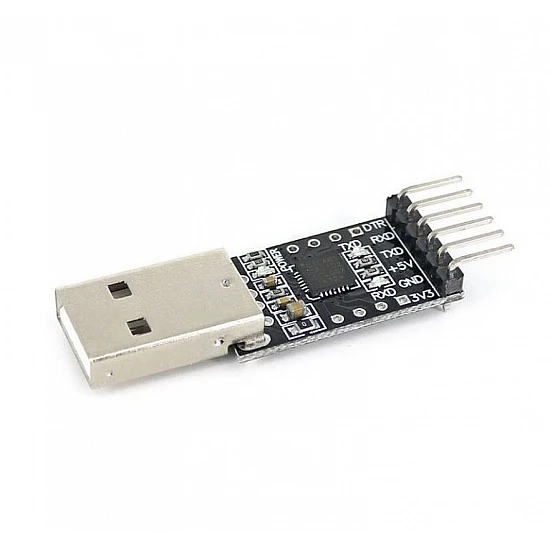

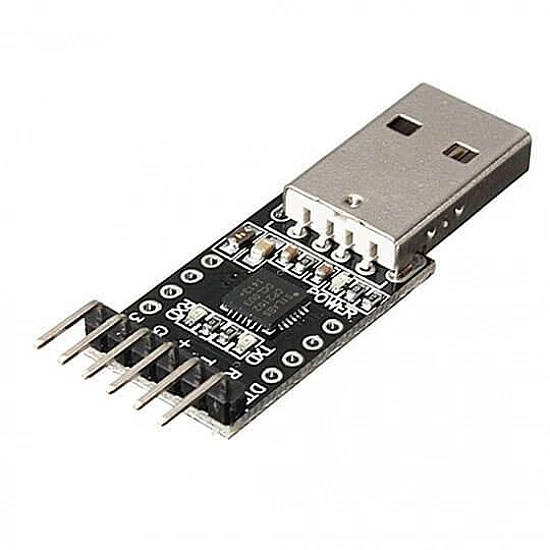

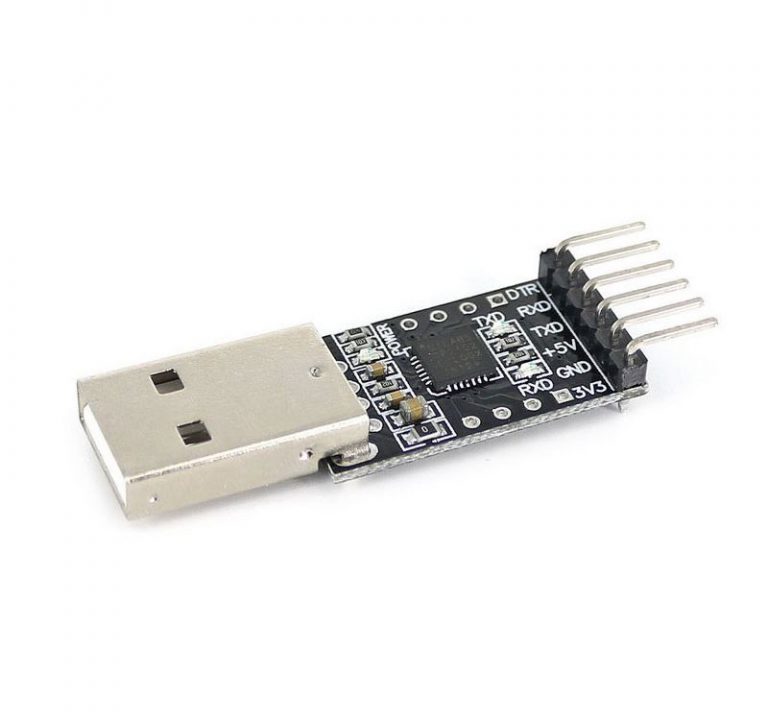

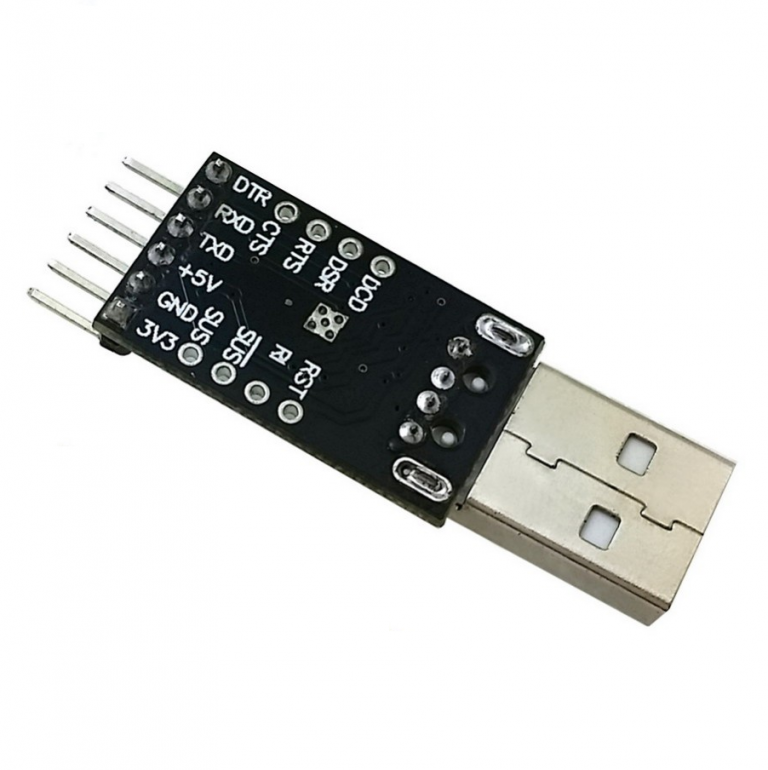

CP2102 (6-pin) USB 2.0 to TTL UART serial converter

CP2102(6-pin) USB 2.0 to TTL UART serial converter module is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus and will appear as a standard COM port.

ThisCP2102 doesn’t require any external oscillator, it onboard-board voltage regulator, and it even uses a reprogrammable internal EEPROM for the device description. The full hardware UART has flow control for baud rates from 300bps to 921600bps.

This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.

Features :

  • Brand new and high quality
  • Included USB transceiver, without external circuit device
  • Includes a clock circuit and power-on reset circuit
  • With 3.3V and 5V dual power output
  • With three LEDs: power indicator, data reception indicator, the data transmission indicator, working status
  • Meet the USB2.0 specification requirements
  • SUSPEND pin supports USB suspend state
  • With self-recovery fuse. In the event of the accidental short circuit, it can effectively protect your computer USB port and Downloader
  • With reset signal output, etc. directly to the Arduino board Pro mini download!
  • Asynchronous serial data bus compatible with all handshake and modulation controller interface signals
  • The supported data format is 8 data bits, 1 stop bit and parity bits
  • Connotation 512 byte receive buffer and 512 bytes transmit buffer
  • Supports hardware handshaking or X-ON/X-OFF

Package Includes :

1 x CP2102 (6-pin) USB 2.0 to TTL UART serial converter
