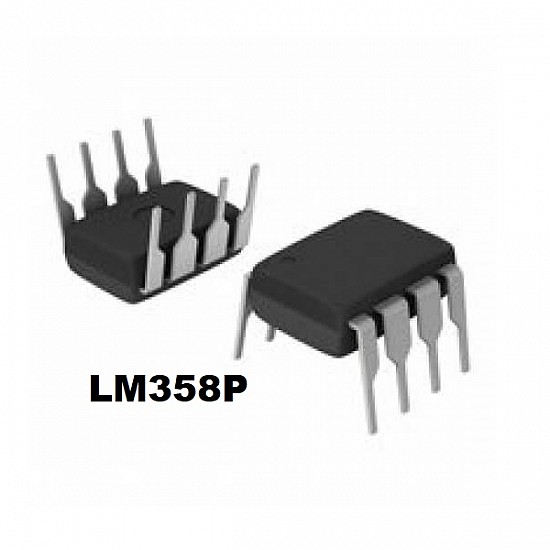

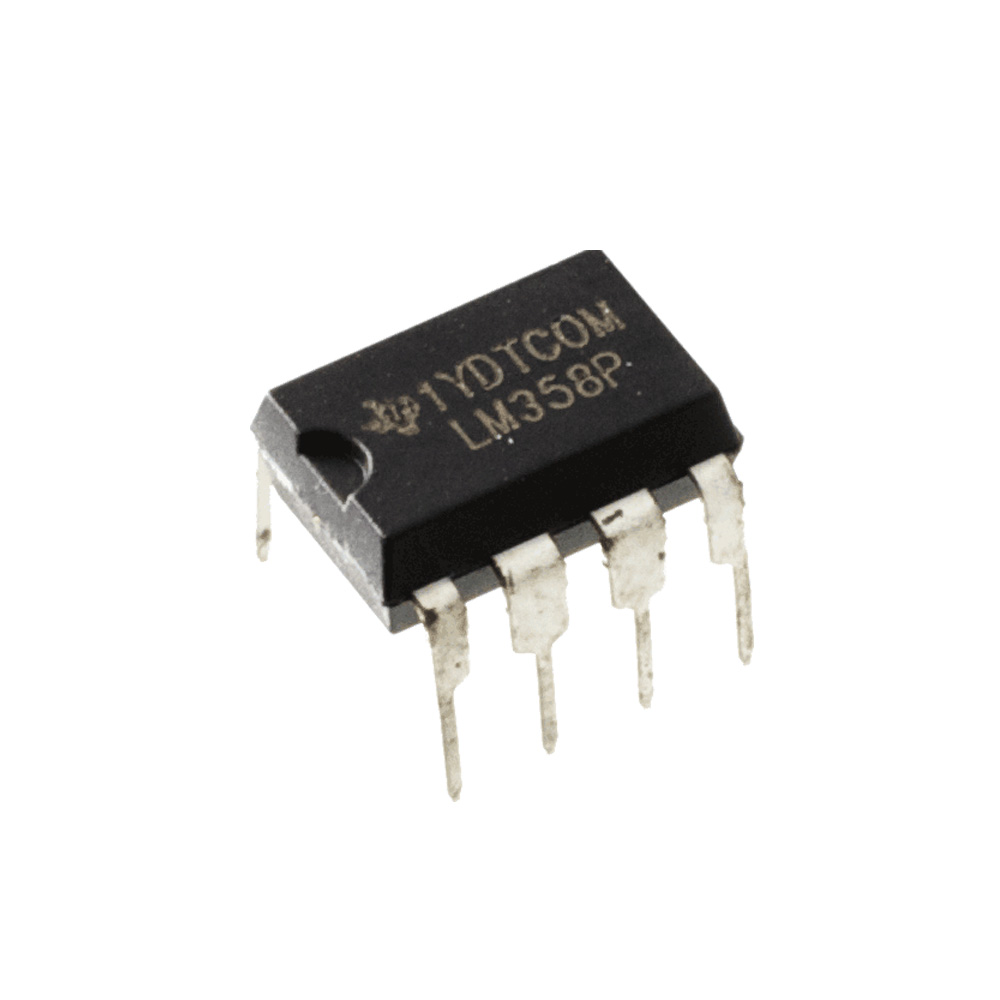

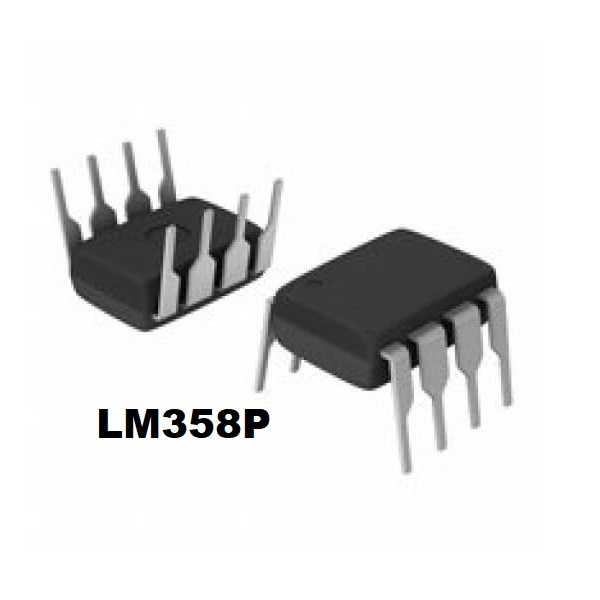

LM358 IC Low Power Dual Operational Amplifier Op Amp IC

LM358 IC Low Power Dual Operational Amplifier Op Amp IC - Other - Arduino
LM358 IC Low Power Dual Operational Amplifier Op Amp IC - Other - Arduino
LM358 IC Low Power Dual Operational Amplifier Op Amp IC - Other - Arduino
LM358 IC Low Power Dual Operational Amplifier Op Amp IC - Other - Arduino
LM358 IC Low Power Dual Operational Amplifier Op Amp IC - Other - Arduino
LM358 IC Low Power Dual Operational Amplifier Op Amp IC - Other - Arduino
LM358 IC Low Power Dual Operational Amplifier Op Amp IC
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹9

(inc GST)

  • Stock: In Stock
  • SKU: FR-05-607
    10 or more ₹8
    50 or more ₹7
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

DESCRIPTION:-

This IC LM358 is 8-pin IC. These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages. Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground. Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904). Open-Loop Differential Voltage Gain is 100 dB.

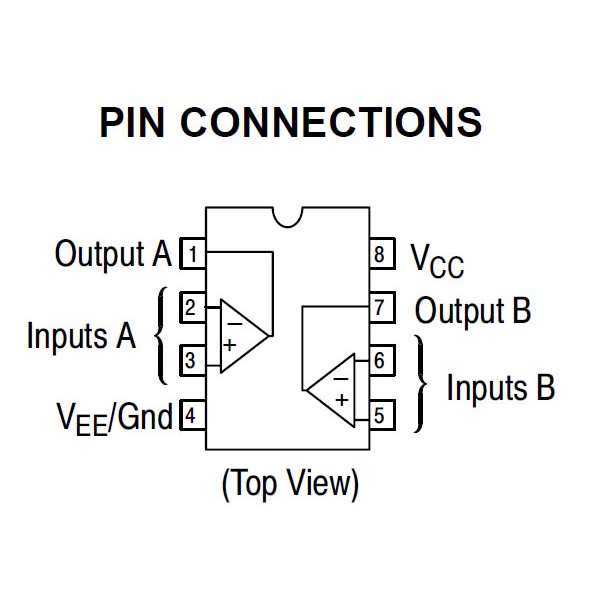

LM358 Pin Configuration  :-

Pin Number

Pin Name

Description

1

OUTPUT1

Output of Op-Amp 1

2

INPUT1-

Inverting Input of Op-Amp 1

3

INPUT1+

Non-Inverting Input of Op-Amp 1

4

VEE, GND

Ground or Negative Supply Voltage

5

INPUT2+

Non-Inverting Input of Op-Amp 2

6

INPUT2-

Inverting Input of Op-Amp 2

7

OUTPUT2

Output of Op-Amp 2

8

VCC

Positive Supply Voltage




Datasheet: Download

LM358 Dual Op-Amp IC features and specifications  :-







  • Integrated with two Op-Amps in a single package
  • Wide power supply Range
  • Singe supply – 3V to 32V
  • Dual supply – ±1.5V to ±16V
  • Low Supply current – 700uA
  • Single supply for two op-amps enables reliable operation
  • Short circuit protected outputs
  • Operating ambient temperature – 0˚C to 70˚C
  • Soldering pin temperature – 260 ˚C (for 10 seconds – prescribed)
  • Available packages: TO-99, CDIP, DSBGA, SOIC, PDIP,  DSBGA
  •





Package Includes:-
  • 1 X  LM358 IC
