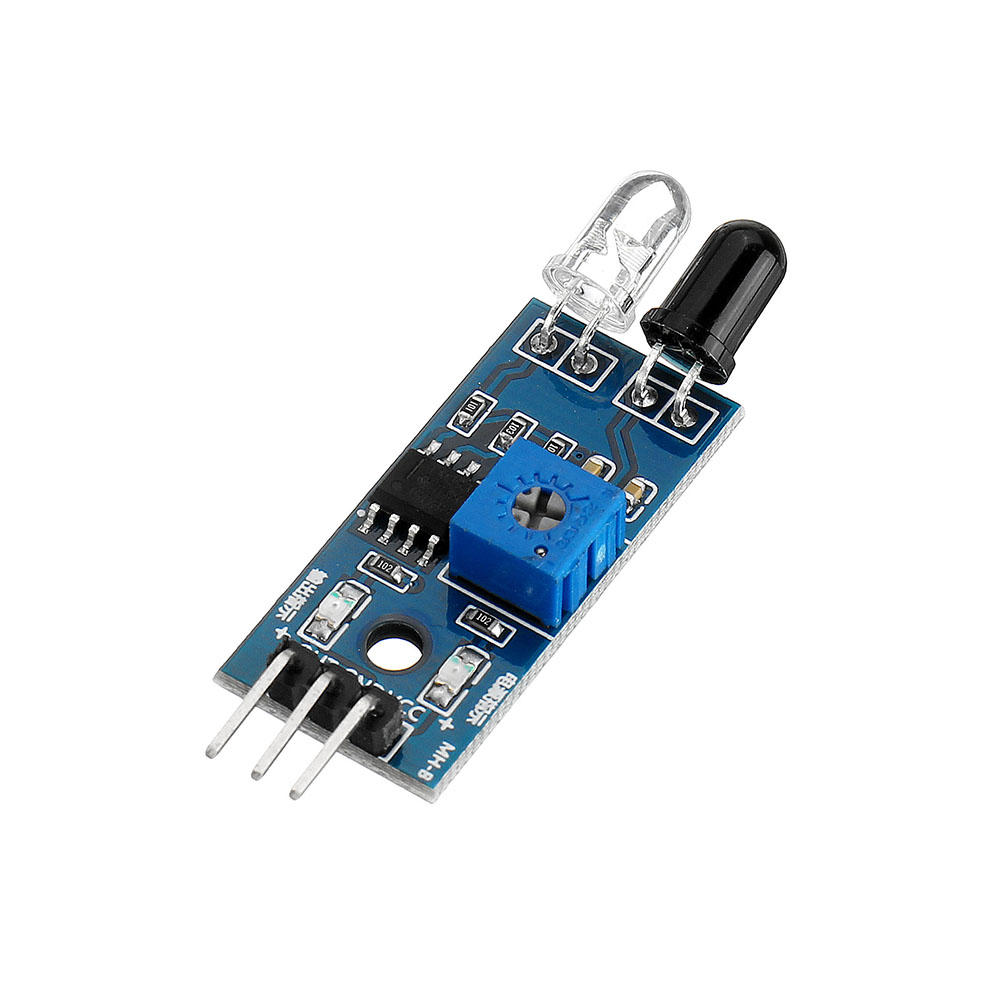

Infrared Line Following and Obstacle Avoidance Sensor For Arduino Smart Car Robot

Infrared Line Following and Obstacle Avoidance Sensor For Arduino Smart Car Robot - Sensor - Arduino
-49 %

Infrared Line Following and Obstacle Avoidance Sensor For Arduino Smart Car Robot
₹35
₹69

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-634

The sensor module light is adaptable to the environment, with a working voltage of 3.3 V to 5 V. It has a pair of infrared transmitting and receiving tubes when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving by the tube.

After the comparator circuit processing, a green indicator will light up, at the same time the signal output interface output a digital signal (a low-level signal), can adjust the detection distance through the potentiometer knob, effective distance range 2 ~ 80 cm, easy to assemble and use. So it can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and so on many occasions.

Features:

  • Comparator chip: LM393
  • Detection angle: 35 °
  • Onboard detection indication
  • The effective distance range of 2cm to 80cm
  • A preset knob to fine-tune distance range
  • There is an obstacle, the green indicator light on the circuit board
  • TTL output is high whenever it senses an obstacle
  • 3mm screw holes for easy mounting
  • 3-5V DC power supply module can be used

Applications:

  • Obstacle detector sensor
  • line follower sensor
  • Wall follower sensor


Package included :

1 x Arduino obstacle avoidance sensor ( IR Sensor)

Technical
IC Chip

LM393

Detecting Angle

35 °

Detecting range

2cm to 80cm

Operating Voltage

3.6 ~ 5 V

Length

4.8 cm

Height

0.8 cm

Width

1.4 cm
