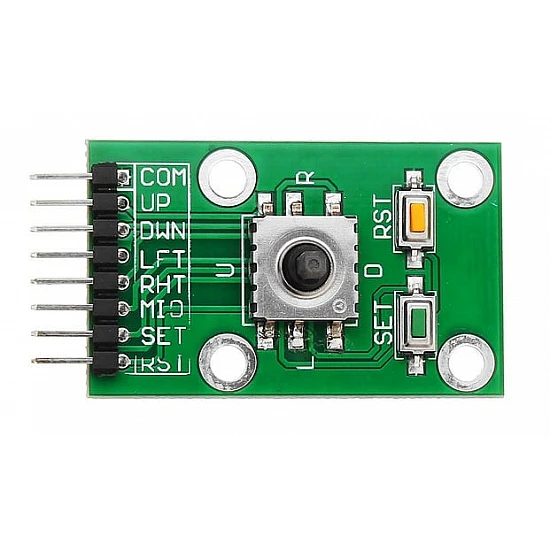

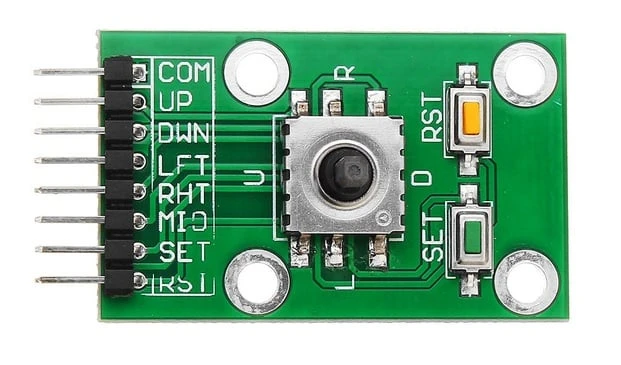

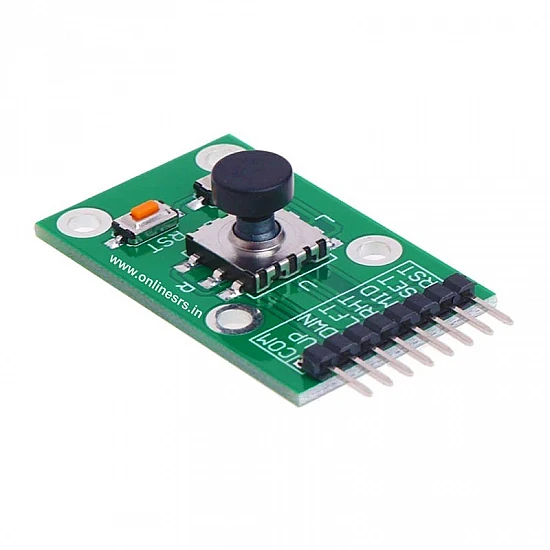

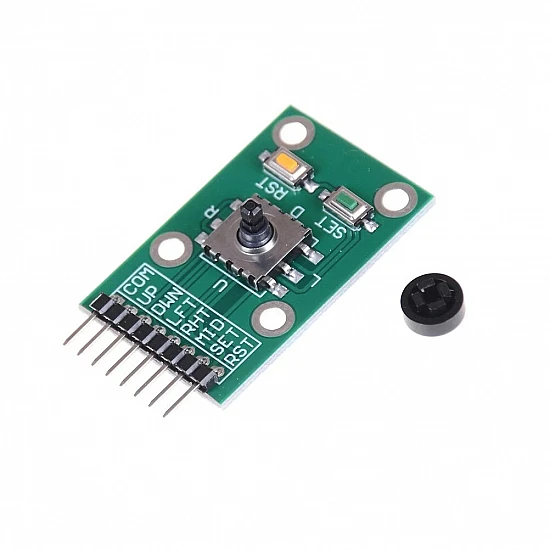

Five Direction Navigation Button Module 5D Rocker Joystick

Five Direction Navigation Button Module 5D Rocker Joystick
Five Direction Navigation Button Module 5D Rocker Joystick
Five Direction Navigation Button Module 5D Rocker Joystick
Five Direction Navigation Button Module 5D Rocker Joystick
Five Direction Navigation Button Module 5D Rocker Joystick
Five Direction Navigation Button Module 5D Rocker Joystick
Five Direction Navigation Button Module 5D Rocker Joystick
₹99

(inc GST)

  • Stock: In Stock
  • SKU: FR-05-899
    10 or more ₹89
    50 or more ₹84

We are proud to present the ultimate 5D Rocker Joystick for smooth control and navigation: the Five Direction Navigation Button Module. With its dynamic five-way directional input and precision and versatility design, this small module makes it easy to navigate in any direction.

Utilize our Five Direction Navigation Button Module to enhance your control experience. This small solution combines durability, precision, and versatility to meet all of your directional input needs. Take control of your projects like never before by placing your order now!



Pin Details:

  • COM (Common end): Connect to either VCC or GND on the MCU development board.
  • UP (Up direction button): Connect to an IO pin on the MCU.
  • DWN (Down direction button): Connect to an IO pin on the MCU.
  • LFT (Left direction button): Connect to an IO pin on the MCU.
  • RHT (Right direction button): Connect to an IO pin on the MCU.
  • MID (Middle direction button): Connect to an IO pin on the MCU.
  • SET (Set button): Connect to an IO pin on the MCU.
  • RST (Reset button): Connect to an IO pin on the MCU.

Features:

  • 5D Rocker Joystick Module
  • Five-way directional control
  • Compact and versatile design
  • Ergonomic and comfortable grip
  • Durable construction for long-lasting use
  • Easy integration into various projects
  • User-friendly design with clear labeling
  • Comprehensive user manual included
  • Mounting hardware for secure installation
  • Pre-assembled wiring harness for quick connections
  • Compatibility information for various platforms
  • Accessible customer support for assistance

Package Includes:

1 x Five Direction Navigation Button Module 5D Rocker Joystick

Technical
IO Port

7

Operating Temperature Range

-40℃ to 85℃

Operating Voltage

2.0V-9.0V

Size

25mmx41mm

Questions1 Answers1 | Expand All
Does this give analog or digital signal ?
ritesh
  • It will provide Analog Signal. Because no any Ic are showing in the photo and it will use potentiometers, hence it is not possible to provide digital signal.
    Rakesh[ 11/04/2024 ]
    Was this answer helpful?-1
Showing 1 to 1 of 1 (1 pages)
