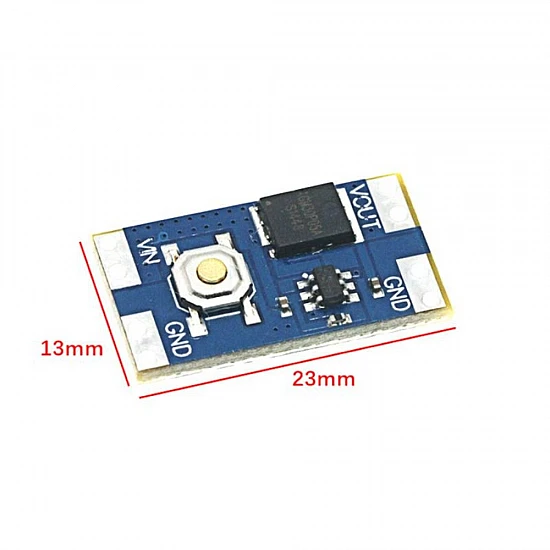

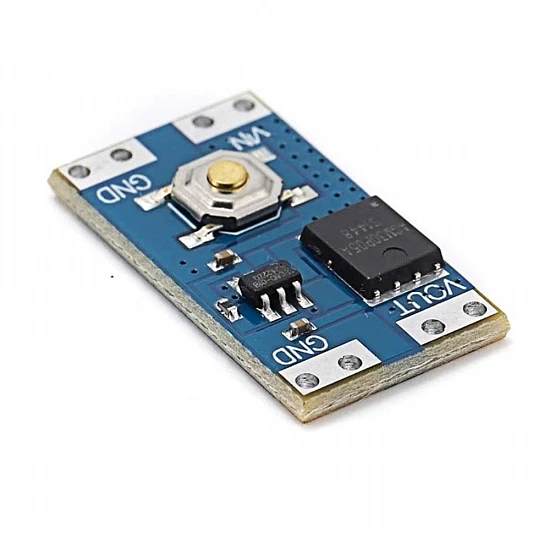

10A Single Bond Button Switch Module - Low Power

The 10A Single Bond Button Switch Module is a highly efficient, low-power latching switch designed for controlling high-current electronics without the need for a bulky mechanical relay. Built around a robust AGM30P05A P-Channel MOSFET and a responsive tactile push button, this module functions as a smart, solid-state toggle (push-on, push-off) to seamlessly manage power in your circuits.

Perfect for DIY electronics, IoT devices, LED lighting arrays, and battery-powered portable projects, this module acts as a reliable intermediary between your power source and the load. It simplifies circuit design by eliminating complex microcontroller logic or mechanical switches, offering easy integration with direct solder pads for VIN, VOUT, and GND.

Features:

• High Current Capacity: Safely handles up to 10A of continuous current for driving heavy loads like motors and high-power LEDs.
• Low Power Consumption: Draws minimal quiescent current when in the off state, extending battery life in portable applications.
• Latching Operation: Simple push-on, push-off functionality using the onboard single-bond tactile button.
• Solid State Reliability: Utilizes an AGM30P05A MOSFET for silent, wear-free, and spark-free switching compared to traditional relays.
• Easy Integration: Clearly labeled, large solder pads (VIN, VOUT, GND) ensure secure and straightforward wire connections.

Package Includes:

1 x 10A Single Bond Button Switch Module - ( Low Power )
