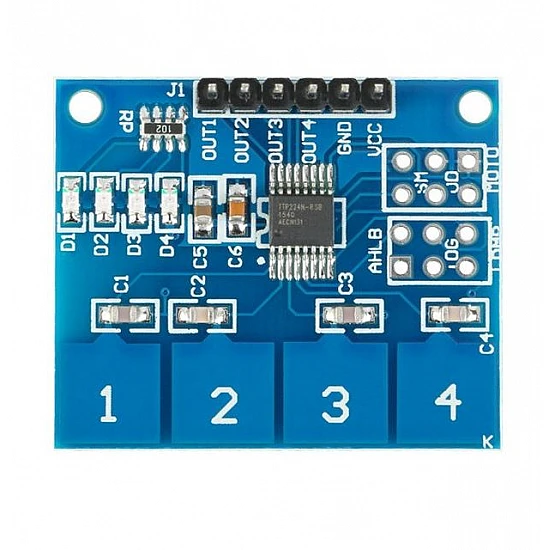

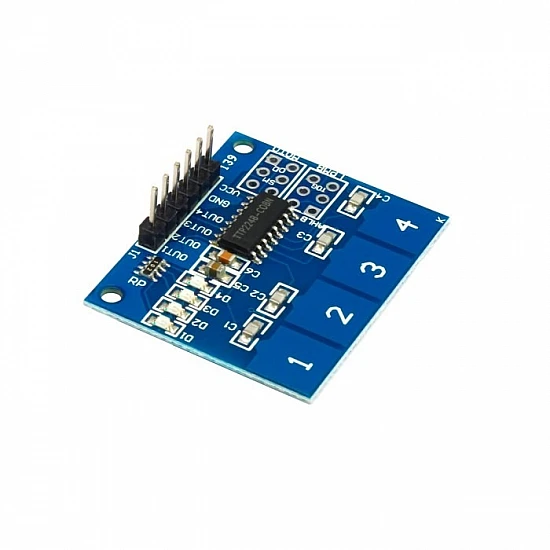

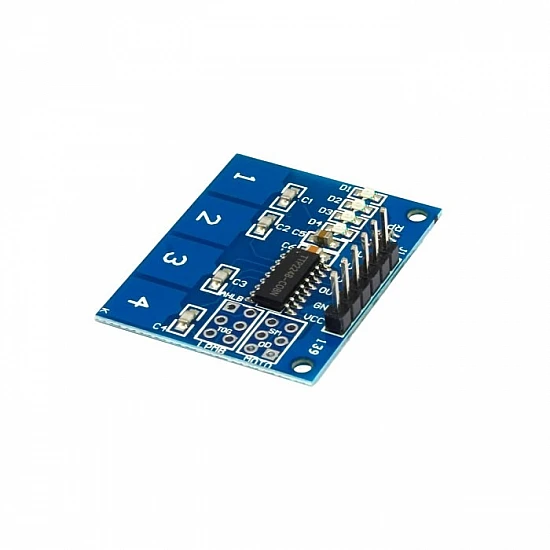

TTP224 - 4 Channel Capacitive Touch Sensor Module

TTP224 - 4 Channel Capacitive Touch Sensor Module
-42 %

TTP224 - 4 Channel Capacitive Touch Sensor Module
₹69
₹119

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-605

The 4 Channel Capacitive Touch Sensor Module uses the touch-sensing IC TTP224 to sense the touch input thus making it easy to add capacitive touch input to your project. The touching detection IC is designed for replacing the traditional direct button key with a diverse pad size. The module has 4 touchpads. Four-Channel Capacitive Touch Sensor Module is easy to interface.

When a capacitive load (such as a human hand) is in close proximity to the sense-pad, the sensor detects the change in capacitance and activates the switch. Custom sense-pads can be made from nearly any conductive material and these sensors can detect touch through thin layers of non-conductive materials such as glass, plastic, fabric, or even wood. The sense-pads can also be extended with a wire or almost any conductive material.

It can be used along with a microcontroller or an Arduino or even without one.

Specifications:

  • Onboard TTP224 capacitive touch sensor IC
  • 4 board-level status indicator
  • Advanced Pins breakout, so that the output mode and working mode selectable.
  • Low power selection
  • Working voltage: 2.4V - 5.5V
Package Includes:
1 x TTP224 Capacitive Touch Switch Module.
Technical
IC Chip

TTP224

Operating current

0.009 mA (Max)

Response time (Fast mode)

60mS

Response time (low power mode)

160mS

Length

3.5 cm

Height

1 cm

Width

2.9 cm
