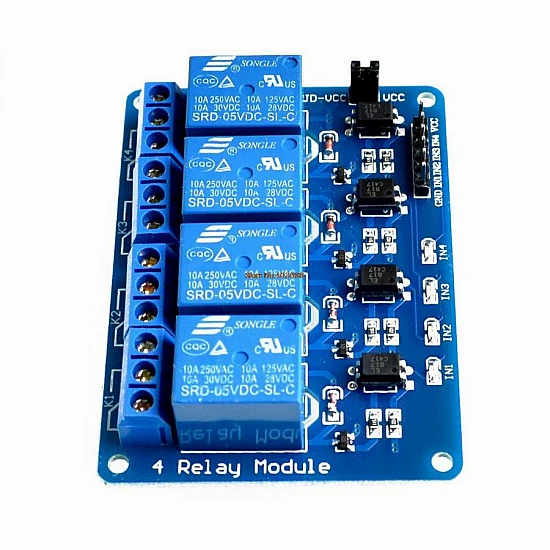

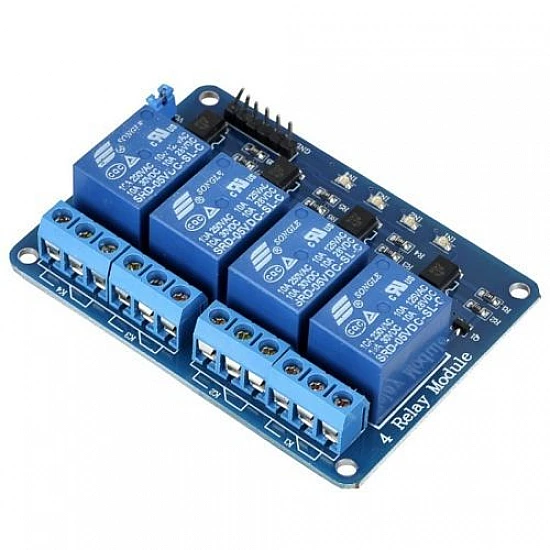

5v 4 Channel Relay Module

5v 4 Channel Relay Module - Sensor - Arduino
5v 4 Channel Relay Module - Sensor - Arduino
-6 %
5v 4 Channel Relay Module - Sensor - Arduino
5v 4 Channel Relay Module - Sensor - Arduino
5v 4 Channel Relay Module
₹167
₹178

(inc GST)

  • Stock: In Stock
  • ₹1 FlyRobo Cashback.
  • SKU: FR-01-504
    7 or more ₹159
    30 or more ₹154

This is a 4-Channel Relay interface board. It can be used to control various appliances and other types of equipment with a large current. It can be controlled directly with 3.3V or 5V logic signals from a microcontroller

Specifications and Features:

  • Trigger mode: High level
  • Channel: 4 channel
  • Relay Operating Voltage: 3.3V to 5V
  • One normally closed contact and one normally open contact
  • DC or AC signal, control, you can control the 220V AC load;
  • Triode drive, increasing relay coil
  • High impedance controller pin
  • The input signal, signal, common Terminal and start conducting;
  • Pull-down circuit for the avoidance of malfunction
  • Power supply indicator and Control indicator lamp
  • Power supply and relay instructions, lit, a disconnect is off;
  • Useful for appliance control;
  • There is a normally open and one normally close contact;
  • The module is compliant with international safety standards, control, and load areas isolation trenches.

Package included:

1 x 5V 4 channel relay module

Technical
No. of Channels

4

Operating Temperature Range

-40 to 85 °C

Operating Voltage

3.3 ~ 5V (DC)

Switching Voltage(AC)

240V@10A

Switching Voltage(DC)

30V@10A

Trigger Current

20 mA

Trigger Voltage

5V (DC)

Length

7.4 cm

Height

1.7 cm

Width

5.2 cm
