5v 2 Channel Relay Module

5v 2 Channel Relay Module - Sensor - Arduino
5v 2 Channel Relay Module - Sensor - Arduino
-14 %
5v 2 Channel Relay Module - Sensor - Arduino
5v 2 Channel Relay Module - Sensor - Arduino
5v 2 Channel Relay Module
5
Based on 1 reviews. - Write a review
 / Ask a Question
₹89
₹104

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-502
    10 or more ₹86
    50 or more ₹84
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

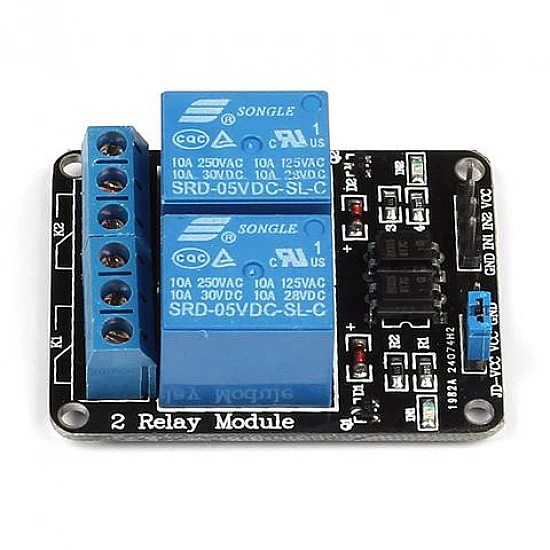

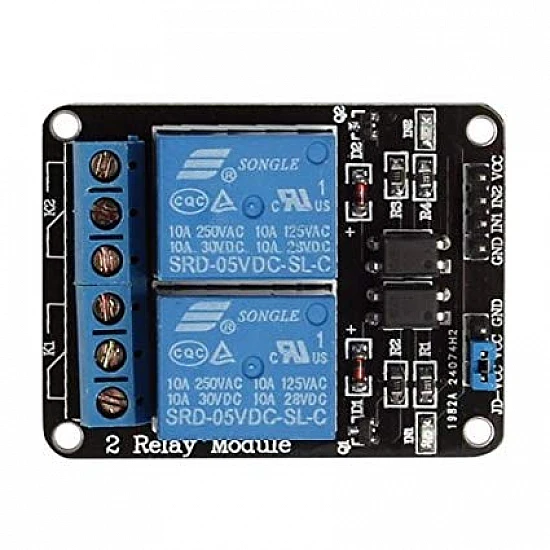

This is a 2-Channel Relay interface board. It can be used to control various appliances and other types of equipment with a large current. It can be controlled directly with 3.3V or 5V logic signals from a microcontroller.

Features:
  • Trigger mode: High level
  • This relay module is 5V active low
  • Standard interface can be directly connected with microcontrollers
  • High-quality double-sided compact PCB
  • Opto-Isolated inputs mean your digital electronics is safe and noise-free
  • It is a 2-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc
  • It is also able to control various appliances and other equipment with large current
  • Relay output maximum contact is AC250V 10A and DC30V 10A
  • Increase the transistor drive relay coils, control pins high impedance
  • Red working status indicator lights are conducive to the safe use
  • Widely used for all MCU control, industrial sector, PLC control, smart home control


Package included:

1 x 5V 2 channel relay module

Technical
No. of Channels

2
Operating Temperature Range

-40 to 85 °C
Operating Voltage

2.5 ~ 5.5 V (DC)
Switching Voltage(AC)

240V@10A

Switching Voltage(DC)

30V@10A

Trigger Current

20 mA
Trigger Voltage

5V (DC)
Length

4.3 cm
Height

1.7 cm
Width

4.3 cm
