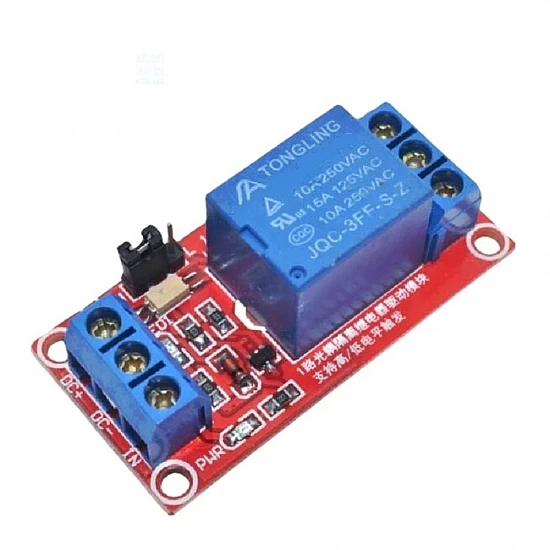

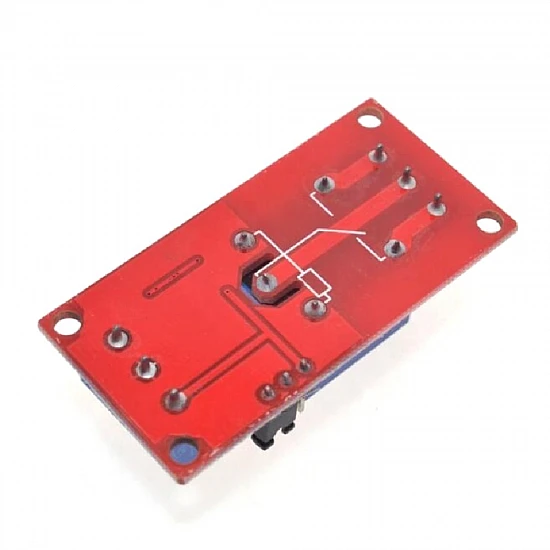

1 Channel 24V Relay Module with Optocoupler Isolation

The 1 Channel 24V Relay Module with Optocoupler Isolation is an essential component for safely controlling high-power devices with low-power controllers. Operating on a 24V DC supply, this board isolates your logic circuitry from high-voltage AC or DC loads, preventing voltage spikes from causing catastrophic damage to your system.

Ideal for industrial automation, home automation, and advanced IoT projects, this module easily interfaces with 24V PLCs or logic systems. It features a built-in jumper allowing you to select between high and low-level triggering, giving you maximum flexibility when designing your circuit diagram or integrating it into an existing control panel. Simply wire your load to the standard normally open (NO) or normally closed (NC) screw terminals.

Features:

• Relay Capacity: Supports switching up to 10A at 250V AC or 10A at 30V DC.
• Optocoupler Isolation: Provides robust electrical isolation between the control signal and the load, ensuring complete system safety.
• Selectable Trigger: Onboard jumper allows switching between High and Low-level triggering modes to suit various microcontrollers.
• Operating Voltage: Requires a 24V DC power supply for reliable coil operation.
• Visual Indicators: Equipped with onboard LEDs for power status and active relay state monitoring.
• Robust Terminals: Features high-quality screw terminals for secure and stable high-current wire connections.

Package Includes:

1 x 1 Channel 24V Relay Module with Optocoupler Isolation
