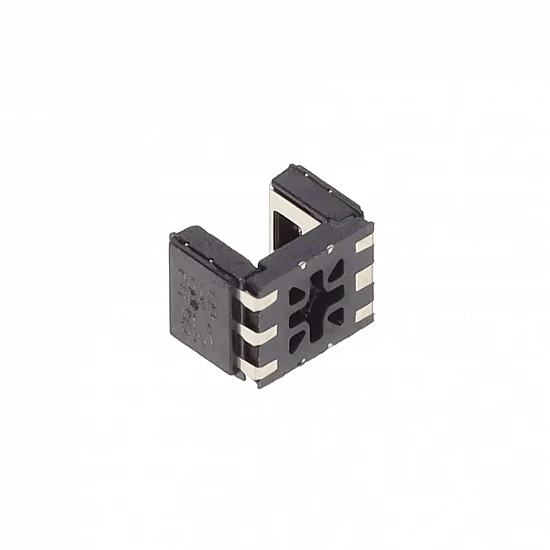

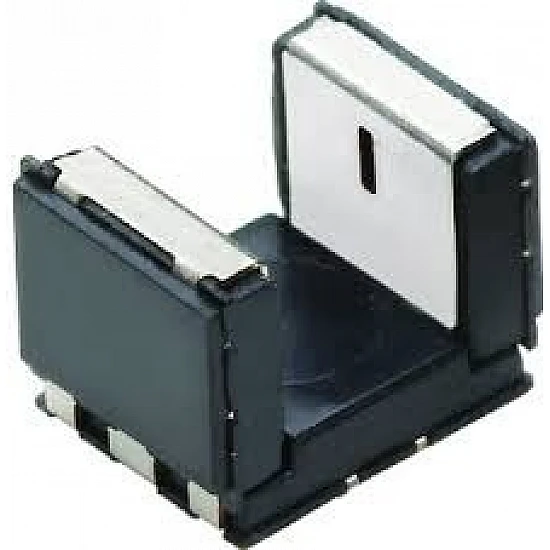

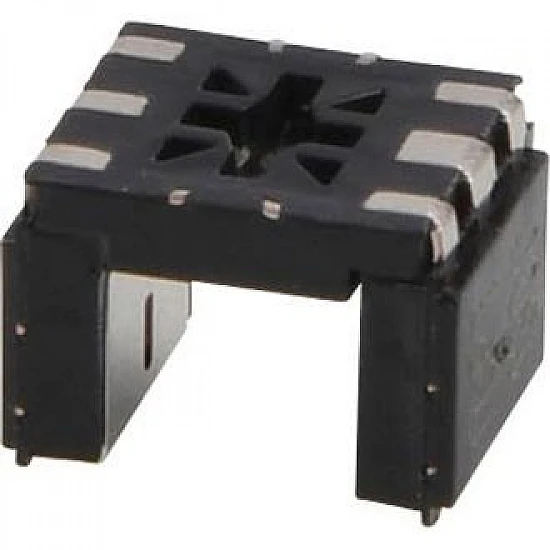

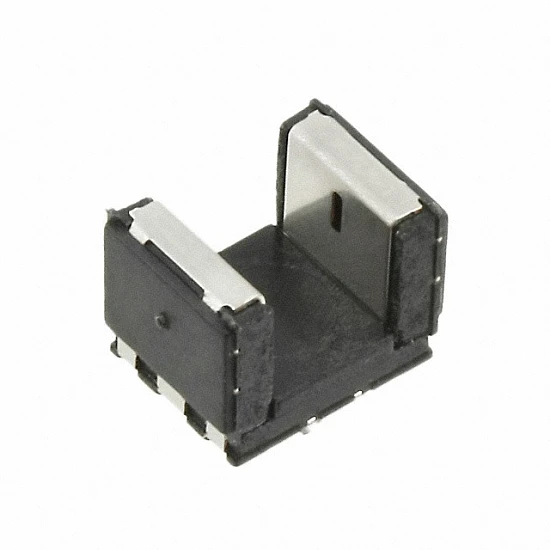

TCPT1300X01 Subminiature Transmissive Optical Sensor 3mm Gap

The TCPT1300X01 is a high-performance subminiature transmissive optical sensor, designed for precise motion and position detection in compact electronic systems. Housed in a surface-mount (SMD) package, it features an integrated 950nm infrared emitter and a phototransistor detector positioned face-to-face across a 3mm gap. With a narrow 0.3mm aperture width, this sensor provides exceptional accuracy for encoder applications, motion speed detection, and optical switching. The device is AEC-Q101 qualified, ensuring automotive-grade reliability and performance in harsh environments. Its moisture sensitivity level 1 (MSL 1) rating and lead-free construction make it ideal for high-volume automated assembly in industrial automation, automotive sensors, and precision office equipment.

Features:

• Compact SMD Design: Miniature 5.5 x 4 x 4mm footprint for space-constrained PCB layouts.
• Automotive Qualified: AEC-Q101 released for high-reliability automotive and industrial applications.
• Precise Detection: 3mm slot width with a 0.3mm aperture for high-resolution position sensing.
• Infrared Performance: Integrated 950nm emitter with a phototransistor output for efficient optical coupling.
• Fast Response Time: Features a 20µs rise time and 30µs fall time for high-speed motion tracking.
• Robust Operating Range: Wide operating temperature range from -40°C to +105°C.

Package Includes:

1 x TCPT1300X01 TCPT1300 micro transmissive photoelectric sensor chip 3mm
