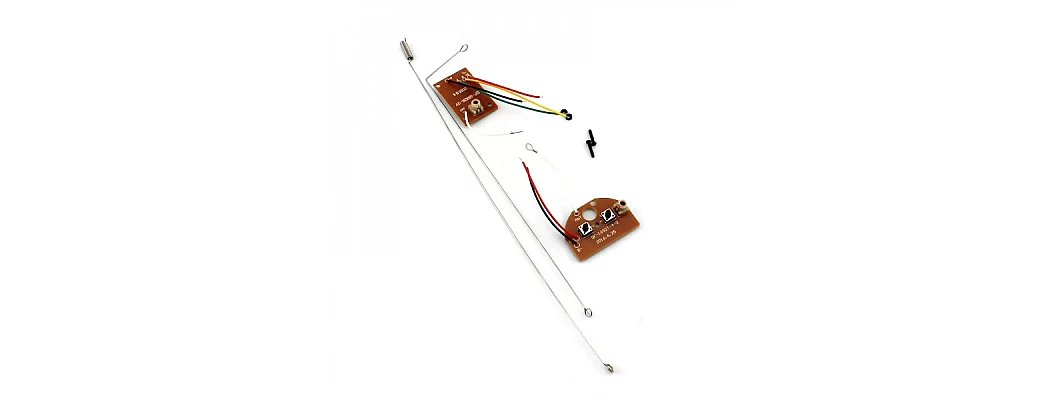

Hobbyists and enthusiasts have always been captivated by remote-controlled (RC) devices because they provide an interactive introduction to the realm of electronics. A simple yet fascinating part that we will examine in this tutorial is the 2CH RC Remote Control 27MHz Circuit PCB Transmitter and Receiver Board with Antenna Set.

Understanding the Basics

What is 2CH RC?

A system that enables you to control a device along two independent channels is known as 2CH RC, or 2 channels remote control. This could entail steering an automobile left or right or moving it forward and backward.

The 27MHz Frequency

The 27MHz frequency is commonly used in RC systems. It provides a good balance between range and performance, making it suitable for various applications.

Components Included

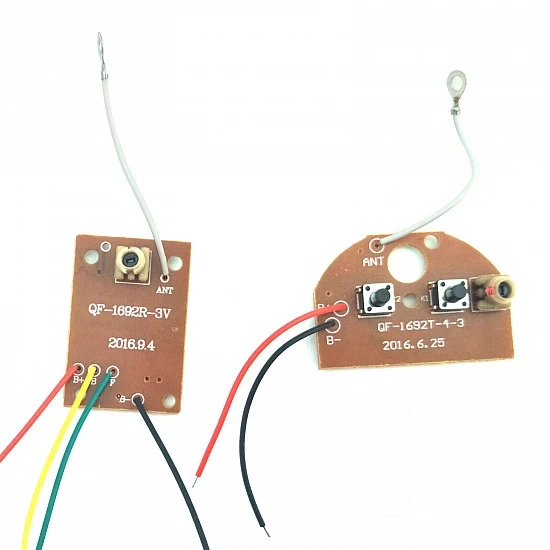

The 2CH RC Remote Control 27MHz Circuit PCB Transmitter and Receiver Board with Antenna Set typically includes:

  1. Transmitter Board: This is the handheld device you use to control your RC vehicle or gadget. It usually has buttons, joysticks, or switches to manipulate the connected device.

  2. Receiver Board: This is the component installed in your RC device that receives signals from the transmitter and translates them into actions.

  3. Antenna Set: The antennas are crucial for reliable signal transmission between the transmitter and receiver. They enhance the range and stability of the RC system.

Setting Up Your 2CH RC System

  1. Connect the Transmitter Board: Power the transmitter board using the appropriate power source (often batteries). Connect any external control elements, such as joysticks or buttons, according to the provided instructions.

  2. Connect the Receiver Board: Install the receiver board in your RC device and connect it to the appropriate components (motors, servos, etc.). Ensure the connections match the instructions provided with the set.

  3. Install the Antennas: Attach the antennas to both the transmitter and receiver boards. Keep the antennas straight for optimal signal reception.

  4. Power On: Turn on both the transmitter and the RC device. You should now be able to control the device using the controls on the transmitter.

Experimenting with Your RC System

Now that your 2CH RC system is set up, it's time to have some fun experimenting. Consider these simple projects:

  1. RC Car Control: Attach the receiver board to an RC car, and use the transmitter to navigate it around obstacles.

  2. Boat Steering: If you have an RC boat, connect the receiver board to control its steering mechanism.

  3. Custom Creations: Integrate the RC system into your custom projects, such as a robot or a model airplane.

Tips for Success

  • Range: Keep in mind that obstacles and interference can affect the range of your RC system. Experiment in an open space for the best results.

  • Batteries: Make sure your transmitter and receiver boards have a reliable power source. Weak batteries can lead to erratic behavior.

  • Safety First: When experimenting with RC devices, especially if they have moving parts, prioritize safety. Avoid operating them near people, pets, or fragile objects.

Conclusion:

A great place to start exploring the world of remote-controlled electronics is with the 2CH RC Remote Control 27MHz Circuit PCB Transmitter and Receiver Board with Antenna Set. It gives makers and hobbyists a plethora of opportunities to experiment and produce.

When you explore the fascinating world of RC technology, don't forget to have fun with the learning and experimentation process!
