BF350 High Precision Resistance Strain Gauge Pressure Sensor

BF350 High Precision Resistance Strain Gauge Pressure Sensor
BF350 High Precision Resistance Strain Gauge Pressure Sensor
-26 %
BF350 High Precision Resistance Strain Gauge Pressure Sensor
BF350 High Precision Resistance Strain Gauge Pressure Sensor
BF350 High Precision Resistance Strain Gauge Pressure Sensor
₹29
₹39

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-275
    10 or more ₹27
    50 or more ₹25

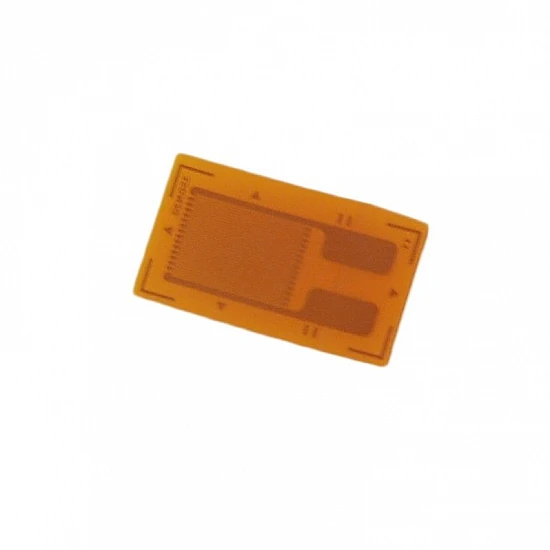

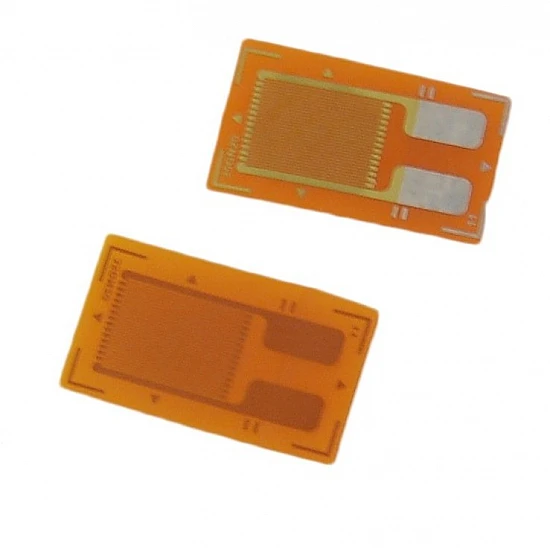

BF350 High Precision Resistance Strain Gauge Pressure Sensor is a foil metal strain gauge. BF350 is mainly fit for 0.02 level manufacturing crafts pressure sensor which means its output deviation should be controlled within 0.02 so its precision is really high.

Features:

  • Automatic creep and temperature compensation
  • High accuracy and good stability.
  • Widely used in Pressure sensors and weighing sensors.

Package Includes:

1 x BF350 High Precision Resistance Strain Gauge Pressure Sensor

Technical
Fatigue Life

≥1M

Operating Temperature Range

-30 to +80 °C

Resistance

350 ohms

Sensitivity coefficient

2.00-2.20

Strain Limit

2.0%

Length

7mm

Width

5mm
