Strain Gauge Sensor

Strain Gauge Sensor
Strain Gauge Sensor
Strain Gauge Sensor
Strain Gauge Sensor
Strain Gauge Sensor
₹149

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-824
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

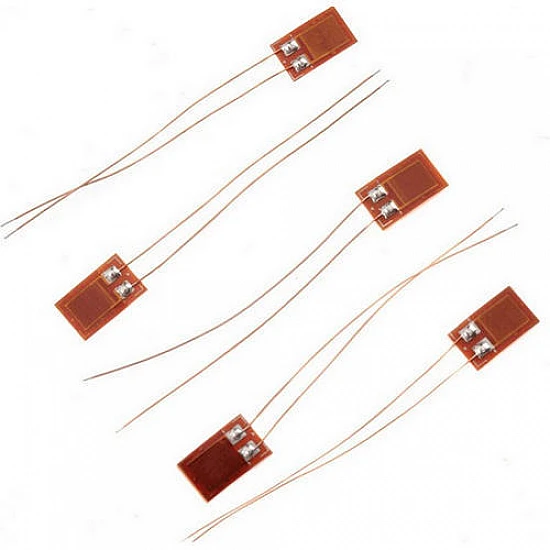

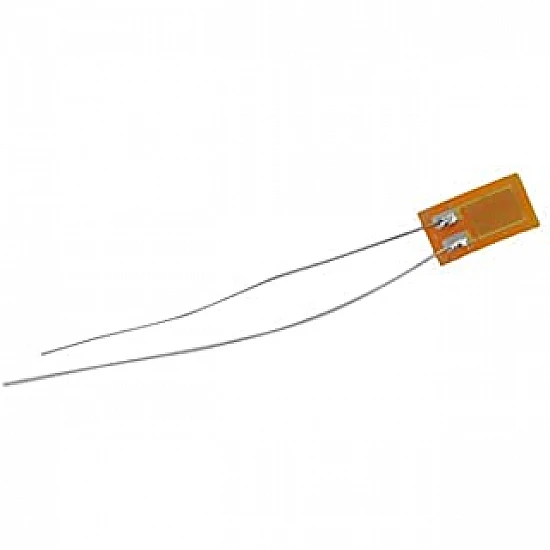

The strain gauge is a foil metal strain gauge, widely used in pressure sensors and weighing sensors.

It shares features of high accuracy, good stability,fully-closed structure, and automatic compensation of temperature and creep. Specifically, its backing material is made of modified phenolic while its gate wire is made of cuni. BF350 is mainly fit for 0.02 level manufacturing crafts pressure sensor which means its output deviation should be controlled within 0.02 so its precision is really high. You could use it to measure the strain of components directly!


Specificatons:

  • Size:7.4mm(length) x 4.4mm(width)
  • The key technical indexes: BF series
  • Strain limit: 2.0%
  • fatigue life:≥1M
  • Resistance: 350 ohms
  • Contrast: 800: 1 (Min) (transmission)
  • Sensitivity coefficient: 2.00-2.20
  • Using temperature range: -30--+80
  • Tolerance of average resistance: ≤±0.1%
  • Sensitive coefficient dispersion:≤±1%
  • Temperature self compensation coefficient:9,11,16,23,27

Package Includes:

1 x Strain Gauge Sensor
