LoRa SX1278 433MHZ Long Range RF Wireless Module

LoRa SX1278 433MHZ Long Range RF Wireless Module
LoRa SX1278 433MHZ Long Range RF Wireless Module
-48 %
LoRa SX1278 433MHZ Long Range RF Wireless Module
LoRa SX1278 433MHZ Long Range RF Wireless Module
LoRa SX1278 433MHZ Long Range RF Wireless Module
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹419
₹799

(inc GST)

  • Stock: In Stock
  • ₹4 FlyRobo Cashback.
  • SKU: FR-01-659
    7 or more ₹390
    30 or more ₹374
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

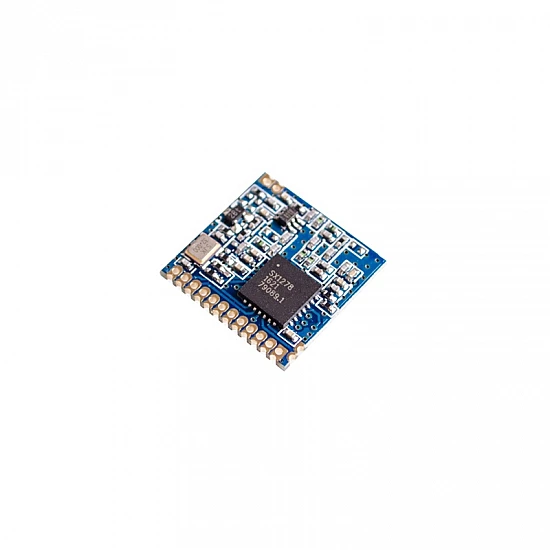

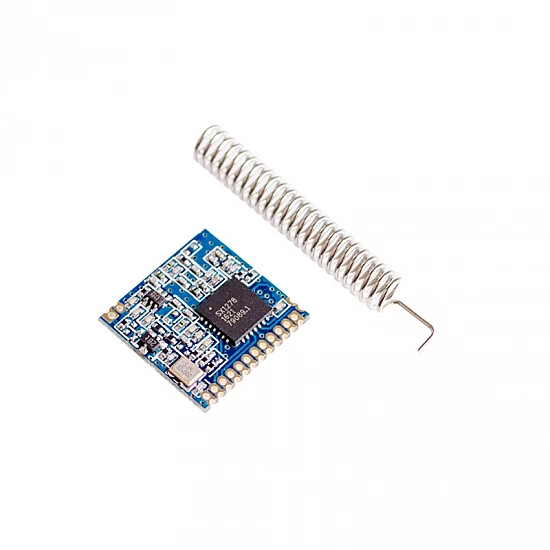

LoRa SX1278 433MHZ Long Range RF Wireless Module is a type of RF front-end transceiver module based on SX1278. The module consists of RFIC SX1278, a thin SMD crystal, and an antenna matching circuit.

Features:

  • Frequency Range: 433MHz
  • Modulation: FSK/GFSK/MSK/LoRa
  • SPI Data Interface
  • Excellent blocking immunity
  • Preamble detection
  • Automatic RF Sense and CAD monitor
  • Built-in bit synchronizer for clock recovery
  • Built-in temperature sensor

Package Includes:

1 x LoRa SX1278 433MHZ Long Range RF Wireless Module

Technical
Data Rate

<300 kbps
Frequency Range

433MHz
Operating Temperature Range

-40°C to +80°C
Output Power

+20dBm
Sensitivity

-136dBm
stand by current

≤ 1uA
Supply Voltage

1.8 - 3.6V
