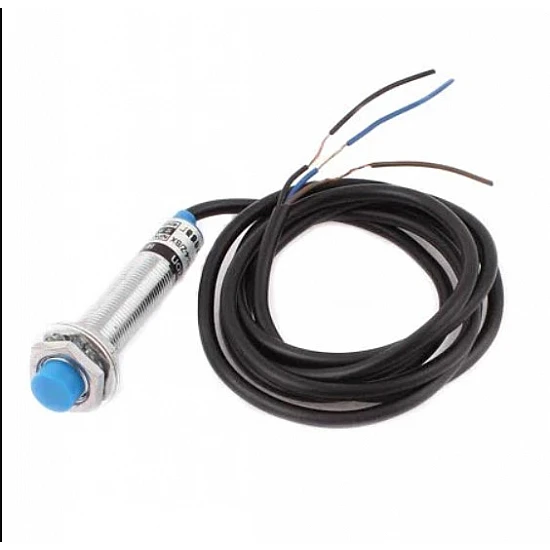

Tube Type PNP NO Inductive Proximity Sensor Detection Switch DC6-36V 4mm Normally Open switch LJ12A3-4-Z/BY

Tube Type PNP NO Inductive Proximity Sensor Detection Switch DC6-36V 4mm Normally Open switch LJ12A3-4-Z/BY
-16 %
Tube Type PNP NO Inductive Proximity Sensor Detection Switch DC6-36V 4mm Normally Open switch LJ12A3-4-Z/BY
₹210
₹249

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-01-496
    7 or more ₹192
    30 or more ₹182

The automatic control industry uses this DC 6-36V M12 Inductive 4mm PNP-NO Proximity Sensor Switch extensively for detecting, regulating, and non-contact switching. The proximity switch will emit a control signal when it is in close proximity to a target object.An Edy Current is induced in metal as it gets close to the switch's sensing area. It in turn affects the inductive proximity sensor's magnetic field. The sensor detects this change.

Inductive proximity switches have the potential to be non-contact, spark- or pressure-free, and quickly given electrical commands. reflect the position and the stroke movement mechanism precisely. accuracy of positioning, frequency of operation, and lifespan. In difficult locations, it is ideal and simple to install.This 4mm proximity sensor, which has a 1mm detection distance, shielded type installation, long life, low cost, and capacity to detect a variety of metals, is used for precise positioning of robots, precision machine machines, and moulds.

Features:-

  • The status of the proximity sensor is checked by a red LED.
  • high consistency in placement
  • increased switching frequency
  • wide range of voltages
  • Cylinder length overall: 62mm.
  • 40mm thread length
  • M12 is the outer (theard) diameter
  • Prevention of dust, water, oil, and vibration
  • Protection from reverse power, short circuits, and direct connection to PLC
  • can take the place of limit switches and tiny switches

Package Includes:-

1 X  DC 6-36V M12 Inductive 4mm PNP-NO Proximity Sensor Switch.

Technical
Cable Length

1.15 meter

Detection Distance

4 mm

Operating Voltage

6v-36v

Output Type

PNP Normally Open Three-line

Weight

45 grams

Working temperature

-25 degree celsius - 70 degree celsius, ± 15%

Material

Metal and plastic
