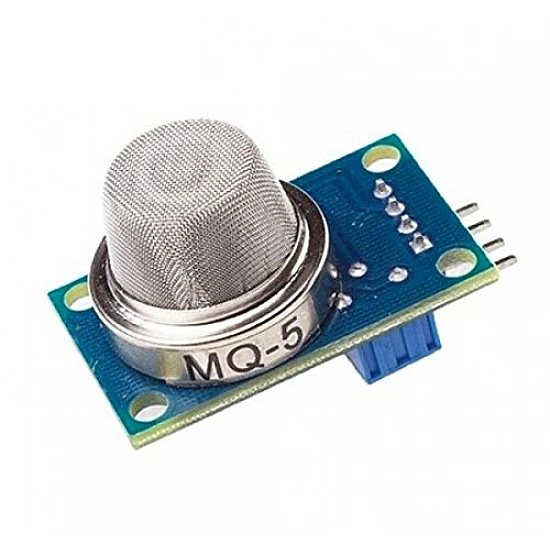

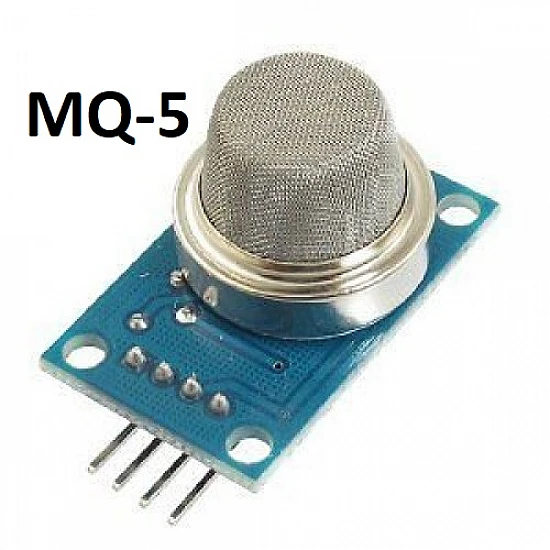

MQ-5 Methane LPG Liquid Propane Gas Sensor Module

The MQ-5 is used in gas leakage detecting equipment in consumer and industry applications, this sensor is suitable for detecting LPG, natural gas, coal gas. Avoid the noise of alcohol, cooking fumes, and cigarette smoke. The sensitivity can be adjusted by the potentiometer. The sensitive material of the MQ-5 gas sensor is SnO2, which with lower conductivity in clean air. When the target combustible gas exists, The sensor’s conductivity is higher along with the gas concentration rising.

Please use a simple electro circuit, Convert change of conductivity to the corresponding output signal of gas concentration. The sensor could be used to detect different combustible gas especially Methane, it is with low cost and suitable for different application

Connections:

• VCC ➠ 2.5V ~ 5.0V
• GND ➠ ground
• Aout ➠ MCU.IO (analog output)
• Dout ➠ MCU.IO (digital output)

Features:

• High sensitivity to LPG, natural gas, town gas
• Small sensitivity to alcohol, smoke
• Simple drive circuit
• Fast response
• Stable and long life

Package Content:

1 x MQ-5 Methane LPG Liquid Propane Gas Sensor Module
