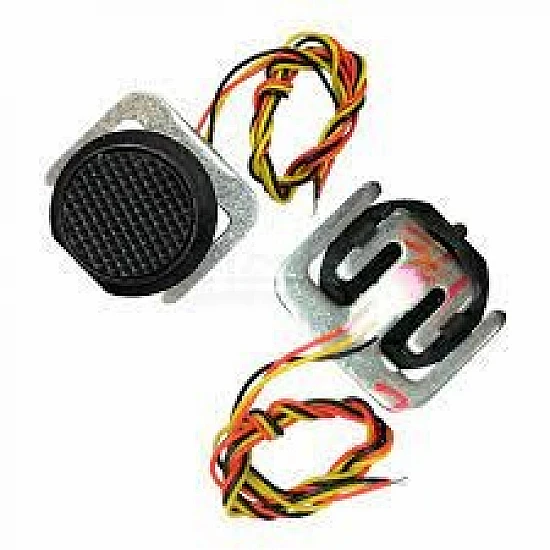

50KG Half bridge Experiments Body Scale Load cell with Bracket

50KG Half bridge Experiments Body Scale Load cell with Bracket
50KG Half bridge Experiments Body Scale Load cell with Bracket
50KG Half bridge Experiments Body Scale Load cell with Bracket
50KG Half bridge Experiments Body Scale Load cell with Bracket
50KG Half bridge Experiments Body Scale Load cell with Bracket
50KG Half bridge Experiments Body Scale Load cell with Bracket
50KG Half bridge Experiments Body Scale Load cell with Bracket
₹42

(inc GST)

  • Stock: In Stock
  • SKU: FR-07-958
    10 or more ₹39
    50 or more ₹37

The 50KG Half-Bridge Experiments Body Scale Load Cell with Bracket is a precise weighing sensor designed for measuring loads up to 50 kilograms. It operates as a half-bridge strain gauge, ideal for creating DIY scales, force measurement devices, and load monitoring systems. The load cell comes with a sturdy bracket for easy installation and enhanced stability. With its high sensitivity and accuracy, it provides reliable readings in various applications. This compact sensor is commonly used in robotics, industrial automation, and academic experiments. It integrates smoothly with microcontrollers and signal amplifiers for seamless data processing.

Features:

  • 50 kg (110 lbs)
  • Half-Bridge Structure
  • Aluminum Alloy Construction
  • Bracket Included
  • Compact Size
  • Easy Wiring
  • High Precision

Package Includes:

1 x 50KG Half bridge Experiments Body Scale Load cell with Bracket

Technical
Cable Length

30cm

Capacity

50kg

Input Resistance

1000Ω

Insulation resistance

5000MΩ

Non-linearity Error

0.03%FS

Output Sensitivity

1 ± 0.1 mv/v

Repeatability

0.03%FS

Length

30mm

Height

14mm

Width

28mm
