DRV8825 Stepper Motor Driver with Aluminum Heat Sink

DRV8825 Stepper Motor Driver with Aluminum Heat Sink - Stepper Motor and Drivers - Motor and Driver
DRV8825 Stepper Motor Driver with Aluminum Heat Sink - Stepper Motor and Drivers - Motor and Driver
-60 %
DRV8825 Stepper Motor Driver with Aluminum Heat Sink - Stepper Motor and Drivers - Motor and Driver
DRV8825 Stepper Motor Driver with Aluminum Heat Sink - Stepper Motor and Drivers - Motor and Driver

DRV8825 Stepper Motor Driver with Aluminum Heat Sink
₹118
₹299

(inc GST)

  • Stock: In Stock
  • ₹1 FlyRobo Cashback.
  • SKU: FR-04-504
    7 or more ₹114
    30 or more ₹111

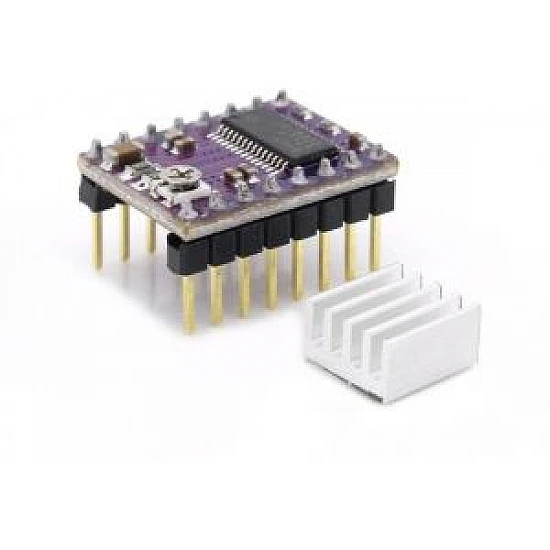

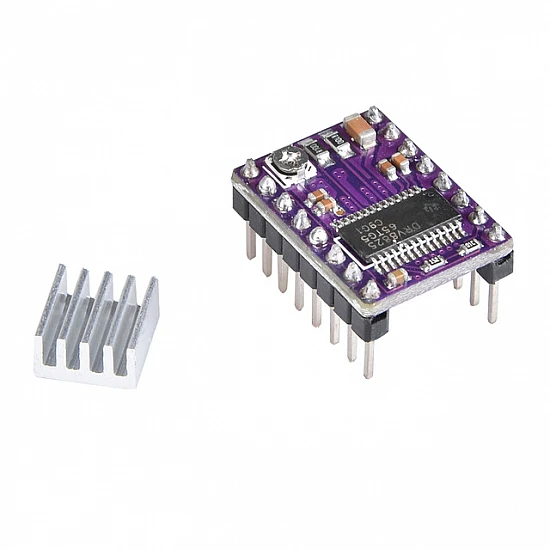

The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 micro-stepping bipolar stepper motor driver. The DRV8825 features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

This product is a carrier board or breakout board for TI’s DRV8825 stepper motor driver; we therefore recommend careful reading of the DRV8825 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil.



Features:

  • Simple step and direction control interface
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • 45 V maximum supply voltage
  • Built-in regulator (no external logic voltage supply needed)
  • Can interface directly with 3.3 V and 5 V systems
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • Short-to-ground and shorted-load protection
  • 4-layer, 2 oz copper PCB for improved heat dissipation
  • Exposed solderable ground pad below the driver IC on the bottom of the PCB





Specifications:

  • Minimum operating voltage: 8.2V
  • Maximum operating voltage: 45V
  • Continuous current per phase: 1.5 Amp
  • Maximum current per phase: 2.2 Amp
  • Minimum logic voltage: 2.5V
  • Maximum logic voltage: 5.25V
  • Microstep resolutions: Full, 1/2, 1/4, 1/8, 1/16 and 1/32
  • Reverse voltage protection?: No



Package Content:

    1 x DRV8825 Stepper Motor Driver with Aluminum Heat Sink
