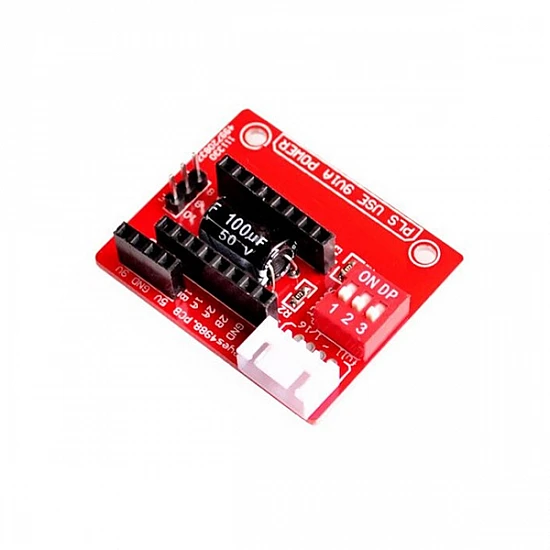

- If jumper is hit the position of ON DP, that means 16 segment (4988) or 32 segment (8825)Jm connected motor
- connect 5v and 9v power supply
- E, S, D, G, respectively corresponding to the connection of the Enable/Step/Dir/Gnd drive signal output

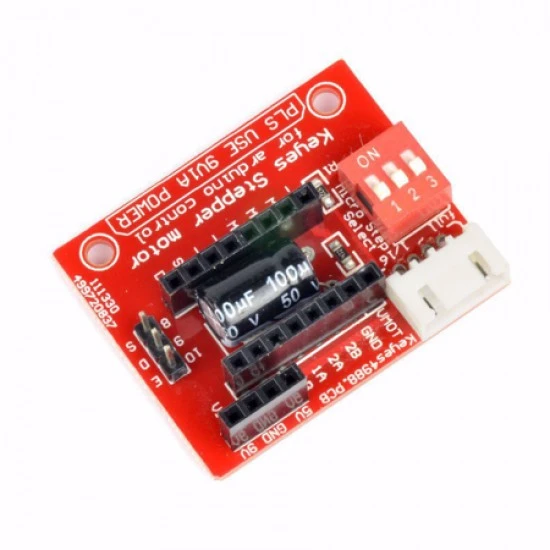

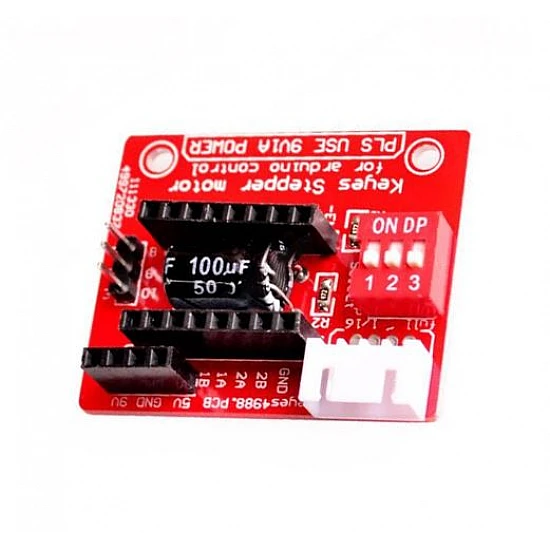

- 1 x A4988 / DRV8825 Stepper Motor Driver Expansion Board
