XR2206 high precision signal generator

XR2206 high precision signal generator
XR2206 high precision signal generator
-57 %
XR2206 high precision signal generator
XR2206 high precision signal generator
XR2206 high precision signal generator
₹345
₹799

(inc GST)

  • Stock: In Stock
  • ₹3 FlyRobo Cashback.
  • SKU: FR-01-188
    7 or more ₹329
    30 or more ₹320

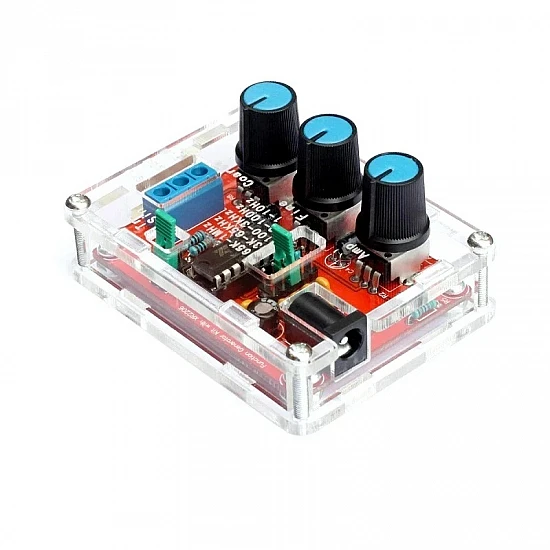

DIY Kit for the XR2206 High Precision Function Signal Generator Sine Triangle Square Output 1Hz-1MHz Adjustable Frequency Amplitude is a high-quality sine, triangle, and square wave generator. It is a soldering and installation kit. This function generator can generate square, sine, and triangle waveforms with frequencies ranging from 1Hz to 1MHz and a supply voltage of 9V to 12VDC. The waveforms' amplitudes can range from 0 to 3 VDC.

  • High-resolution sine, triangle, as well as square waveforms can be generated.
  • 1Hz-1MHz frequency range
  • Frequency and amplitude are each adjustable.
  • The frequency adjustment process requires coarse and fine tuning.
  • Use 9-12V external power or a 9V battery for a wide power supply range (NOT Included).
  • All of the components are through hole, providing installation a breeze.

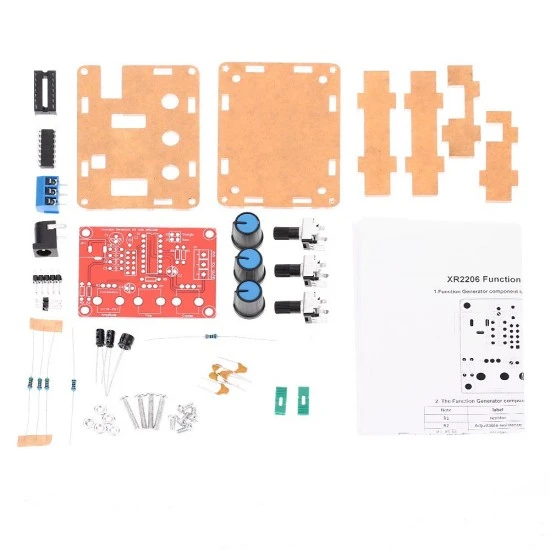

Package includes:-

1   X XR2206 High Precision Signal Generator

1   X Acrylic Case For Signal Generator

Technical
Fall Time

Less than 30 ns (at 1 KHz)

Frequency Range

1Hz-1MHz

Impedance

600 Ohm + 10%

Linearity

Less than 1% (up to 100 KHz) 10 mA

Rise Time

Less than 50 ns (at 1 KHz )

Voltage Range

9-12 V
