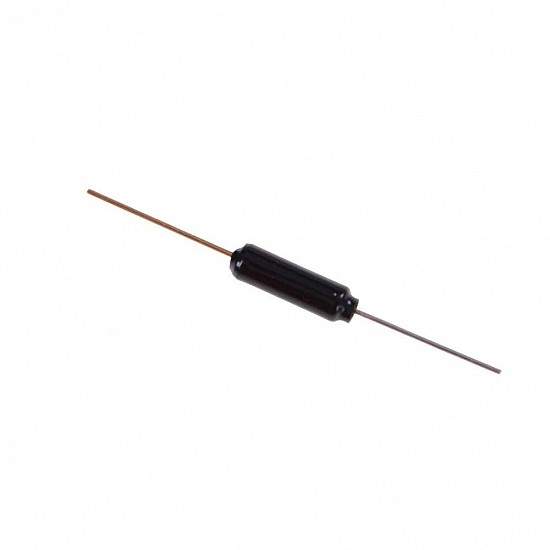

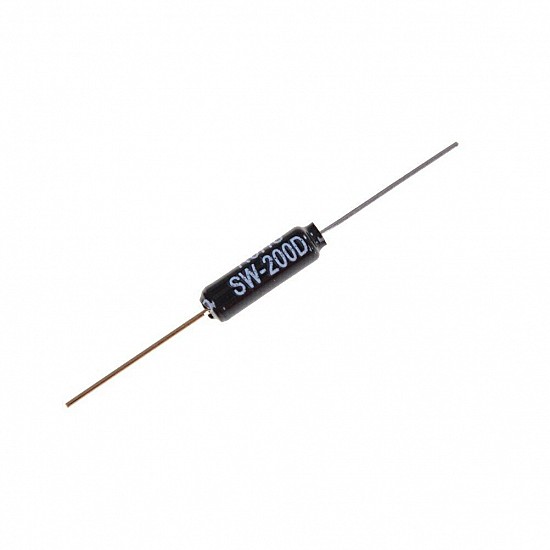

SW200D High Sensitive Vibration Switch can detect horizontal tilt, vertical flip, shock, and vibration. It is a dual ball type single direction tilt sensitive trigger switch. It is formed by two contacts and two small metal spheres. When the sensor is in a horizontal position, the spheres connect contacts between them (ON-state), closing the circuit, when it is tilted more than 15° the contacts open (OFF-state).

Features:

  • SW200D double bead switch has a longer lead time.
  • Shape: Round
  • It is widely used in toys, and anti-theft detection systems but also in smart-car and robot-car.

Package Includes:

1 x SW200D High Sensitive Vibration Switch

Technical
Capacitance

5pF

Color

Black

Contact Resistance

10 ohm

Life Span

10,0000 cycles

Operating Temperature Range

-40°C to +80°C

Operating Voltage

12V

Length

40 mm

Width

3.5 mm
