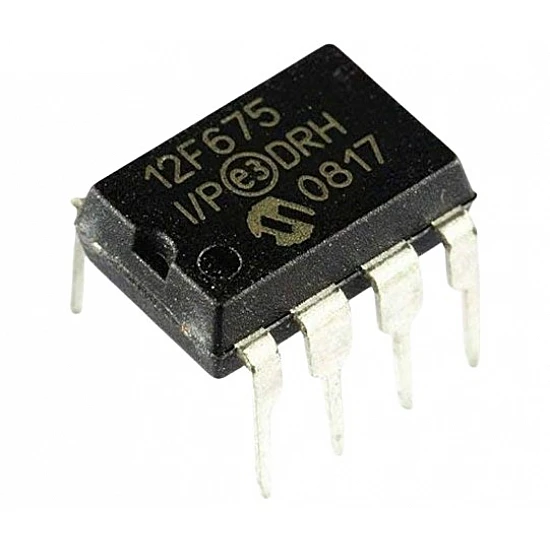

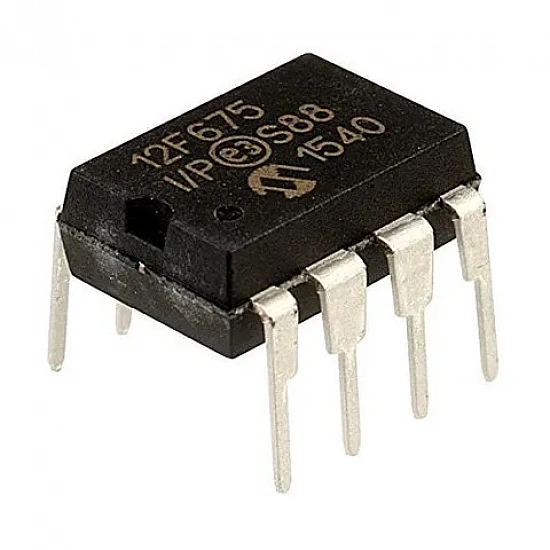

PIC12F675-I/P 8-Bit Flash Microcontroller 10-Bit ADC DIP-8

The PIC12F675-I/P is a highly versatile and cost-effective 8-bit CMOS microcontroller from Microchip's mid-range PIC12 family. Housed in a beginner-friendly 8-pin DIP package, it combines a powerful RISC architecture with integrated analog features, including a 4-channel 10-bit ADC and an analog comparator. With 1.75 KB of Flash program memory and 128 bytes of EEPROM, it provides ample storage for compact sensor-based applications and remote monitoring systems. Its low power consumption, sub-microsecond instruction execution, and internal 4 MHz oscillator make it an ideal choice for automotive, industrial, and consumer entry-level products that require field re-programmability and high reliability in a small footprint.

Features:

• High-Performance RISC CPU: Easy-to-learn 35-instruction set with 200ns execution speed at 20MHz.
• Integrated 10-Bit ADC: 4-channel analog-to-digital converter for precise sensor interfacing.
• Compact 8-Pin DIP Package: Direct-plug through-hole design ideal for breadboarding and simple PCBs.
• Ultra-Low Power Operation: Standby current as low as 1 nA, perfect for battery-operated devices.
• Internal 4 MHz Oscillator: Precision factory-calibrated oscillator reduces the need for external components.
• Robust System Protection: Features a Watchdog Timer (WDT) and Brown-out Detect (BOD) for stable performance.

Package Includes:

1 x PIC12F675-I/P 8-Bit Flash Microcontroller 10-Bit ADC DIP-8
