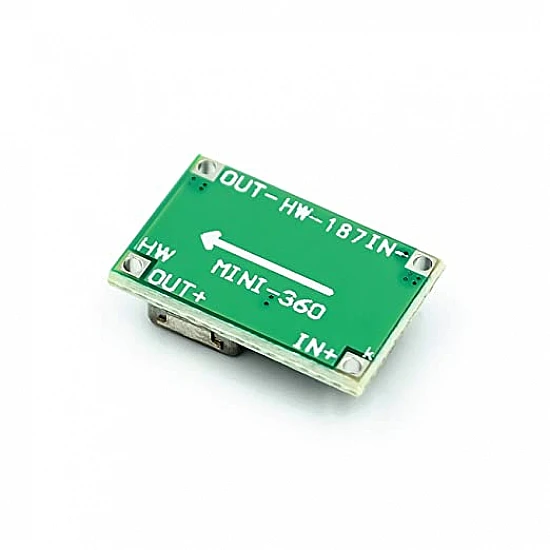

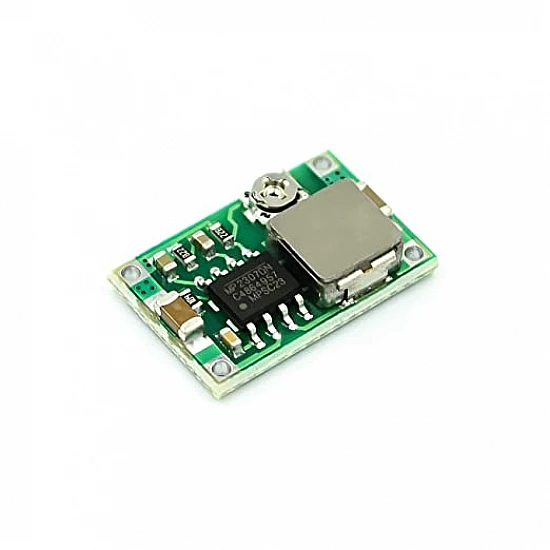

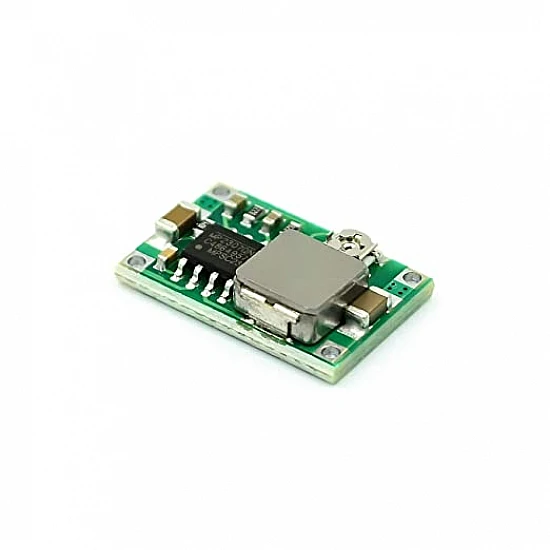

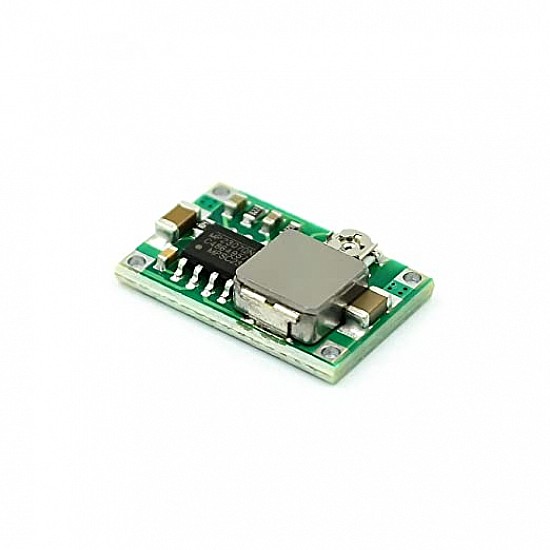

Mini 360 DC-DC Buck Converter Step Down Module

The Mini360 buck converter step down voltage regulator board is designed for use with RC airplanes, quadcopters, drones, RC cars, Arduino and other micro-controllers, and other DIY electronics needing an ultra-miniature, lightweight step-down voltage regulator.

It uses an integrally molded power inductor and synchronous rectifier control chip for a smaller and more efficient design. It accepts any input voltage from 4.75V to 23V and generates an output adjustable from 1V to 17V with the onboard potentiometer.


Specifications:

  • Model Name: Mini-360 (ultra-small size DC-DC synchronous rectifier buck module)
  • Module Properties: Non-isolated buck regulator module
  • Rectification: Synchronous rectification
  • Input voltage: 4.75V-23V
  • Output voltage: 1.0V-17V
  • Output Current: 3A peak, 1.8A continuous
  • Conversion efficiency: 96% (maximum)
  • Switching Frequency: 340KHz
  • Output ripple: 30mV (no-load)
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 2.5%
  • Working temperature: -40 C to +85 C
  • Dimensions: 17mm x 11mm x 4mm (0.67 x 0.43 x 0.16 inches) L x W x H
  • Weight: 1 Gram


Package Includes:

1 X  Mini360 Buck Converter.
