STM32F103C8T6 Development Board STM32 ARM Core Module

STM32F103C8T6 Development Board STM32 ARM Core Module
STM32F103C8T6 Development Board STM32 ARM Core Module
Out Of Stock
STM32F103C8T6 Development Board STM32 ARM Core Module
STM32F103C8T6 Development Board STM32 ARM Core Module

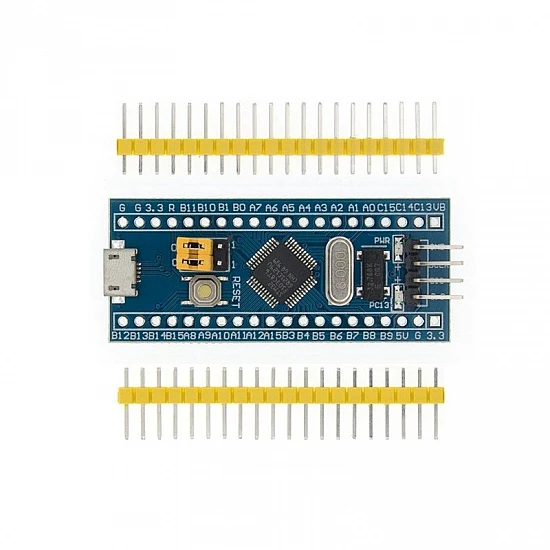

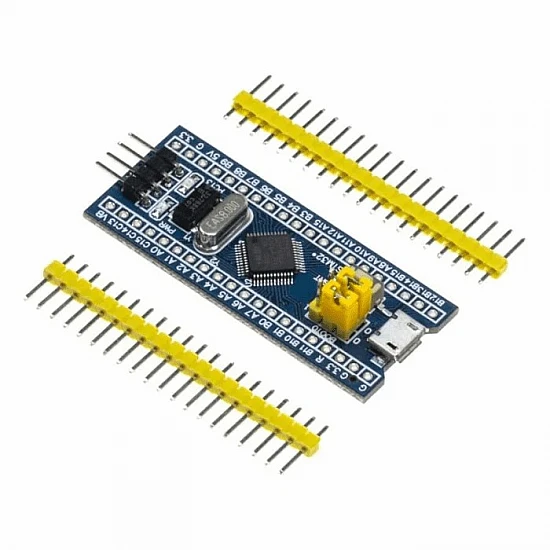

This is STM32F103C8T6 Development Board STM32 ARM Core Module. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C8T6.

Board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M3 32-bit core.

Features :

  • 100% Brand new and high-quality STM32 Board
  • 72MHz work frequency.
  • 64K flash memory,
  • 20K SRAM.
  • 4-to-16 MHz crystal oscillator
  • Internal 40 kHz RC
  • 32 kHz oscillator for RTC with calibration
  • 7-channel DMA controller
  • 2 x 12-bit, 1μs A/D converters (up to 16 channels)
  • Up to 2 x I2C interfaces (SMBus/PMBus)
  • Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
  • Up to 2 SPIs (18 Mbit/s)
  • CAN interface (2.0B Active)
  • Peripherals supported: timers, ADC, SPIs, I2Cs, and USARTs
  • Reset(POR/PDR).
  • Onboard the Mini USB interface, you can give the board power supply and USB communication.
  • 2.0 to 3.6 V application supply and I/Os

  • Package Includes :

    1 x STM32F103C8T6 Development Board STM32 ARM Core Module

    Write a review

    Note: HTML is not translated!
    Bad Good
    Technical
    Microcontroller

    STM32F103C8T6

    Clock Speed

    72MHz

    Core

    ARM Cortex-M3 32-bit

    crystal oscillator

    4 to 16 MHz

    Flash Memory

    64K

    Operating Voltage

    2.0 to 3.6 V

    SRAM

    20K
