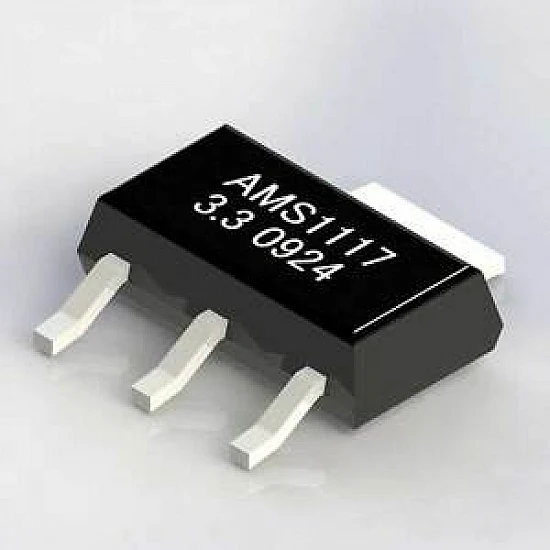

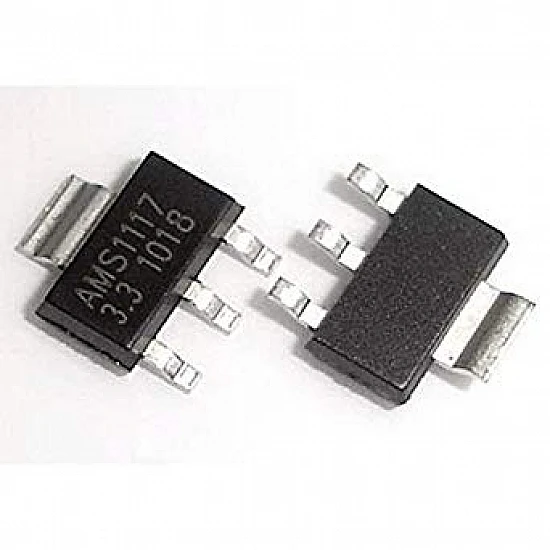

AMS1117 3.3V,1A LDO Voltage Regulator - SOT-223
₹9

(inc GST)

  • Stock: In Stock
  • SKU: FR-05-631
    10 or more ₹8
    50 or more ₹7



The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry.

Features:



  • Output Voltage: 3.3V
  • Output Current of 1A
  • Operates Down to 1V Dropout
  • Line Regulation: 0.2% Max.
  • Load Regulation: 0.4% Max.
  • SOT-223 package

Application:

  • High-Efficiency Linear Regulators
  • Post Regulators for Switching Supplies
  • 5V to 3.3V Linear Regulator
  • Battery Chargers
  • Active SCSI Terminators
  • Power Management for Notebook
  • Battery Powered Instrumentation



Applications:



  • Used for Positive voltage regulations
  • Variable power supply
  • Current limiting circuits
  • Reverse polarity circuits
  • Commonly used in Desktop PC, DVD and other consumer products
  • Used in motor control circuits
  • So if you are looking for SMD component voltage regulator then this IC might be the right choice for you.





Datasheet: Download







Package Content:

1 x AMS1117 IC 3.3V, 1A LDO Voltage Regulator - SOT-223
