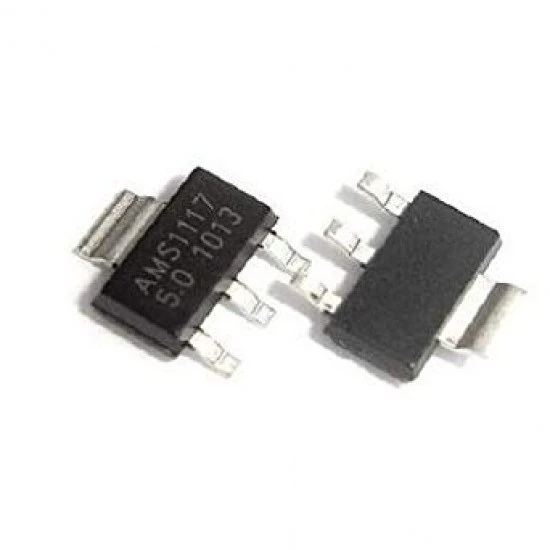

LM1117 5 Volt SOT223 Voltage Regulator IC

LM1117 5 Volt SOT223  Voltage Regulator IC - ICs - Integrated Circuits & Chips - Core Electronics
LM1117 5 Volt SOT223  Voltage Regulator IC - ICs - Integrated Circuits & Chips - Core Electronics
Out Of Stock
LM1117 5 Volt SOT223  Voltage Regulator IC - ICs - Integrated Circuits & Chips - Core Electronics
LM1117 5 Volt SOT223  Voltage Regulator IC - ICs - Integrated Circuits & Chips - Core Electronics
LM1117 5 Volt SOT223 Voltage Regulator IC
₹9

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹1 FlyRobo Cashback.
  • SKU: FR-05-611
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

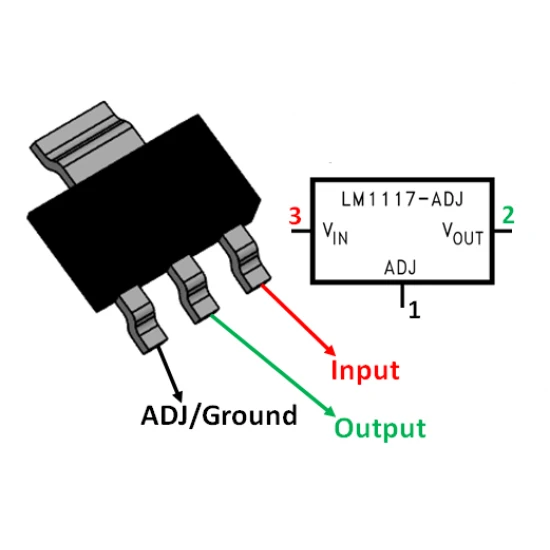

Pin Configuration

Pin Number

Pin Name

Description

1

Adjust/Ground

This pin adjusts the output voltage if it is a fixed voltage regulator it acts as a ground

2

Output Voltage (Vout)

The regulated output voltage set by the adjust pin can be obtained from this pin

3

Input Voltage (Vin)

The input voltage which has to be regulated is given to this pin

Features:
  • Fixed/Adjustable 3-terminal Linear voltage regulator
  • Fixed Voltage type:  5V
  • Output current is 800mA
  • In-built Current Limiting and thermal protection.
  • Operating junction temperature is 125°C
  • SOT223 Package

Where to use LM1117 IC?

  • Just like the famous 7805 and LM317, the LM1117 is another Linear Voltage regulator. It is known for its small form factor since it is available as a DCY Package (SMD Component). There are many types of LM1117, the fixed types provide a fixed output voltage of 1.8V, 2.5V, 3.3V or 5V and the variable voltage regulator can have a variable voltage from 1.25V to 13.8V.


Applications:

  • Used for Positive voltage regulations
  • Variable power supply
  • Current limiting circuits
  • Reverse polarity circuits
  • Commonly used in Desktop PC, DVD and other consumer products
  • Used in motor control circuits
  • So if you are looking for SMD component voltage regulator then this IC might be the right choice for you.


Datasheet: Download


Package Content:

1 x LM1117 5Volt SOT223  Voltage Regulator IC
