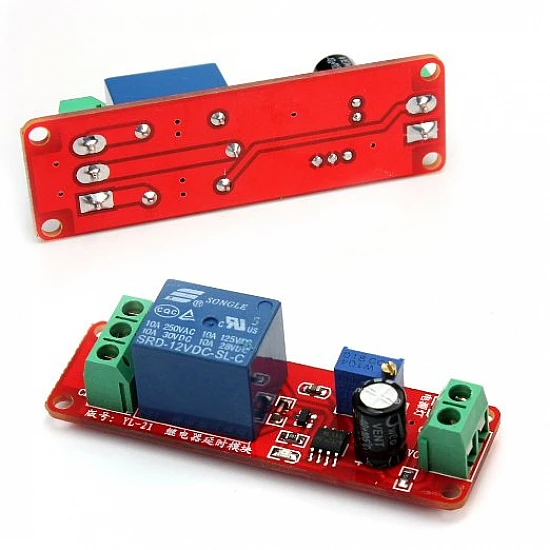

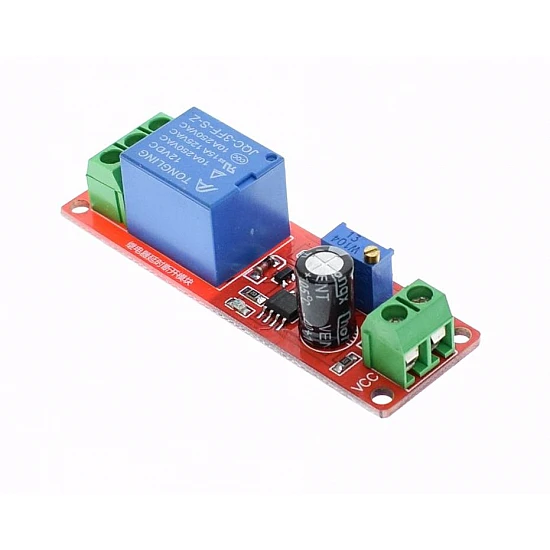

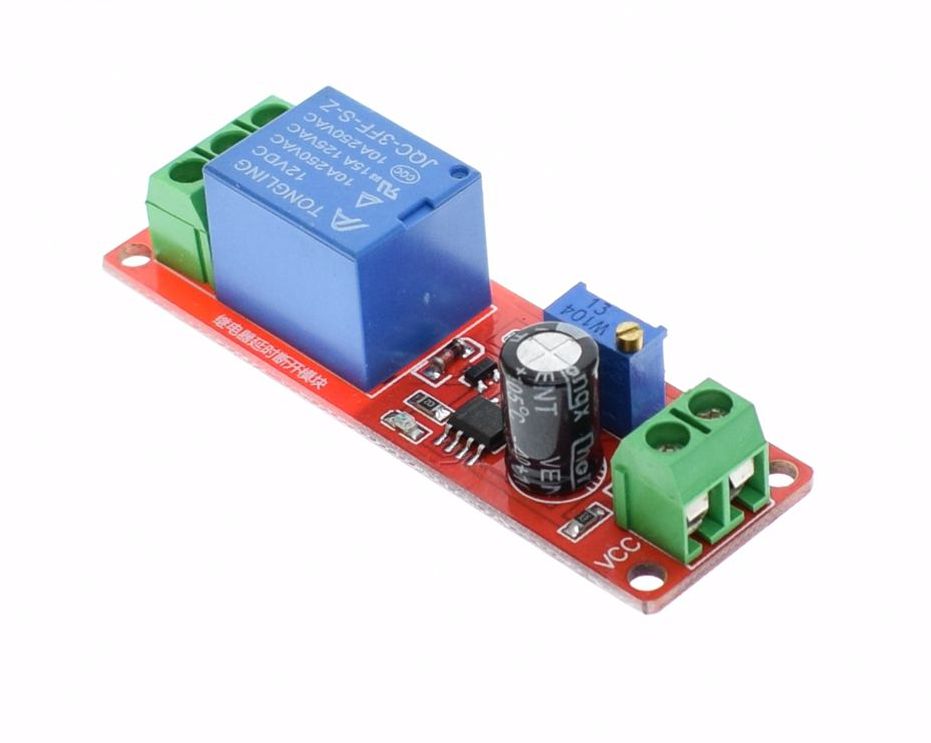

NE555 Delay Timer Switch Adjustable 12V Relay Module

NE555 Delay Timer Switch Adjustable 12V Relay Module
NE555 Delay Timer Switch Adjustable 12V Relay Module
-9 %
NE555 Delay Timer Switch Adjustable 12V Relay Module
NE555 Delay Timer Switch Adjustable 12V Relay Module

NE555 Delay Timer Switch Adjustable 12V Relay Module
₹99
₹109

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-731

NE555 Time Delay Monostable Switch with Electrical Relay 12V is a monostable generator based on the NE555 integrated circuit. The power indicator LED and switch trigger timing indication LEDs. Timing from microseconds to long hours.

This is a monostable generator based on the NE555 integrated circuit. It has an adjustable delay time from 0 to 10 seconds using the potentiometer or by changing the capacitance. It is also capable of controlling the device below 220V/10A.

Applicable to vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.

Features :

  • Standby no power consumption
  • Precision Pulse Generation / Timing.
  • Excellent temperature stability of 0.005%/°C
  • Monostable Operation.
  • Module signal side design has optocoupler isolation, the anti-interference ability can adapt to the high-low level two kinds of control signal application, suitable for industrial control.
  • Time can be adjusted by a potentiometer, the default is 0-25 seconds.

Package Includes :

1 x NE555 Delay Switch Module.

Technical
IC Chip

NE555

Adjustable Time

0 to 10 s

Control Voltage (AC)

250V @max. 10A

Control Voltage (DC)

30V @max. 10A

Input Voltage

12 V

Max. Load

2200 W

Trigger Current

20 mA

Trigger Voltage

12 V

Length

6.8 cm

Height

1.8 cm

Width

2.2 cm
