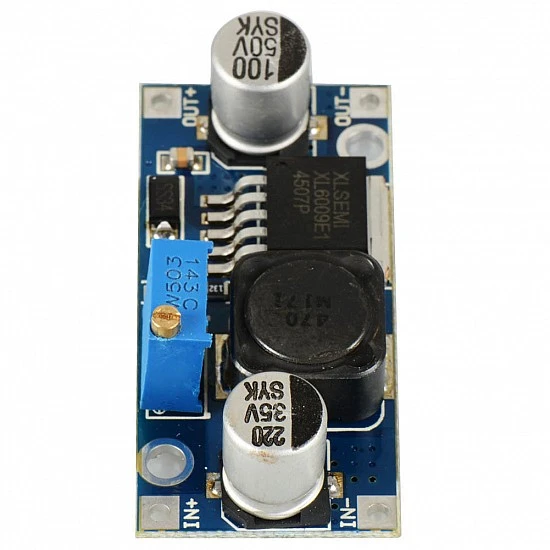

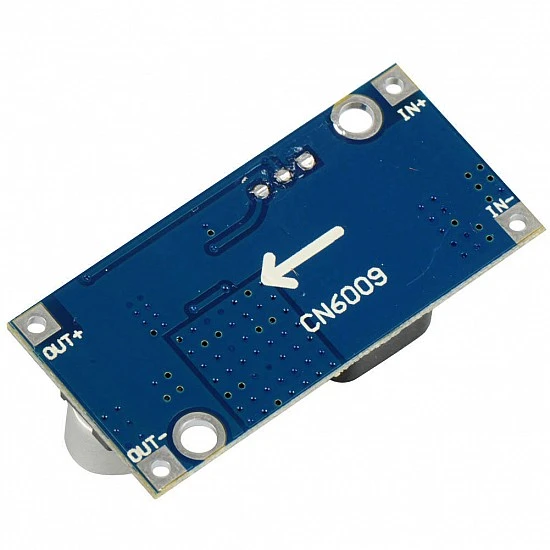

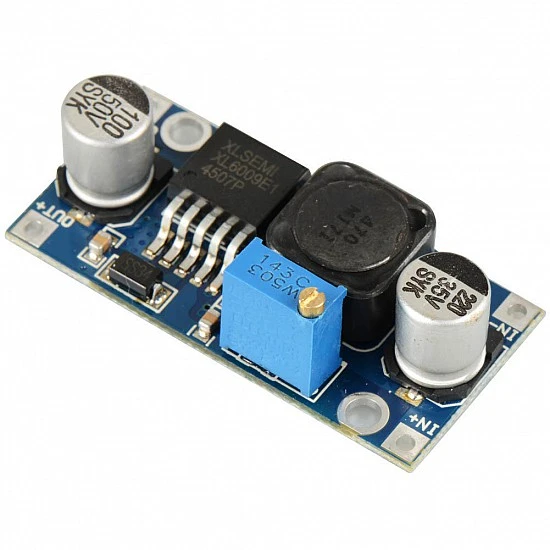

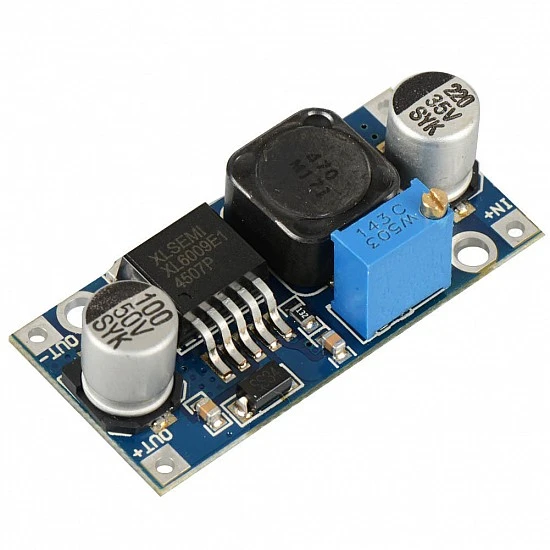

XL6009 DC-DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.
The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.
It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.
- IN+ input positive
- IN- input negative!
- OUT+ output positive
- OUT- output negative
- The performance is much higher than the LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Small and Handy voltage regulator module.
Package Includes :
1 x XL6009 DC-DC Step-up converter.
You can input voltage 3V ~ 32V and boost it up to 5V ~ 35V as output.[ 02/07/2021 ]Was this answer helpful?
