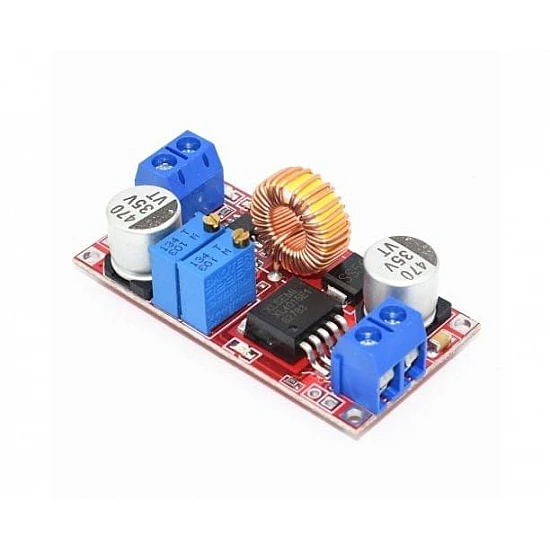

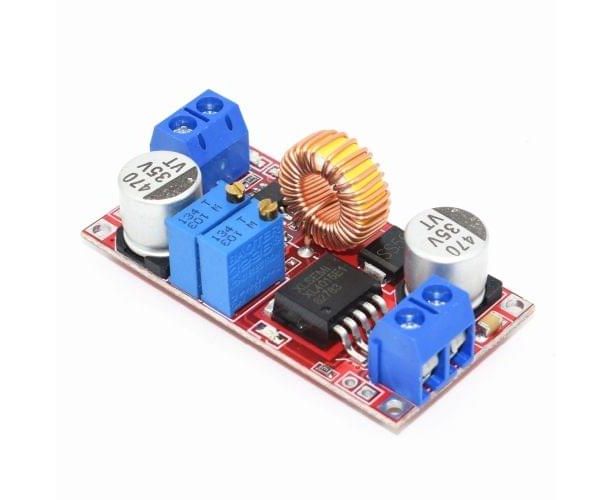

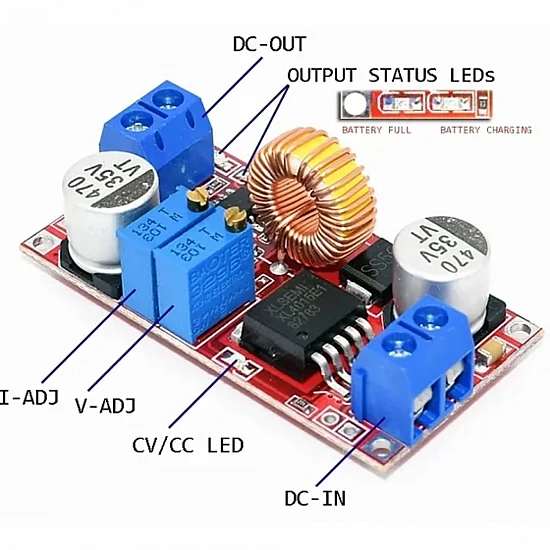

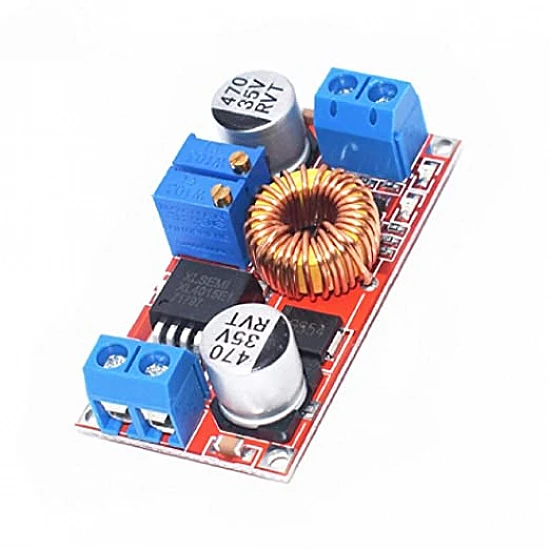

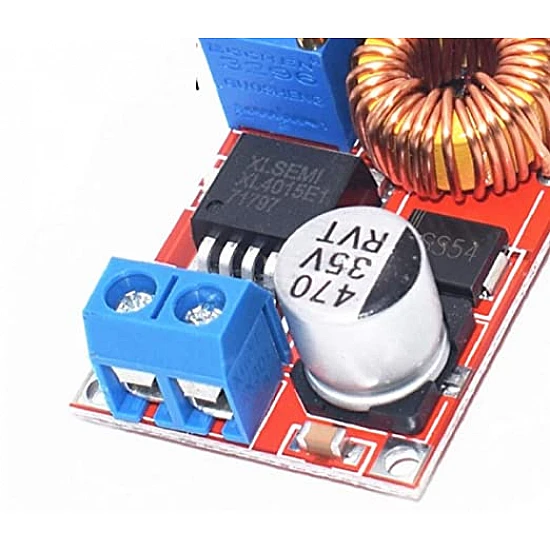

XL4015 5A DC-DC Adjustable Step Down Power Supply Module

XL4015 module is a 180 kHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 0-5A (Max) Adjustable load with high efficiency, low ripple, and excellent line and load regulation. Use as a step-down module with overcurrent protection capabilities.

This module has an adjustable output Voltage and Current. It can also be used as a dedicated charger for Lithium Batteries (Li-Ion, LiPo) as it is capable of CC-CV.

Features :

• High efficiency up to 96%
• The built-in thermal shutdown function
• Built-in current limit function
• In-Built output short protection function
• Input reverse polarity protection: None (if required, the high current diode in series with the input).

Applications :

•  Use as a step-down module.
•  Use as a battery charger
•  Use as a LED constant current driver module

Package Includes :

1 x XL4015 5A DC-DC Step Down Adjustable Power Supply Module
