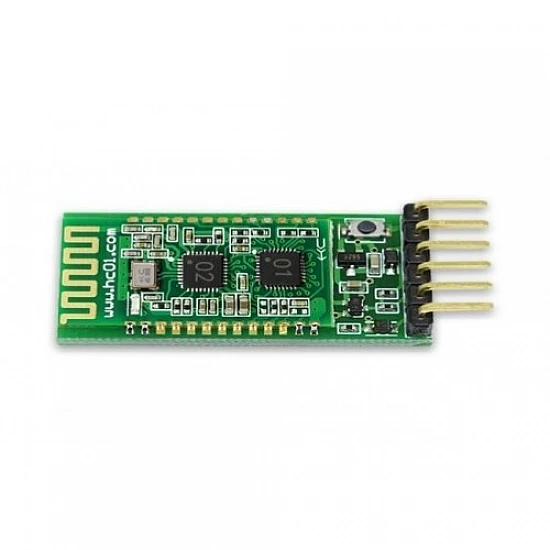

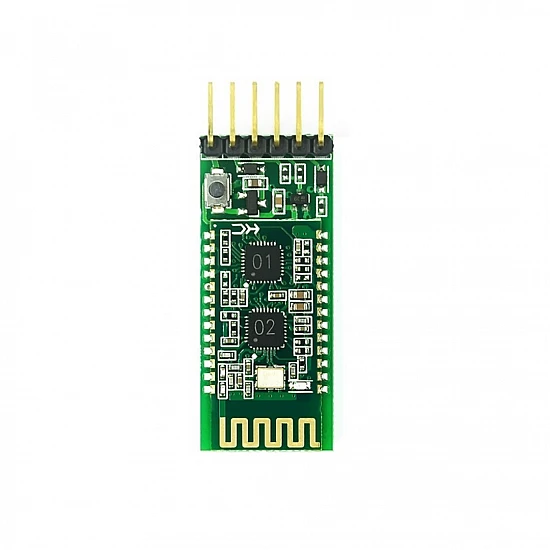

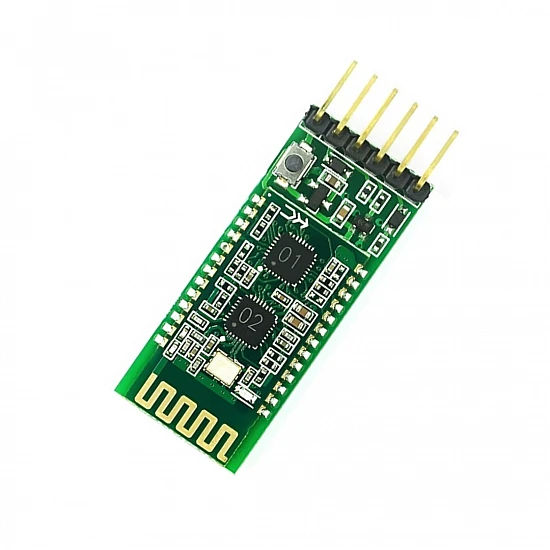

HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module

HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
-16 %
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module
₹585
₹699

(inc GST)

  • Stock: In Stock
  • ₹5 FlyRobo Cashback.
  • SKU: FR-01-100
    5 or more ₹576
    15 or more ₹571

HC-02 Bluetooth serial communication module is based on the Bluetooth V2.0 Bluetooth protocol data transmission module, high stability, ultra-low power consumption, industrial-grade Bluetooth data transmission module.

You can directly connect devices through the TTL serial port. Powered the HC-02 module, and can be connected to the mobile phone for data transmission. In addition, it can be used with HC-05 or HC-06 hosts to connect, can replace a traditional serial line, save wiring work. It’s very flexible.

Features:

  • Compatible with HC-05 and HC-06 Bluetooth serial port module, Bluetooth 2.0 with EDR, 2 MBPS - 3 MBPS modulation
  • Built-in 2.4 GHz antennas, users need to debug the antenna
  • Support transparent transmitted with Android smartphone and notebook computer
  • Support transparent transmitted with desktop computer via HC-06-USB

Package Includes:

1 x HC-02 Bluetooth Module Dual Mode Wireless Bluetooth Serial Port Transmission Compatible with HC-05/06 Module

Technical
Model

HC-02

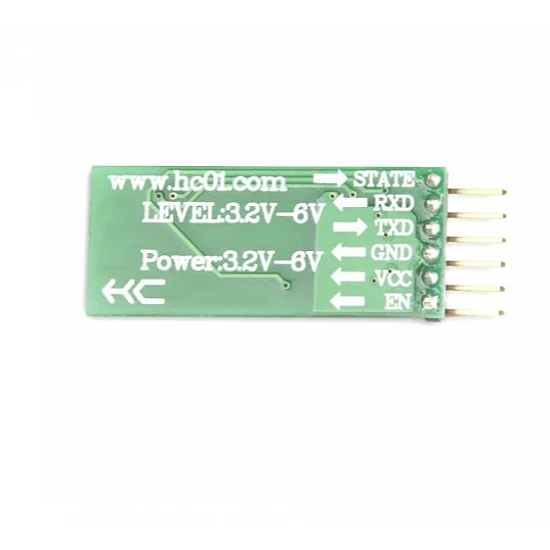

Communication Interface

UA pin 3.3V TTL level

Current

30mA

Input Voltage

3.2 ~ 6V

Operating Temperature Range

-25°C to 75°C

Operating Voltage

3.0 ~ 3.6V

Transmit Power

6dBm (max)

Working Frequency

2.4G

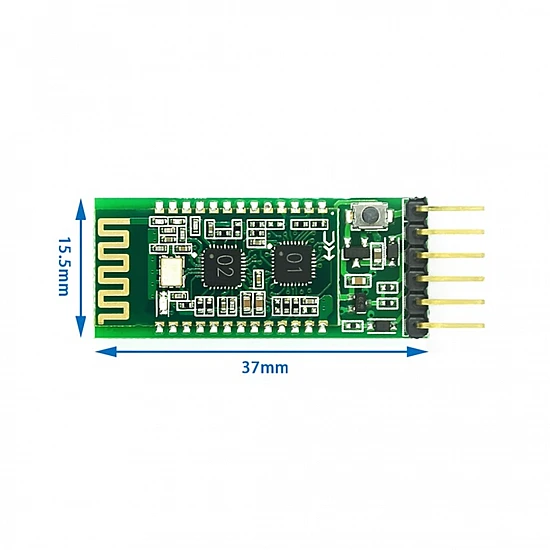

Length

37 mm

Height

5 mm

Width

15.5 mm
