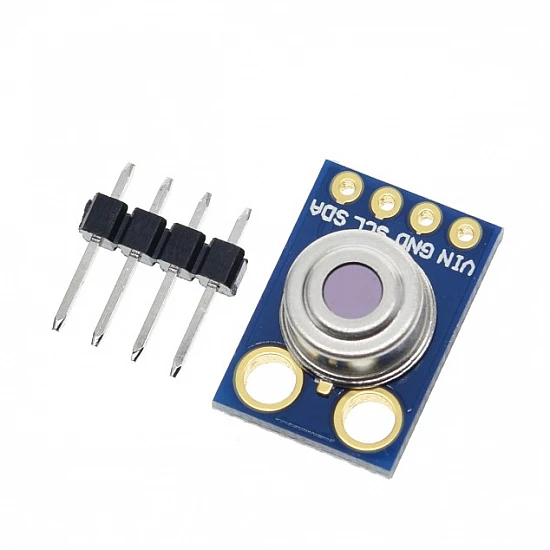

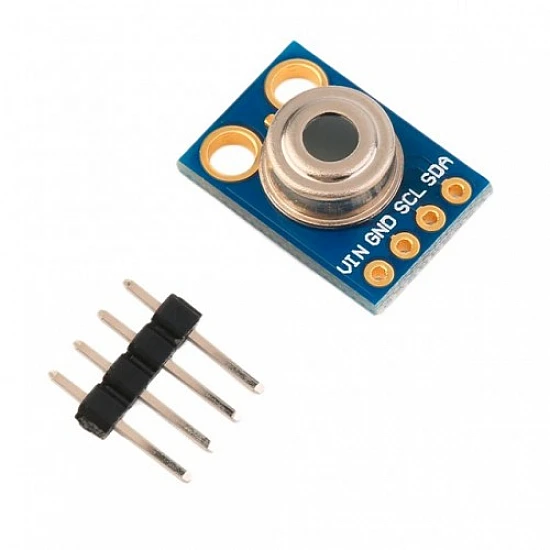

GY-906 MLX90614 INFRARED Contactless Temperature Sensor

This GY-906 MLX90614 is a contactless temperature sensor module. This uses infrared to measure the temperature without touch the object.

Features:

  1. Easy to integrate
  2. Mounted on a breakout board with two types of pins
  3. SMBus compatible digital interface
  4. 10k Pull up resistors for the I2C interface with optional solder jumpers
  5. Factory calibrated in temperature range:
    1. -40+125°C for sensor temperature
    2. -70+380°C for object temperature
  6. High accuracy of 0.5°C over wide temperature range (+50°C for both) High (medical) accuracy calibration
  7. The measurement resolution of 0.02°C
  8. Different package options for applications and measurements versatility
  9. Single and dual-zone versions
  10. Customizable PWM output for continuous reading

Applications:

  1. High precision non-contact temperature measurements
  2. Body temperature measurement
  3. Automotive blind angle detection
  4. Thermal relay/alert
  5. Movement detection
  6. Multiple zone temperature control – up to 127sensors
  7. Livestock monitoring

Package Content:

1 x GY-906 MLX90614 INFRARED Contactless Temperature Sensor

Write a review

Note: HTML is not translated!
Bad Good
Technical
Communication Interface

I2C

Operating current

2 mA

Operating Voltage

3.3-5V
