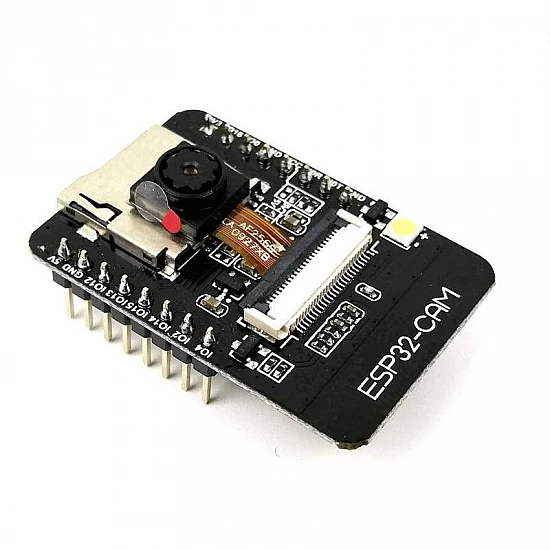

ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module

ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module
ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module
ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module
-24 %
ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module
ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module
ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module

ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module
₹649
₹849

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹6 FlyRobo Cashback.
  • SKU: FR-01-793
  • The ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module based on the ESP32 chip with the additional facility of using a camera. The ESP32-CAM has a very competitive small-sized camera module that can operate independently as a minimum system.

    ESP32 CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications.

    Features:

    • Support OV2640 and OV7670 cameras with built-in flash
    • Low-power dual-core 32-bit CPU for application processors
    • Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
    • Support multiple sleep modes
    • Support for images WiFI upload
    • Embedded Lwip and FreeRTOS
    • Up to 240MHz, up to 600 DMIPS
    • Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
    • Support STA/AP/STA+AP working mode
    • Support for serial local upgrade and remote firmware upgrade (FOTA)
    • Support TF card
    • Support Smart Config/AirKiss One-click distribution network

    Package Includes:

    1 x ESP32 CAM WiFi Bluetooth Development Board with OV2640 Camera Module.




    Note:

    If you are finding a TTL programmer for the ESP32 cam then you should use CP2102 (5-pin) USB to TTL UART serial converter Module
    Many people use FT232RL USB to TTL to flash ESP 32 CAM but they got a problem. So, Our suggestion is to use CP2102 (5-pin) USB to TTL UART serial converter Module to flash ESP32 CAM






    Tutorial Videos:

    • For Beginners







  • ESP32 CAM Face Detection Door Lock System



Technical
Model

ESP32-CAM

Antenna Type

IPEX and PCB

Bluetooth Version

4.2

Custom IO Port

9

Input Voltage

3.6 ~ 5 V

Operating Temperature Range

-20 to 80 °C

RAM Size

520KB SRAM +4M PSRAM

Receiving Sensitivity

54 Mbps (3/4 64-QAM): -70dBm; 6 Mbps (1/2 BPSK): -88dBm; CCK, 1 Mbps : -90dBm; CCK, 11 Mbps: -85dBm; MCS7 (65 Mbps, 72.2 Mbps): -67dBm.

Security

WPA/WPA2/WPA2-Enterprise/WPS

SPI Flash

Default 32Mbit

Transmit Power

802.11b: 17±2 dBm (@11Mbps); 802.11g: 14±2 dBm (@54Mbps); 802.11n: 13±2 dBm (@MCS7).

UART Baudrate

Default 115200 bps

WIFI

802.11 b/g/n/e/i

Length

4.1 cm

Height

0.5 cm

Width

2.7 cm
