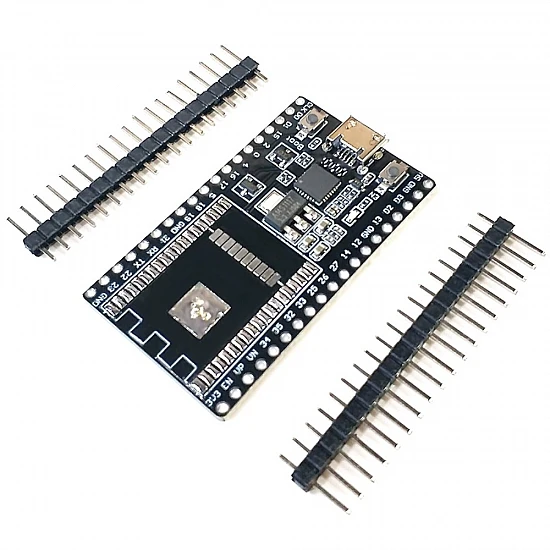

ESP32-DevKitC Baseboard Adapter PCB for WROOM-32D WROVER

The ESP32-DevKitC Baseboard Adapter PCB is a highly versatile minimum system development board template designed for makers and engineers who want to build custom ESP32 hardware. This bare breakout board allows you to easily solder surface-mount ESP32-WROOM-32, WROOM-32D, WROOM-32U, or WROVER modules. It solves the challenge of prototyping with bare modules by breaking out all essential pins to breadboard-friendly headers while providing the necessary programming and power infrastructure.

Equipped with an onboard Micro-USB interface, a high-speed USB-to-UART converter chip, and an automatic download circuit, this baseboard makes flashing firmware effortless. It features a robust 3.3V LDO regulator to handle the high current demands of ESP32 Wi-Fi and Bluetooth transmissions, alongside dedicated EN (Reset) and BOOT tactile switches. It is the perfect choice for custom IoT nodes, smart home gateways, and academic projects where module flexibility is required.

Features:

• Multi-Module Compatibility: Perfectly fits ESP32-WROOM-32, WROOM-32D, WROOM-32U, and WROVER series modules.
• Onboard USB-to-UART: Integrated serial converter chip ensures reliable programming and debugging via Micro-USB.
• Auto-Flash Circuitry: Supports automatic firmware uploads from Arduino IDE, ESP-IDF, or MicroPython without manual button pressing.
• Breadboard Friendly: Dual-row pinouts with standard 2.54mm pitch make it easy to plug into standard breadboards.
• Integrated Power Regulation: Onboard LDO step-down regulator provides a stable 3.3V rail for the RF module.
• Tactile Controls: Features physical EN and BOOT buttons for manual reset and flashing control.

Package Includes:

1 x ESP32-DevKitC Baseboard Adapter PCB

2 x 19-Pin Male Header Strips (Unsoldered)
