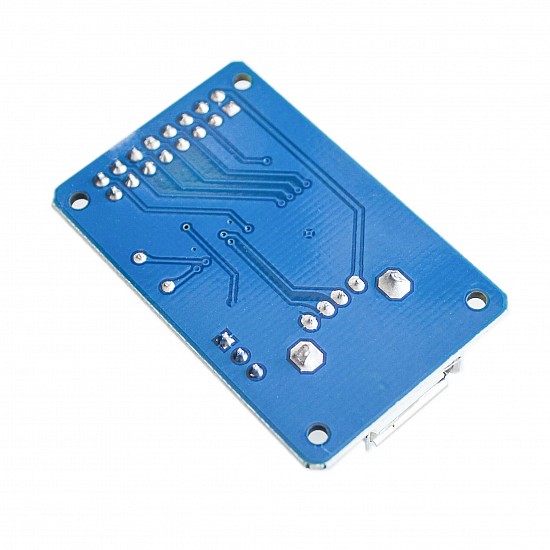

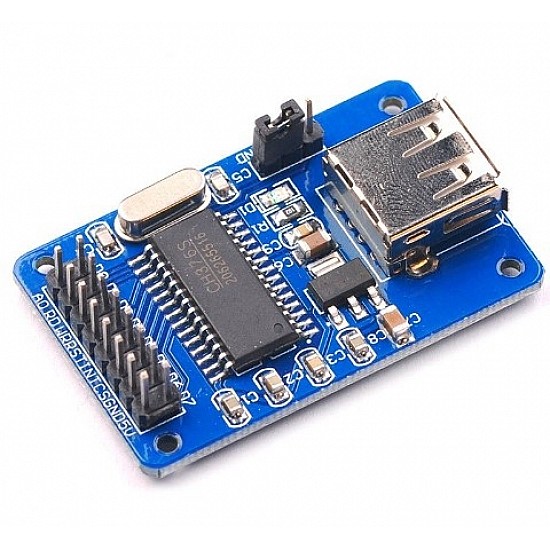

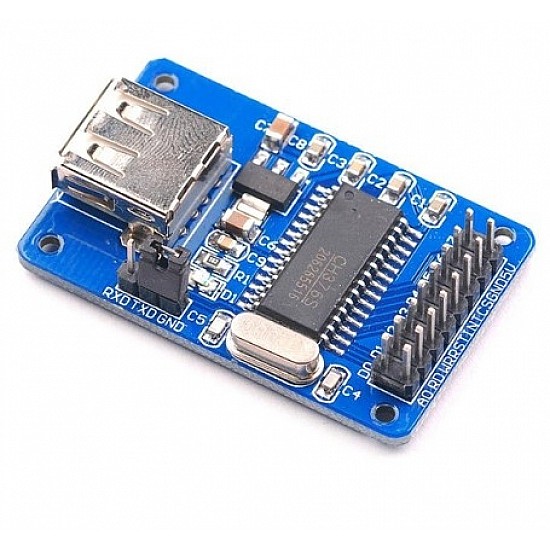

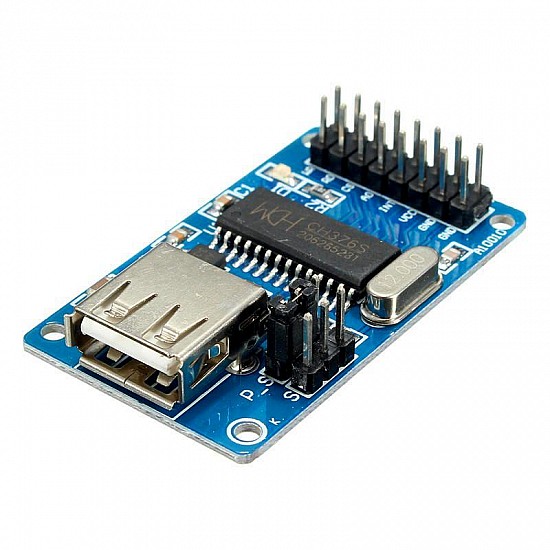

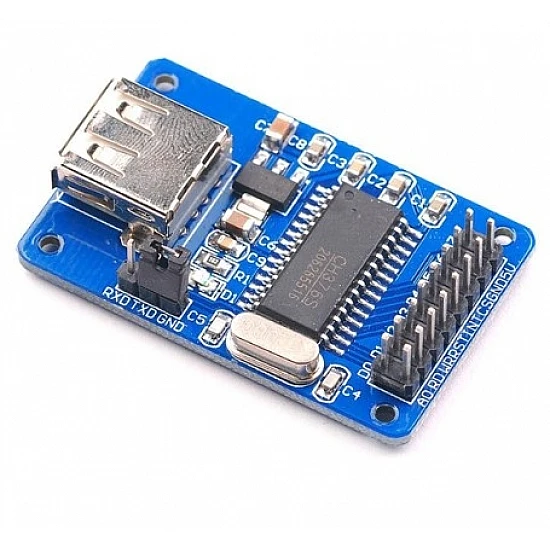

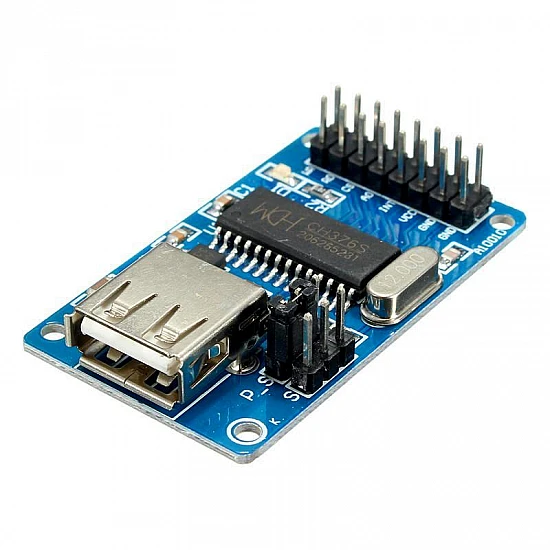

CH376S USB U Disk Read Write Module

CH376S USB U Disk Read Write Module
CH376S USB U Disk Read Write Module
CH376S USB U Disk Read Write Module
CH376S USB U Disk Read Write Module
-35 %
CH376S USB U Disk Read Write Module
CH376S USB U Disk Read Write Module
CH376S USB U Disk Read Write Module
CH376S USB U Disk Read Write Module
CH376S USB U Disk Read Write Module
₹251
₹389

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-01-561
    7 or more ₹244
    30 or more ₹240

CH376S USB U Disk Read Write Module supports USB-Device Mode and USB-HOST Mode. It is used as a file manage control chip, used to MCU system read/write a file in USB Flash Drive or SD card.

Features:

  • Chip: CH376S
  • File operation is simple and fast.
  • It supports three communication interfaces: 8-bit parallel, SPI interface, and asynchronism serial interface.
  • It supports USB thumb drives, USB hard drives, USB flash drives, and USB storage devices, USB card reader
  • It also supports standard size SD cards, HC-SD cards, and compatible high capacity MMC, TF cards.

Package Includes:

1 x CH376S USB U Disk Read Write Module.


Technical
Model

CH376S

Data Transfer Rate

2MBPS

Interface

SPI

Operating Voltage

5 VDC

Supported Formats

FAT12, FAT16, FAT32

Length

48 mm

Height

10 mm

Width

28 mm
