BMP180 Digital Barometric Pressure Sensor Shield for D1 MINI

BMP180 Digital Barometric Pressure Sensor Shield for D1 MINI
BMP180 Digital Barometric Pressure Sensor Shield for D1 MINI
BMP180 Digital Barometric Pressure Sensor Shield for D1 MINI
BMP180 Digital Barometric Pressure Sensor Shield for D1 MINI
BMP180 Digital Barometric Pressure Sensor Shield for D1 MINI
BMP180 Digital Barometric Pressure Sensor Shield for D1 MINI

BMP180 Digital Barometric Pressure Sensor Shield for D1 MINI
₹189

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-129

BMP180 Digital Barometric Pressure Sensor Shield for the D1 Mini allows for precise measurement of atmospheric pressure and temperature and can be connected over WiFi. It is combined with a D1 Mini ESP8266 board, this information can be communicated via the internet and be used to control a system.

Features:

  • Interface: I2C
  • I2C port, include temperature output and temperature compensation, MSL 1 response time:7.5ms
  • Applications: Enhancement of GPS navigation (dead-reckoning, slope detection, etc), Indoor and outdoor navigation; Leisure and sports; Weather forecast; Vertical speed indication (rise/sink speed).

Package Includes:

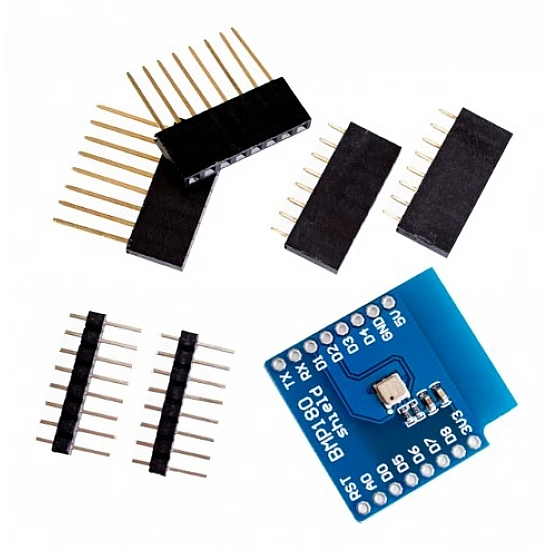

1 x BMP180 Digital Barometric Pressure Sensor Shield

Technical
Interface

12C

Operating Temperature Range

-40°C to 85°C

Pressure Range

300 to 1100 hPa

Voltage

3.3V

Length

28 mm

Height

2 mm

Width

26 mm
