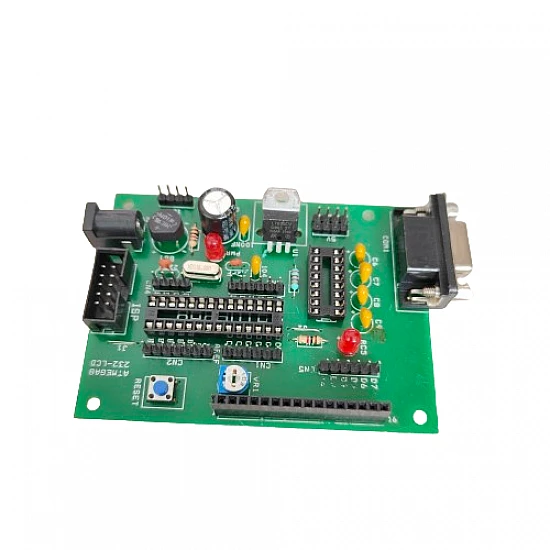

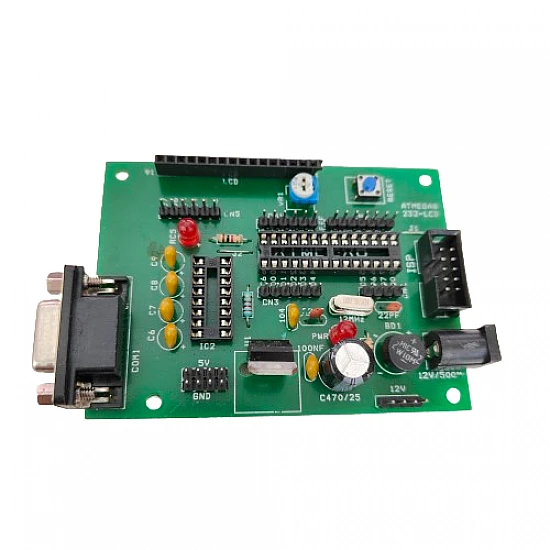

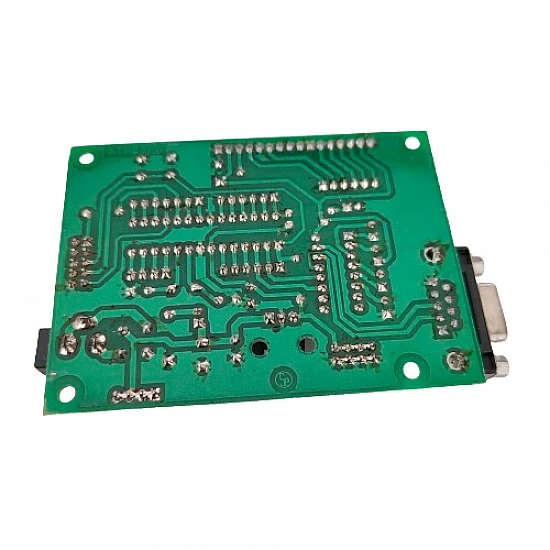

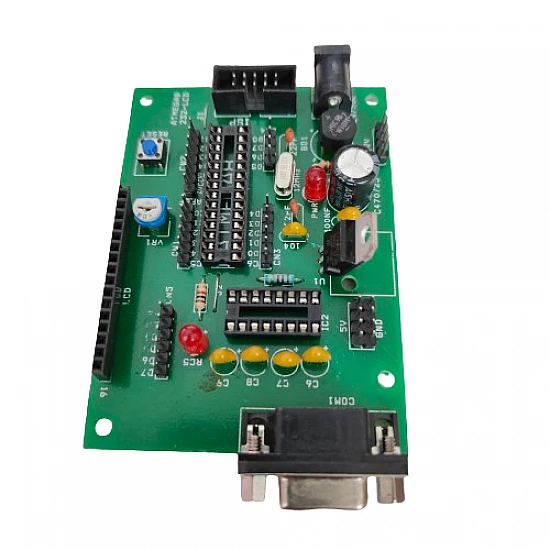

AVR 40 pin Quick Development board

AVR 40 pin Quick Development board Arduino Board Arduino
Out Of Stock
AVR 40 pin Quick Development board
₹709

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹8 FlyRobo Cashback.
  • SKU: FR-01-455

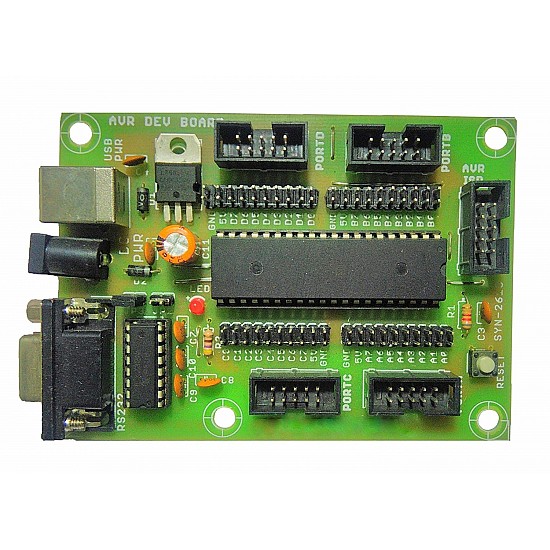

AVR 40 Pin development Board is ideal for learning AVR microcontrollers. This board contains requirements like LEDs, Switches, in-system programming, RS232 communication, etc. All Ports of the controller are accessible through standard 10 pin FRC connector or simple header pins. Also, 34*11 general-purpose area of the normal grid is provided for extra development on the same board. This board supports many 40 pin controllers that have identical pin configurations like AT90S8535, ATMega16, ATMeg32, etc.

Specification:

  • Standard 40 Pin ATmega16/32 family microcontroller.
  • Onboard RS232 to TTL Converter.
  • Port extension header for all ports.
  • On-Board Power Regulator for Input Supply.
  • ISP Connector for Burning Controller.

Board Features

  • On-Board Regulator with filters and Operating voltage from 6V - 20 V
  • 8 LED's on PORTB selectable through DIP switch
  • 5 Switches including reset
  • Power Indicator LED
  • Power on/off toggle switch
  • 16MHz crystal for maximum speed
  • AREF setting potentiometer
  • JTAG Debugger port (Optional JTAGICE module at discounted rates)
  • In system programming through External Programmer (Selectable - See options above)
  • USART connector for External RS-232 Link PC (Selectable - See options above)
  • 34*11 Standard general-purpose area
  • 8 ADC/Standard servo compatible connectors
  • All ports accessible through standard 10 pin FRC connector and 10 pin male header (Including VCC and GND)
  • All required connectors included.


      ATMega16 Features

      • 16 KB of FLASH
      • 1KB of SRAM
      • 512 Bytes of EEPROM for data storage
      • 16 MIPS Processing Speed at 16 MHz
      • JTAG (IEEE std. 1149.1 Compliant) Interface
      • 32 I/O lines
      • Two 8-bit Timer/Counters with Separate Prescaler and Compare Modes
      • One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
      • Real-Time Counter with Separate Oscillator
      • Four PWM Channels
      • 8-channel, 10-bit ADC, 2 Differential Channels with Programmable Gain at 1x, 10x, or 200x
      • Byte-oriented Two-wire Serial Interface
      • Programmable Serial USART
      • Master/Slave SPI Serial Interface


      ATMega32 Features

      • 32 KB of FLASH
      • 2KB of SRAM
      • 1024 Bytes of EEPROM for data storage
      • 16 MIPS Processing Speed at 16 MHz
      • JTAG (IEEE std. 1149.1 Compliant) Interface
      • 32 I/O lines
      • Two 8-bit Timer/Counters with Separate Prescaler and Compare Modes
      • One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
      • Real-Time Counter with Separate Oscillator
      • Four PWM Channels
      • 8-channel, 10-bit ADC, 2 Differential Channels with Programmable Gain at 1x, 10x, or 200x
      • Byte-oriented Two-wire Serial Interface
      • Programmable Serial USART
      • Master/Slave SPI Serial Interface


      Datasheet:

      ATmega32A Datasheet : Download
      ATmega16 Datasheet : Download

      Package Content:

      1 x AVR 40 pin Quick Development board
