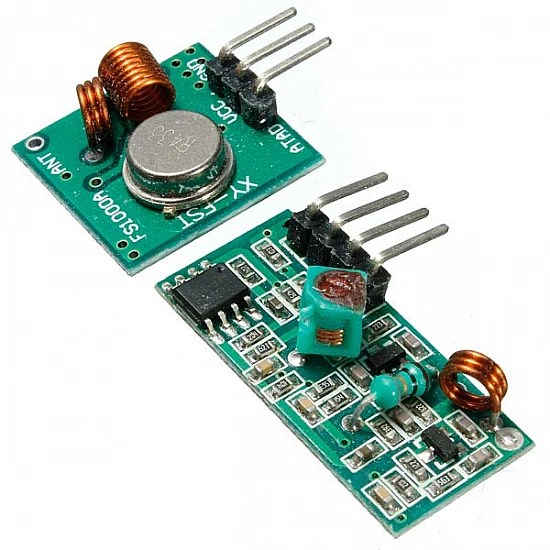

433Mhz RF Transmitter With Receiver Kit For Arduino ARM MCU Wireless

433Mhz RF Transmitter With Receiver Kit For Arduino ARM MCU Wireless - Sensor - Arduino
433Mhz RF Transmitter With Receiver Kit For Arduino ARM MCU Wireless - Sensor - Arduino
433Mhz RF Transmitter With Receiver Kit For Arduino ARM MCU Wireless - Sensor - Arduino
-9 %
433Mhz RF Transmitter With Receiver Kit For Arduino ARM MCU Wireless - Sensor - Arduino
433Mhz RF Transmitter With Receiver Kit For Arduino ARM MCU Wireless - Sensor - Arduino
433Mhz RF Transmitter With Receiver Kit For Arduino ARM MCU Wireless - Sensor - Arduino

433Mhz RF Transmitter With Receiver Kit For Arduino ARM MCU Wireless
₹99
₹109

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-637

This is a 433Mhz RF transmitter with a receiver kit for Arduino ARM MCU wireless. It can be used as a Remote control switch, electric doors, shutter doors, windows, remote control socket, remote control LED, remote control stereo, and alarm systems.

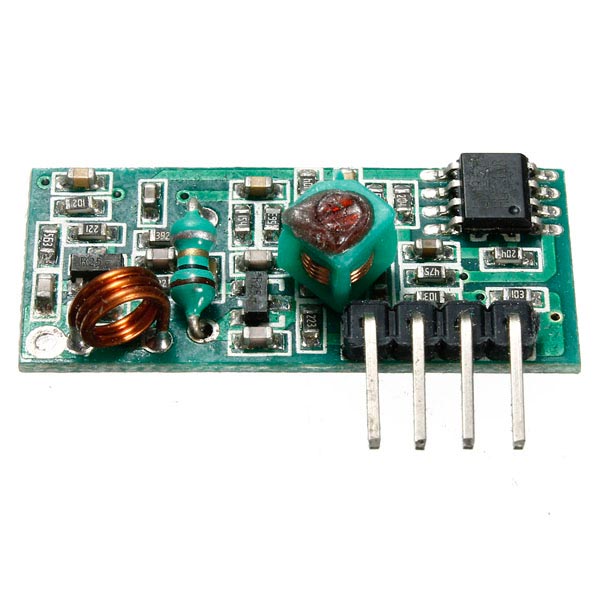

Specifications for Receiver module:

  • Operating voltage: DC5V
  • Quiescent Current: 4mA
  • Receiving frequency: 433.92MHZ
  • Receiver sensitivity: -105DB

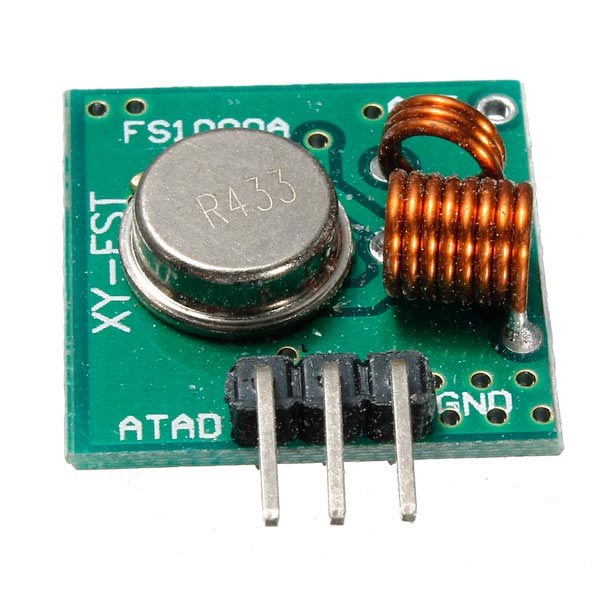

Specifications for transmitter module:

  • Launch distance:20-200 meters (different voltage, different results)
  • Transfer rate: 4KB / S
  • Operating mode: AM
  • Transmitting power: 10mW
  • Transmitting frequency: 433M
  • Pinout from left-right: (DATA; VCC; GND)
  • Operating voltage :3.5-12V

Applications:

  • Remote Controls
  • Automation System
  • Wireless Security System
  • Sensor Reporting
  • Car Security System
  • Remote Keyless Entry

Package Includes:

1 x Receiver module

1 x Transmitter

Technical
Operating current

20 – 28 mA

Operating frequency (TX)

433.92MHz

Operating voltage (TX)

3-12V

Operating voltage(RX)

5V

Output Power

10mW

Receiver frequency

433.92MHZ

Sensitivity

-105DB

Transfer rate

4KB / S

Transmission distance

20-200 meters (different voltage, different results)

Dimensions (LxWxH)

TX- 1.9 x 1.9 x0.8 cm, RX- 3 x 1.4 x 0.9 cm
