Ai-Thinker Ra-01 RF Transceiver Module

Ai-Thinker Ra-01 RF Transceiver Module
Ai-Thinker Ra-01 RF Transceiver Module
Ai-Thinker Ra-01 RF Transceiver Module
Ai-Thinker Ra-01 RF Transceiver Module
-7 %
Ai-Thinker Ra-01 RF Transceiver Module
Ai-Thinker Ra-01 RF Transceiver Module
Ai-Thinker Ra-01 RF Transceiver Module
Ai-Thinker Ra-01 RF Transceiver Module

Ai-Thinker Ra-01 RF Transceiver Module
₹389
₹419

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹3 FlyRobo Cashback.
  • SKU: FR-01-651

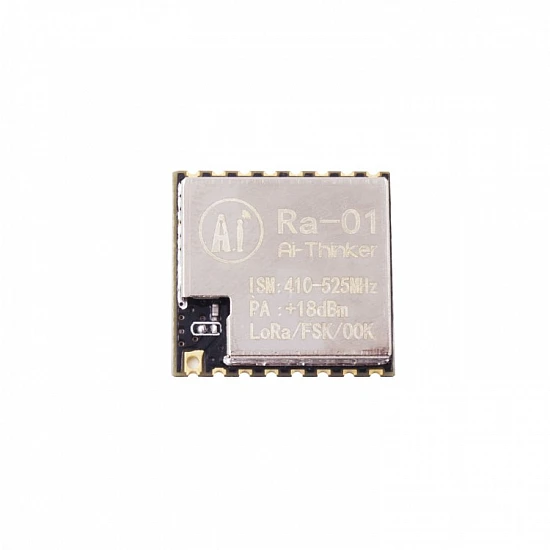

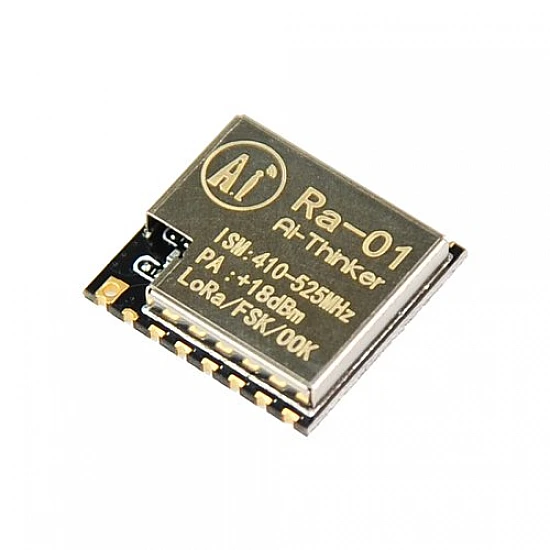

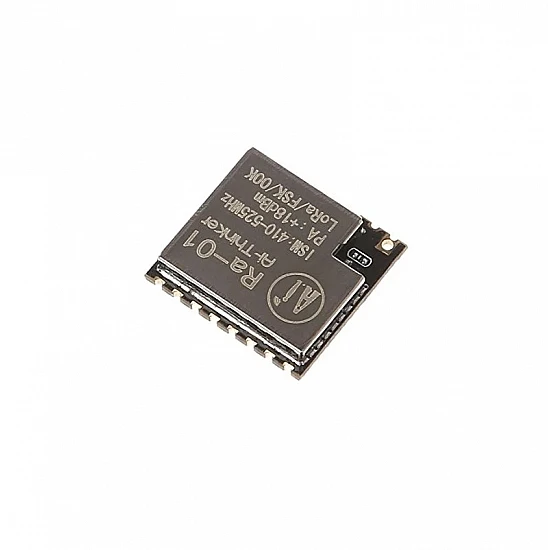

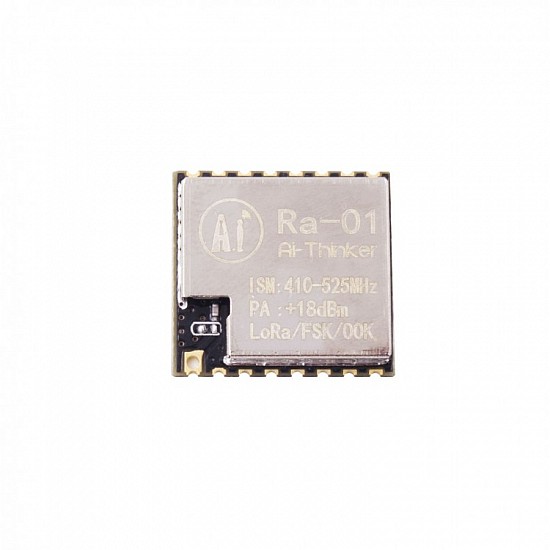

Developed by Ai-Thinker company, the manufacturer of the ESP32S, this Ra-01 LoRa (Long-range Radio) module will take your IoT projects the distance with communication over a long-range spread spectrum. This module uses SX1278 IC and works on a 433MHz frequency. Frequency hopping—which gives you that sweet balance of quality signal transmission—will cover a range of 420-450MHz. This long-range wireless capability is packed into a small (17 x 16mm) package and delivered through a spring antenna.

This form of wireless communication results in a larger bandwidth, increasing interference resistance, minimizing current consumption, and increasing security. At the same time, compared with the traditional modulation technology, LoRa™ Modulation technology in anti-blocking and selection also has obvious advantages, to solve the traditional design can not take into account the distance, interference, and power consumption.

Applications:

  • Wireless Alarm and Security Systems.

  • Automated Meter Reading.

  • Long-range Irrigation Systems.

  • Home and Building Automation.

  • Industrial Monitoring and Control.

Features:

  • 127dB RSSI wave range.

  • LoRaTM spread spectrum communication

  • Half-duplex SPI communication

  • Automatically detect RF signal, CAD mode, and super high-speed AFC

  • The programmable bit rate can reach 300kbps

  • Support FSK, GFSK, MSK, GMSK, LoRaTM, and OOK Modulation Mode

  • With metal shielding case

  • With CRC 256 bytes data engine

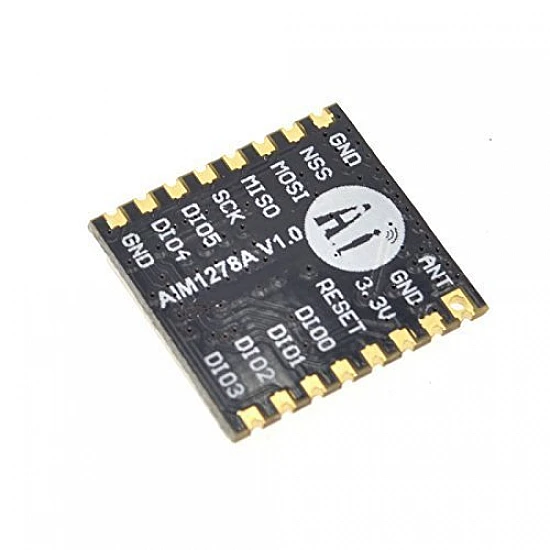

  • Half hole (castellated hole)  SMD package

Package Includes:

1 x Ai-Thinker Ra-01 RF Transceiver Module

Technical
Model

LoRa-Ra-01

Input Supply

2.5 ~ 3.7 VDC

Operating Temperature Range

-10 to 85 °C

Package/Case

SMD-16

Programmable bit Rate

UP to 300Kbps

Spectrum range

410-525MHz

Transmit Power

18±1 dBm (Max)

Dimensions (LxWxH)

1.8 X 1.6 X 0.33 cm
