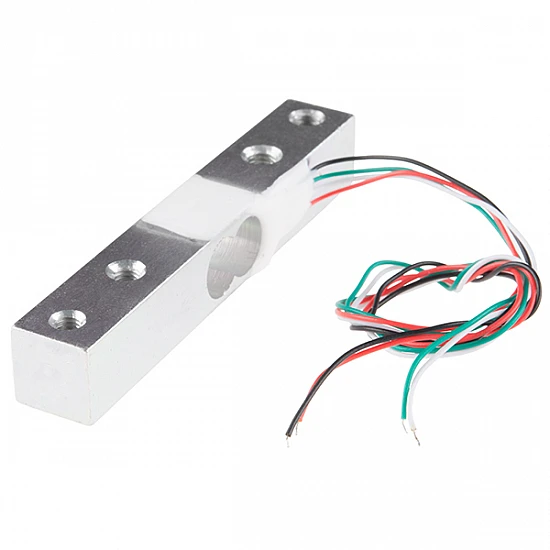

This Load Cell Weight Sensor can translate up to 1kg of pressure (force) into an electrical signal. Each load cell is capable of measuring the electrical resistance that changes in response to, and proportionality of, the strain (e.g. pressure or force) applied to the bar. With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

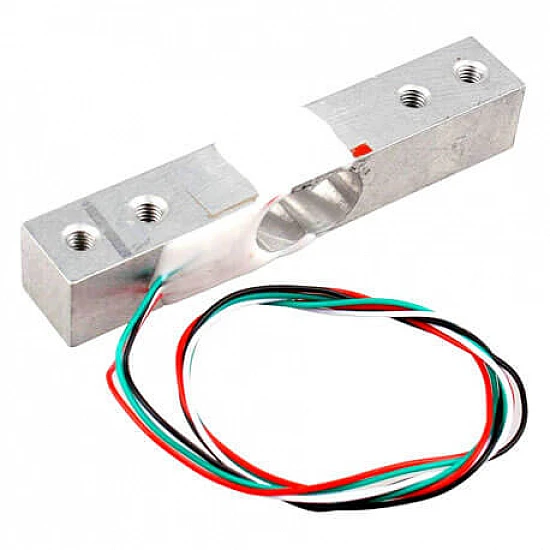

The load cell is made from an aluminum alloy and is capable of reading a capacity of 1kg. These load cells have four strain gauges that are hooked up in a Wheatstone bridge formation.
1 x 1KG Load Cell Weight Sensor.
0.05% F.S (5 minutes)
|Operating Temperature Range||
-20°C to 65°C
1.0 ± 0.1mV / V
0 - 1kg
± 0.1 mV/V
