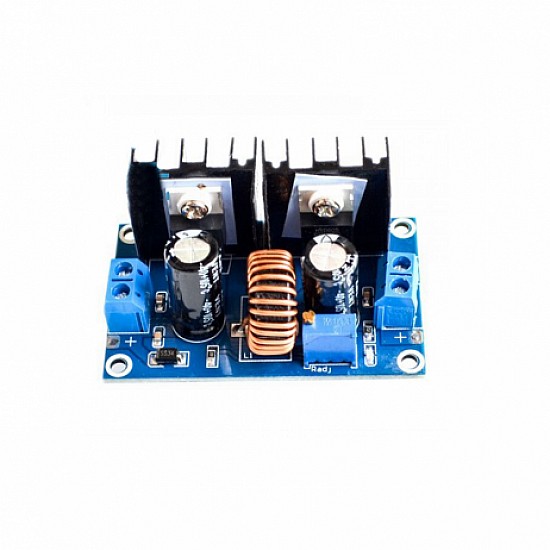

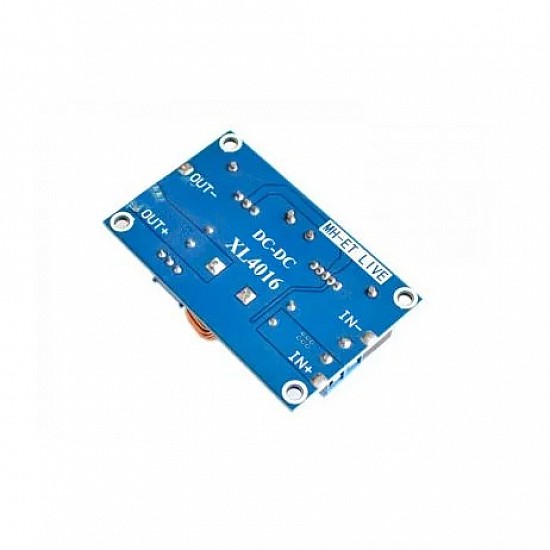

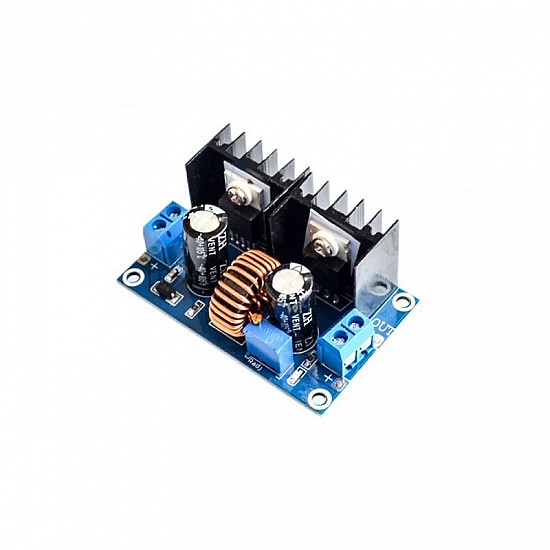

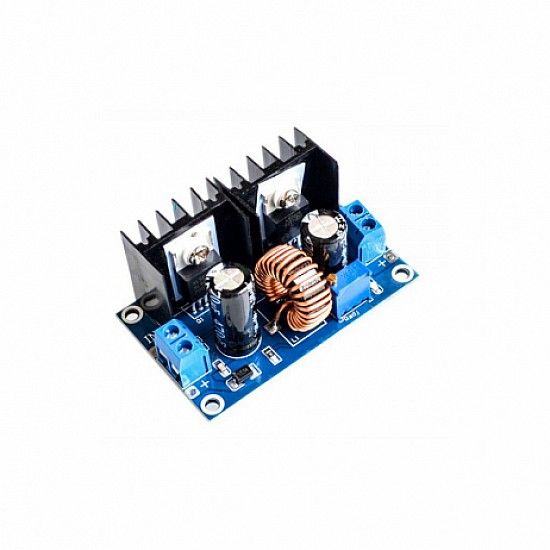

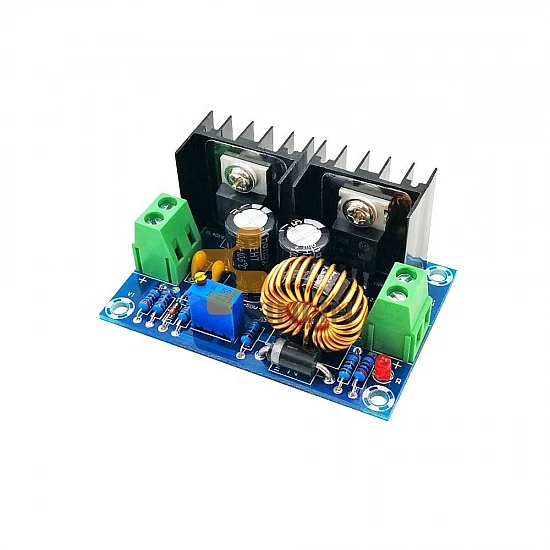

XL4016E1 200W Step Down Power Supply Module

XL4016E1 200W Step Down Power Supply Module
XL4016E1 200W Step Down Power Supply Module
XL4016E1 200W Step Down Power Supply Module
XL4016E1 200W Step Down Power Supply Module
XL4016E1 200W Step Down Power Supply Module
XL4016E1 200W Step Down Power Supply Module
XL4016E1 200W Step Down Power Supply Module
XL4016E1 200W Step Down Power Supply Module
XL4016E1 200W Step Down Power Supply Module
₹279

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-07-836
    7 or more ₹262
    30 or more ₹253

This XL4016E1 200W step-down power supply module has a voltage rating of 4-40VDC up to 1.25-36VDC. It is rated at a maximum power output of 200W. An external fan can be added to the heatsinks to increase the output current to 8A.

Features:

  • Method of adjustment: First, adjust the input power (between 4-40V), then use a multimeter to measure the output voltage and adjust the potentiometer (usually clockwise boost, buck counterclockwise).
  • Input: IN+ input positive IN- input negative
  • Output: OUT+ output positive OUT- output negative
  • The static power consumption of static electricity is approximately 6mA.
  • Connection: After the PCB is soldered, you can use welding to connect it.
  • Protection against short circuits: Current limiting, thermal protection, self-recovery
  • Non-isolated step-down (BUCK)switching regulator.
  • Short circuit protection: Current limiting, self-recovery
  • The direction of potentiometer adjustment is Clockwise (increase), and Anti-clockwise, respectively.
  • Non-synchronous rectification

Package Content:

1 x XL4016E1 200W Step-Down Power Supply Module

Technical
Current

8A

Frequency

180KHz

Input Voltage

4DCV ~ 38DCV

Operating Temperature Range

-45℃ ~ +85℃

Output Voltage

1.25DCV ~ 36DCV

Power

250W Max
