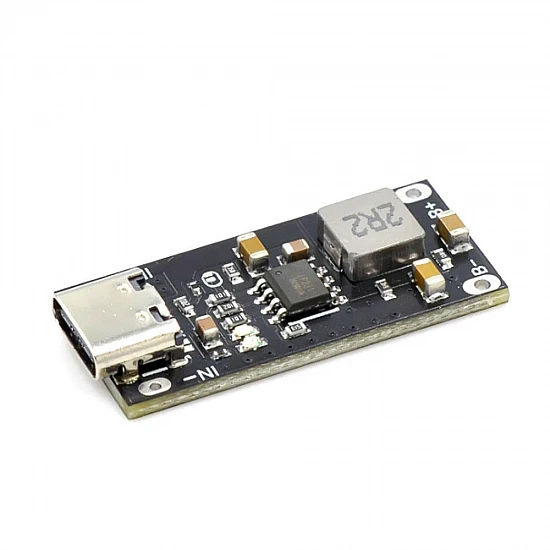

IP2312 3A Type-C Lithium Battery Charger Board 4.35V

The IP2312 3A Type-C Lithium Battery Charger Board is a high-efficiency, synchronous buck charging module designed specifically for 4.35V ternary lithium-polymer batteries. Powered by the advanced IP2312 charging IC, this compact board supports up to 3A of continuous charging current, significantly reducing charge times compared to traditional linear charging chips like the TP4056. It is the perfect solution for engineers and makers looking to integrate fast, reliable battery charging into their portable electronics and DIY power bank projects.

This module features a versatile Type-C input interface alongside dedicated solder pads for direct wire integration. It operates in three distinct charging phases: trickle charge, constant current (CC), and constant voltage (CV) mode, ensuring optimal battery health and longevity. Highly compatible with ESP32, Arduino, and Raspberry Pi battery-powered setups, this board provides a seamless power management solution for remote IoT sensor nodes and smart devices. You can easily find the IP2312 datasheet and circuit diagram online to customize the charging current by modifying the onboard programming resistor.

Features:

• High-Current Buck Charging: Delivers up to 3A charging current with high-efficiency synchronous switching.
• Precise Cut-off Voltage: Specifically calibrated for 4.35V ternary lithium batteries.

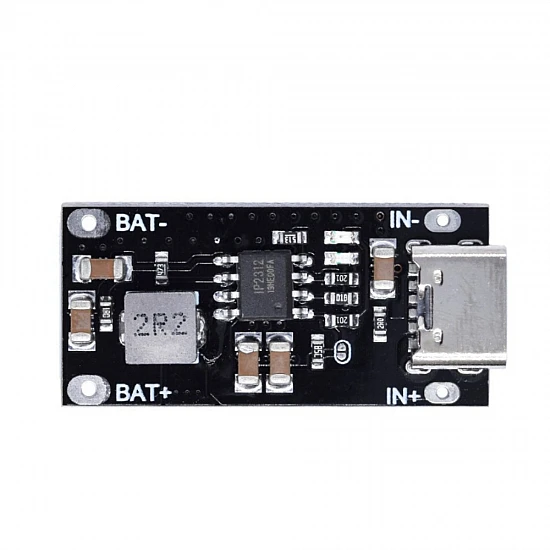

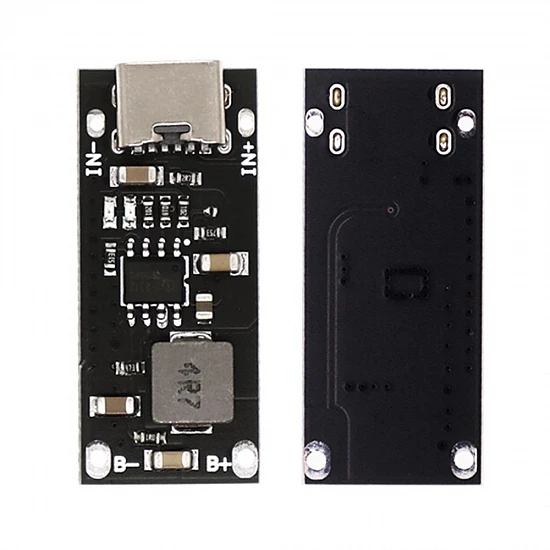

• Dual Input Options: Features a robust Type-C USB port and direct solder pads (IN+/IN-) for flexible wiring.
• Smart Charging Algorithm: Automatically transitions through trickle, constant current (CC), and constant voltage (CV) modes.
• Onboard LED Indicators: Clear visual feedback for charging status and full-charge state.
• Compact Form Factor: Ultra-small footprint makes it easy to embed in space-constrained enclosures.

Package Includes:

1 x IP2312 3A Type-C Lithium Battery Charger Board 4.35V
