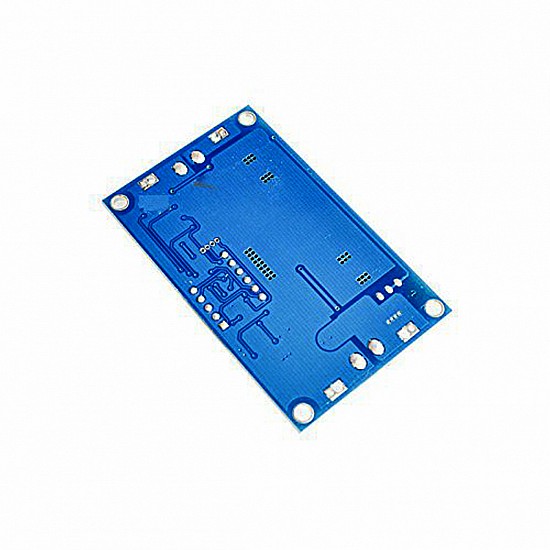

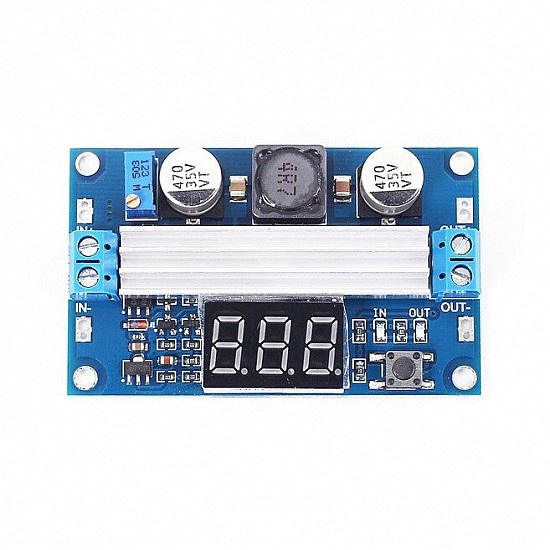

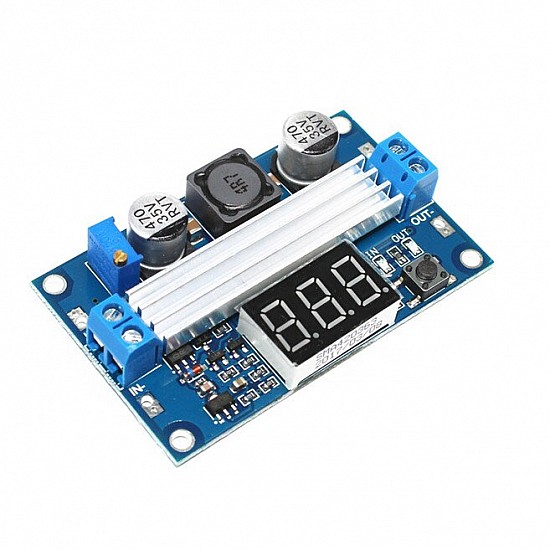

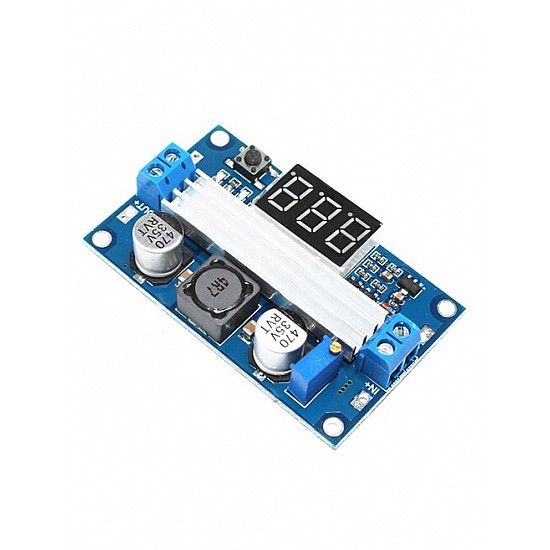

A compact but high-powered DC-DC step-up (boost) power supply converter module. The module features a wide operating supply range and a power supply input voltage between 3.5 to 35V that can step-up this input voltage from 4V to 35V.
The module includes an integrated voltage meter that can measure both the input and output voltages and a voltage selection button that allows for easy switching between the two.
Its high multi-turn precision potentiometer allowing for accurate desired output voltage within its supply range that can be conveniently set without the need of an external test meter.
- Short circuit protection available for limit current 14A
- Long-life type switching power supply
- special high-frequency high capacity and low resistance (low ESR)
- No input reverse polarity protection (if required, the high current diode in series with the input).
- the aluminum electrolytic capacitor to lower output ripple
1 x LTC1871 DC-DC Step-Up Boost Converter.
|Input Current||9 A (max)|
|Input Voltage||3~35 V|
|Onboard voltmeter range||4 to 40V, error ±0.1V|
|Output Current||6 A (max)|
|Output Voltage||3.5~35 V|
