DS3231 RTC Precise Real Time Clock Module
₹199

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹1 FlyRobo Cashback.
  • SKU: FR-01-737

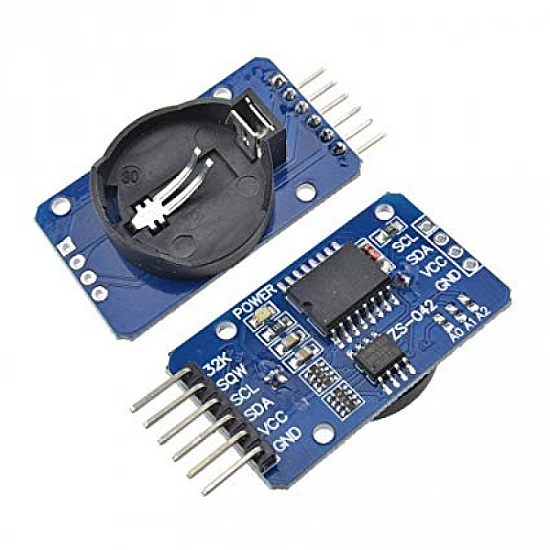

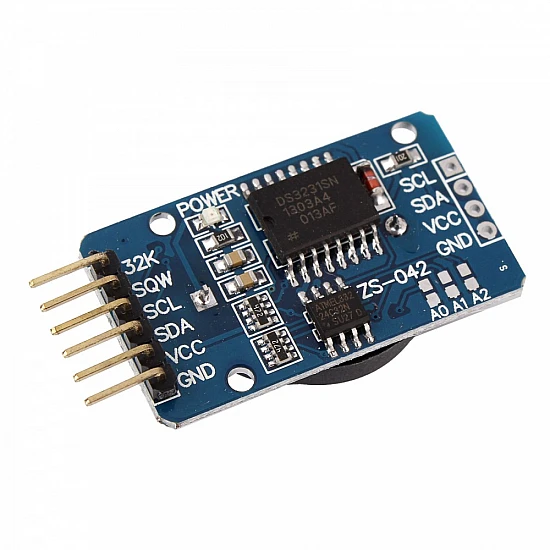

DS3231 Module is a high precise I2C real-time clock Module. This module made using AT24C32 and DS3231 RTC EEPROM integrated. It also has a built-in comparator which monitors the status of VCC to detect power failures and to automatically switch to the backup power supply. AT24C32 provides 32,768 bits of serial EEPROM organized as 4096 words of 8 bits each. This gives you 32Kb of non-volatile memory for your projects. This module can be easily interfaced with Arduino Boards, Raspberry Pi, and all Microcontrollers.

Features:

  • DS3231 based RTC with 2032 Battery Holder.
  • Highly Accurate RTC Completely Manages All Timekeeping Functions.
  • Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year, with Leap-Year Compensation Valid Up to 2100.
  • Digital Temp Sensor Output.
  • Register for Aging Trim.
  • Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
  • Two Time-of-Day Alarms.
  • Programmable Square-Wave Output Signal.
  • Battery-Backup Input for Continuous Timekeeping.
  • Low Power Operation Extends Battery-Backup Run Time.
  • 3.3V Operation.

buy CR2032 3V Lithium Coin Battery

Package Content:

1 x DS3231 RTC Precise Real-Time Clock Module



Note: This product does not come with a coin cell.


Technical
Accuracy

±2ppm from 0°C to +40°C, ±3.5ppm from -40°C to +85°C.

Battery

2032 Coin Battery.

Digital Temp Sensor Output

10 bit, ±3°C Accuracy, and 0.25C resolution.

EEPROM

AT24C32 32Kbit Serial I2C.

Interface Type

I2C Interface.

Operating Temperature Range

-40 to 85 °C

Operating Voltage

2.7 ~ 5.5 V

Time and Date Format

Time: HH: MM: SS (12/24 hr), Date Format: YY-MM-DD-dd.

Voltage Supply for RTC

2.2 ~ 5.5 V

Length

3.8 cm

Height

1.4 cm

Width

2.2 cm
