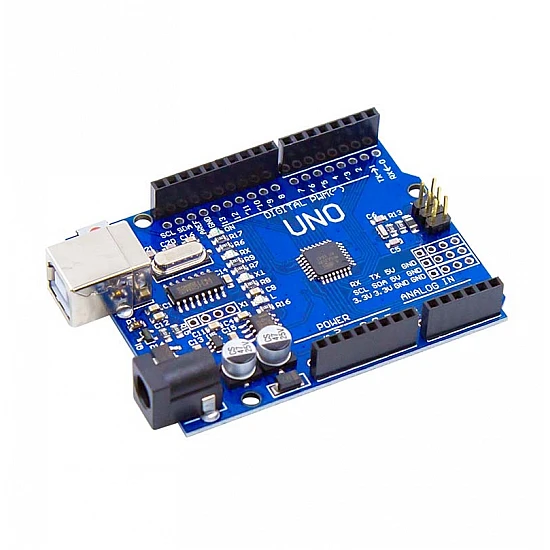

Arduino Uno R3 SMD Compatible Development Board

The Arduino Uno R3 Compatible Board is a microcontroller board which is based on the ATmega328. Arduino Uno has 14 digital input or output pins(where 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

  Features:

  • Easy application programming using open source IDE
  • Easy to learn Microcontroller using Arduino boards.
  • Easy application programming using open source IDE
  • Ready Library for most of the sensors and application modules.
  • More information on www.arduino.cc

 Specification:

Microcontroller ChipATmega328
Analog I/O Pins6
Digital I/O Pins14 (of which 6 provide PWM output)
DC Current per I/O Pin40 mA
DC Current for 3.3V Pin50 mA
SRAM2 KB
EEPROM1 KB
Flash Memory32 KB of which 0.5 KB used by bootloader
Clock Speed16 MHz
Operating Voltage5V
Input Voltage

7-12V

Input Voltage (limit)

6-20V


Package included:

1 x Arduino UNO R3 Compatible Development Board



Write a review

Note: HTML is not translated!
Bad Good
Technical
Microcontroller

ATmega328

Analog I/O Pins

6

Clock Speed

16 MHz

Digital I/O Pins

14 (of which 6 provide PWM output)

EEPROM

1 KB

Flash Memory

32 KB of which 0.5 KB used by bootloader

Input Voltage

7-12V

Operating Voltage

5V

SRAM

2 KB
