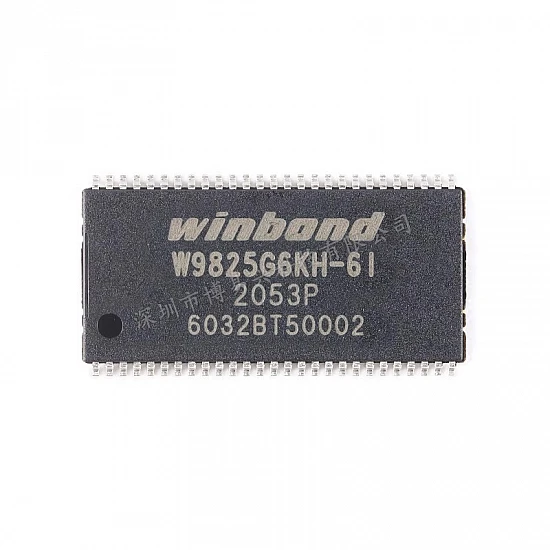

Winbond W9825G6KH-6I 256M-bit SDRAM Memory Chip TSOPII-54

The Winbond W9825G6KH-6I is a high-performance 256M-bit (16M x 16-bit) SDRAM memory chip designed for embedded systems and digital electronics requiring large data bandwidth and reliable memory access. Operating at 3.3V, it offers fast access times and efficient data transfer, making it ideal for multimedia devices, routers, industrial controllers, and embedded processors. Its TSOP-II-54 package ensures compact design compatibility and reliable soldering on PCBs.

This SDRAM chip supports single data rate operation with clock speeds up to 166 MHz, allowing stable performance across a wide range of applications. It provides full synchronous operation with all signals referenced to a positive edge clock, ensuring predictable timing and system reliability.

Features:

• 256 M-bit SDRAM organized as 16 M x 16 bits
• 3.3 V power supply for low-power operation
• High-speed clock frequency up to 166 MHz
• Fully synchronous with all signals referenced to the system clock
• CAS latency: 2, 3 supported
• Programmable burst length: 1, 2, 4, 8, and full page
• Industrial temperature grade: −40 °C to +85 °C
• TSOP-II-54 surface-mount package for compact PCB layout
• Ideal for routers, set-top boxes, printers, and microcontroller systems

Package Includes:

1 × Winbond W9825G6KH-6I 256M-bit SDRAM Memory Chip TSOPII-54
