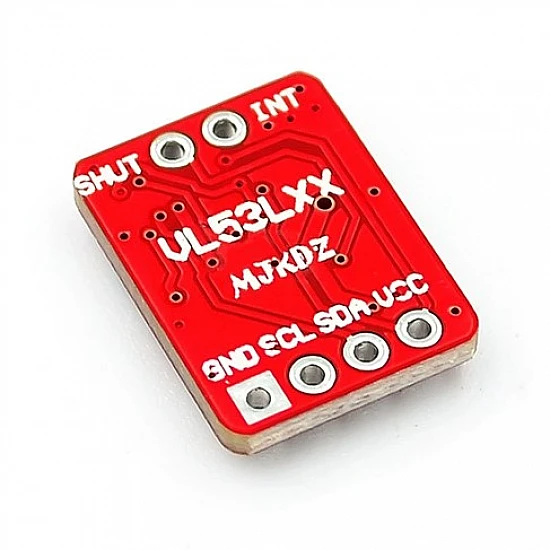

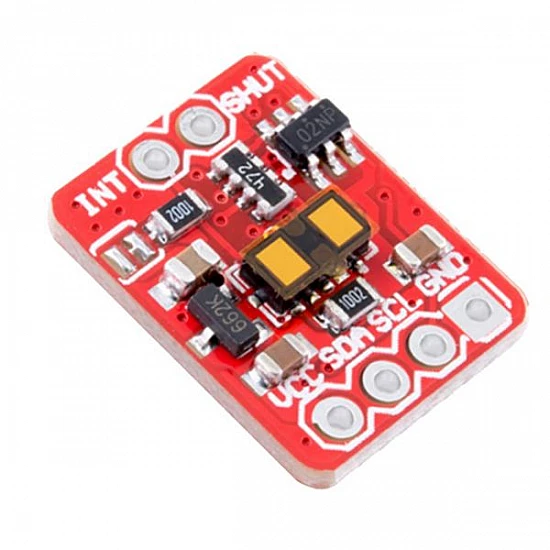

VL53L1X Laser Time of Flight Ranging Sensor Module

VL53L1X Laser Time of Flight Ranging Sensor Module
VL53L1X Laser Time of Flight Ranging Sensor Module
VL53L1X Laser Time of Flight Ranging Sensor Module
VL53L1X Laser Time of Flight Ranging Sensor Module
VL53L1X Laser Time of Flight Ranging Sensor Module
VL53L1X Laser Time of Flight Ranging Sensor Module
VL53L1X Laser Time of Flight Ranging Sensor Module
₹989

(inc GST)

  • Stock: In Stock
  • ₹9 FlyRobo Cashback.
  • SKU: FR-01-174
    5 or more ₹898
    15 or more ₹847

VL53L1X Laser ToF Flight Time Ranging Sensor Module can be used for easy integration into your devices and basic gesture detection applications. VL53L1X is an advanced time-of-flight (ToF) laser-ranging sensor that is a miniature ToF sensor with an accurate measurement range of up to 4 meters and a fast measurement frequency of up to 50 Hz. It contains a tiny invisible laser source and a matching sensor. It can detect the "time of flight", or how long the light has taken to bounce back to the sensor.

Features:

  • Distance measurement is up to 400 cm.
  • Single-Photon Avalanche Diode(SPAD) receiving array with integrated lens.
  • Fast and accurate distance measurement
  • The ranging Frequency is up to 50Hz

Package Includes:

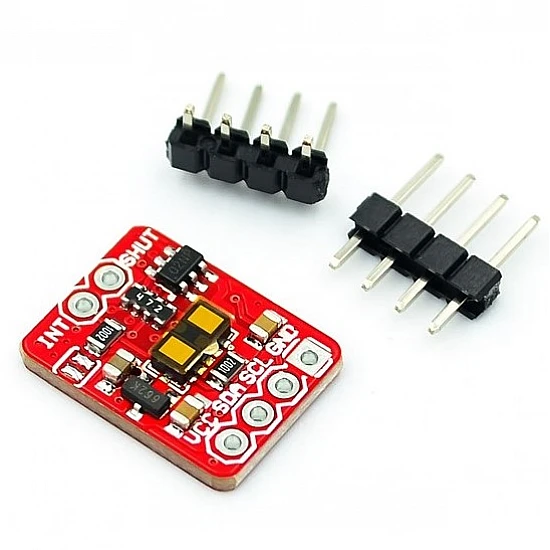

1 x VL53L1X Laser Time of Flight Ranging Sensor Module.

Technical
Model

VL53L1X

Communication Interface

I2C

Distance Measuring Range

4 Meter

Emitter

940 nm invisible laser (Class1)

Voltage

3.3 - 5V

Length

16 mm

Height

3 mm

Width

12 mm
